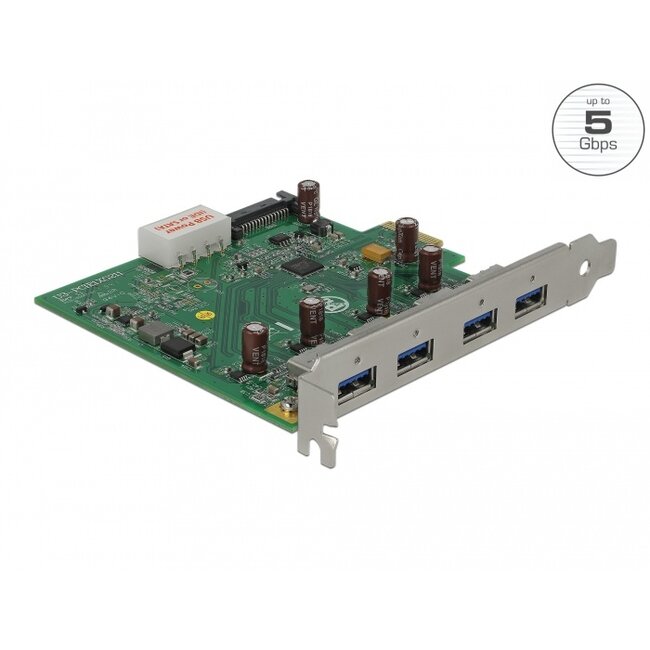

The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected.
Specification• IOI item number: U3-PCIE1XG211-13
• Connectors:
external:
4 x USB 3.0 Type-A female - Battery Charging specification BC1.2
internal:
1 x PCI Express x1, V2.0
1 x SATA 15 pin power connector
1 x 4 pin power connector
• Chipset: Fresco Logic FL1100
• Data transfer rate up to:
SuperSpeed 5 Gb/s,
Hi-Speed 480 Mb/s,
Full-Speed 12 Mb/s,
Low-Speed 1.5 Mb/s
• Supports xHCI specifications V1.0
• Supports UASP
• Downwards compatible to USB 2.0 and USB 1.1
• USB ports with screw holes (M2 x 0,4)
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express slot
Package content
• PCI Express card USB 3.0
• Driver CD
