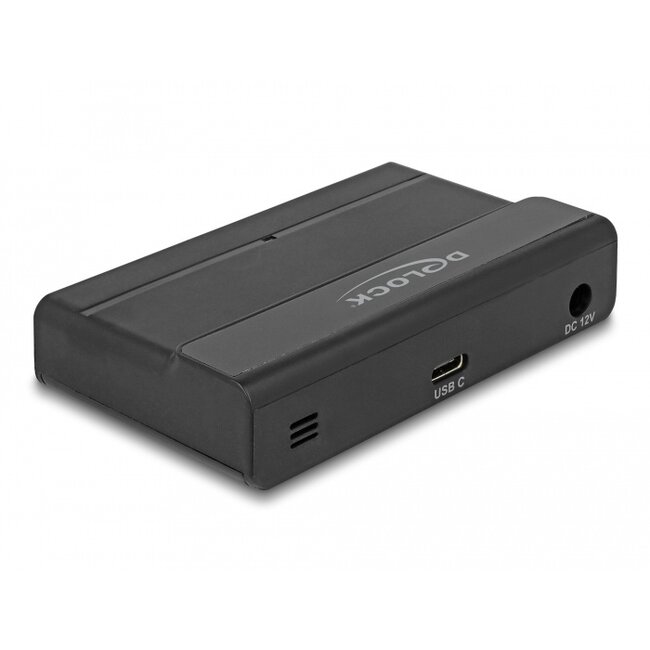

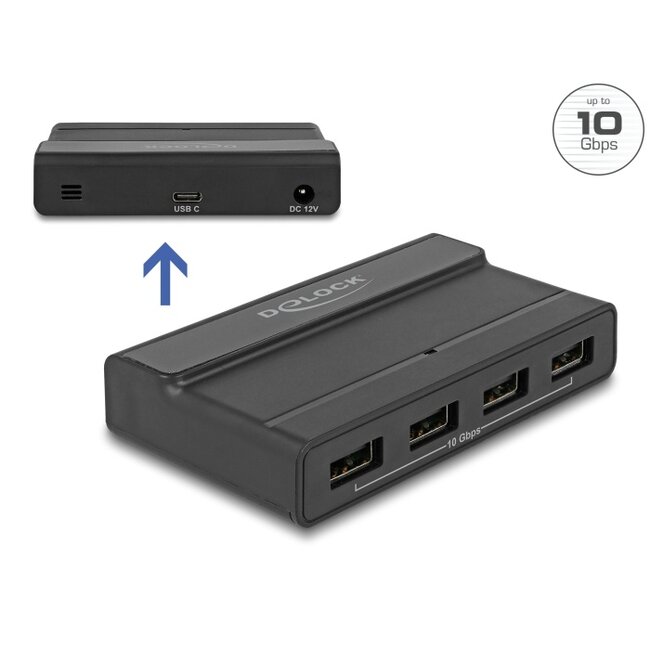

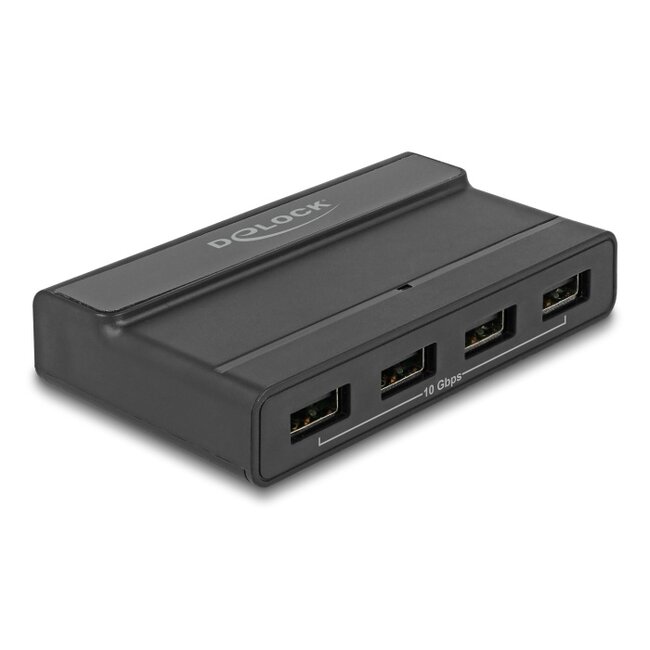

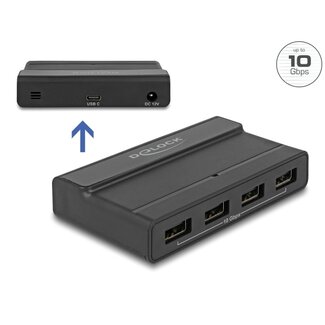

This USB hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by four USB Type-A connectors.
Hub with power supply
The included power supply provides power to the connected devices on the front. The hub can also be used without a power supply.

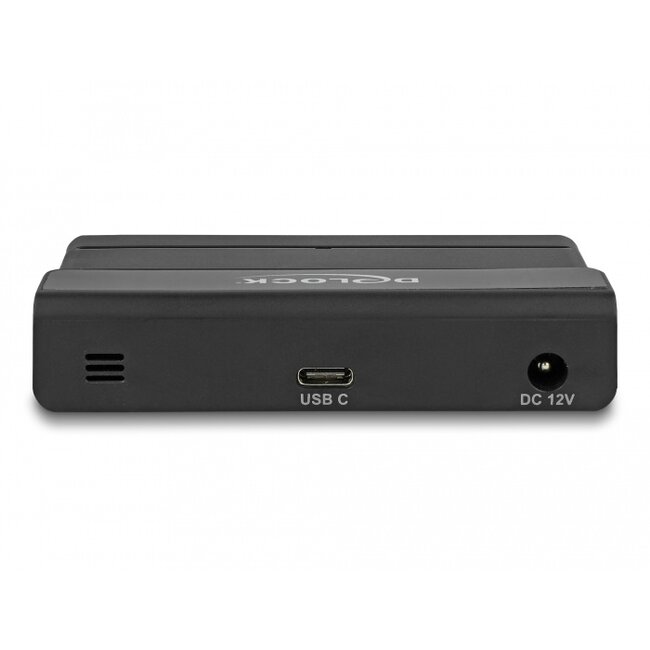

• Connectors:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
4 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
1 x DC 12 V power connector
• Chipset: VIA VL822
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• 1 x LED indicator
• Colour: black
• Dimensions (LxWxH): ca. 92 x 54 x 19 mm
• Plug & Play
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 12 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.5 mm
outside: ø ca. 5.5 mm
length: ca. 10 mm
• Chrome OS
• Linux Kernel 4.6 or above
• Mac OS 10.13.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

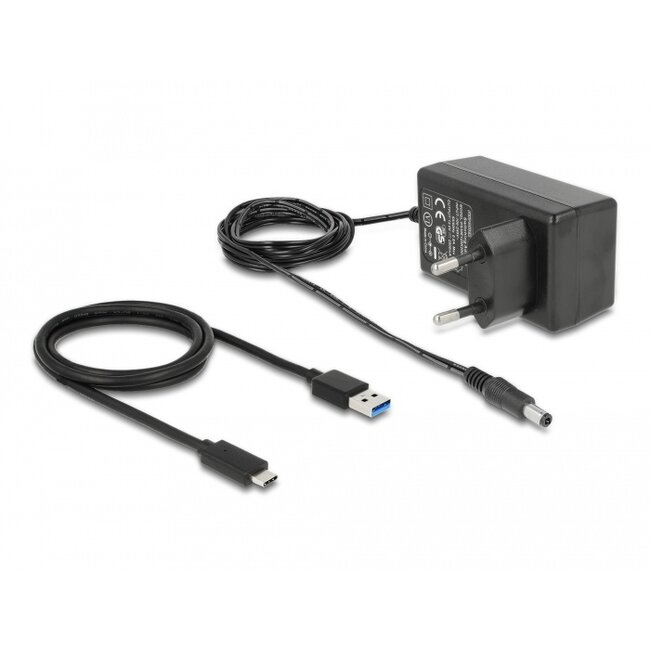

Package content
• Hub USB
• 1 x Cable USB A male to USB-C™ male, length ca. 1 m
• Power supply
• User manual
