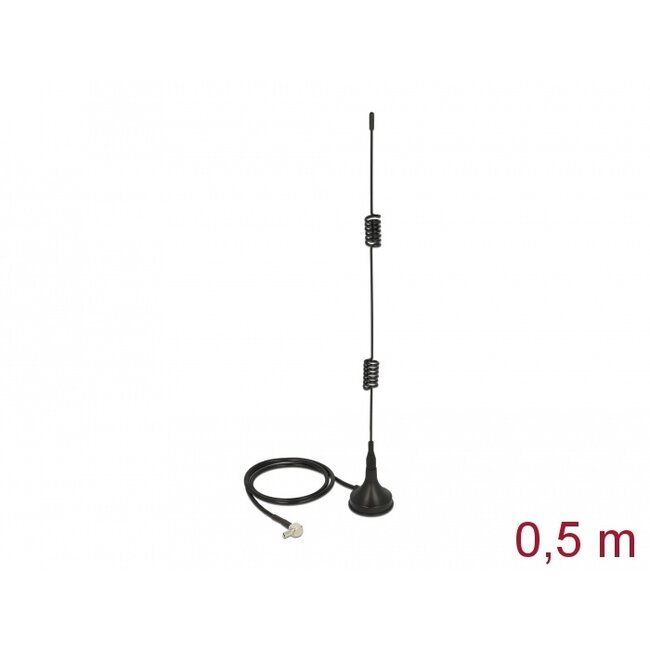

This antenna by Delock allows the usage of different LTE bands indoors and outdoors. It is completely compatible to GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, TETRA and LoRa .
Specification• Connector: 1 x TS-9 plug 90°
• Frequency range:
690 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, LTE, ZigBee, DECT, Z-Wave, NB-IoT, WLAN, Bluetooth, ISM, DECT, LoRa
• Antenna gain: 2 - 3 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 50 cm
• Dimensions (LxD): ca. 265 x 10 mm
• Diameter magnetic base: ca. 30.0 mm
• Device with one free TS-9 port
Package content
• Antenna
