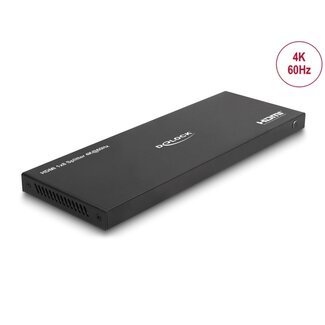

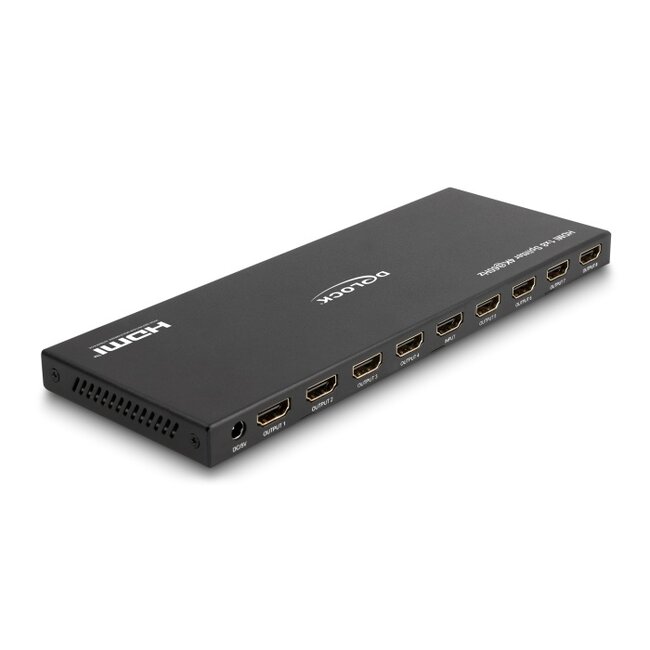

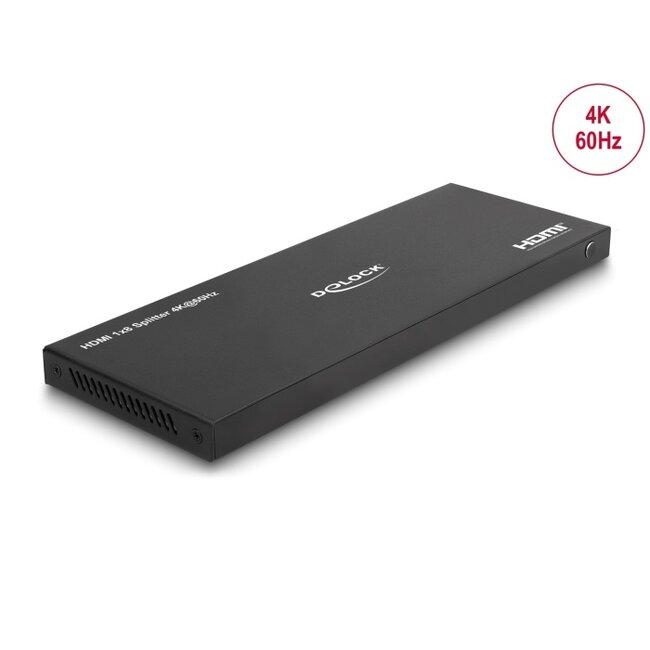

This splitter by Delock receives an HDMI signal from a PC or laptop and splits it to eight connected displays. Thereby one HDMI connection can be used to operate eight HDMI monitors.
Downscaler
If a monitor does not support the high resolution, the image can be scaled from 4K to 1080p with the integrated downscaler.
• Connectors:
Input:
1 x HDMI-A female
1 x 5 V DC jack 5.5 x 2.1 mm
Output:
8 x HDMI-A female
• Supports EDID management
• High Speed HDMI specification
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Function: Mirrored
• Transmission of audio and video signals
• Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Video bandwidth up to 600 MHz / 6 Gbps per channel, max. 18 Gbps
• Power consumption: max. 2.5 W
• Robust metal housing
• Colour: black
• Dimensions (LxWxH): ca. 228 x 84 x 15 mm

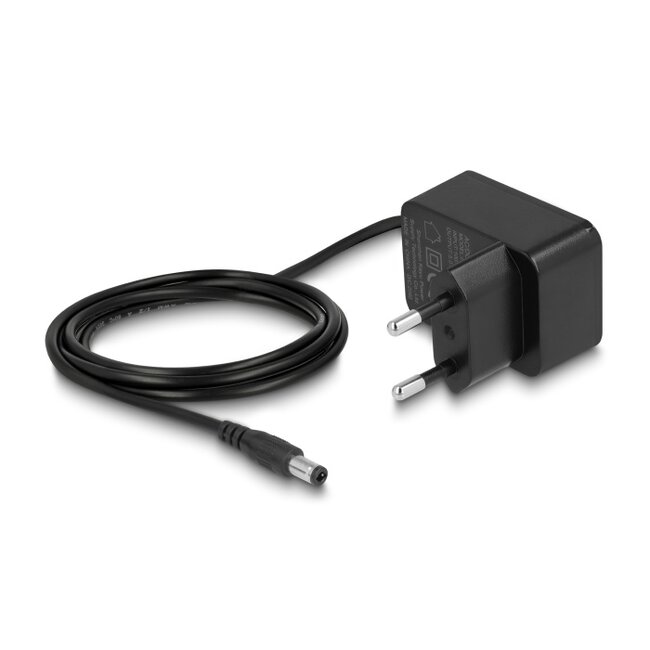

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.4 A
• Output: 5.0 V / 2.0 A / 10.0 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm
• HDMI cable
Package content
• HDMI Splitter
• Power supply
• User manual
