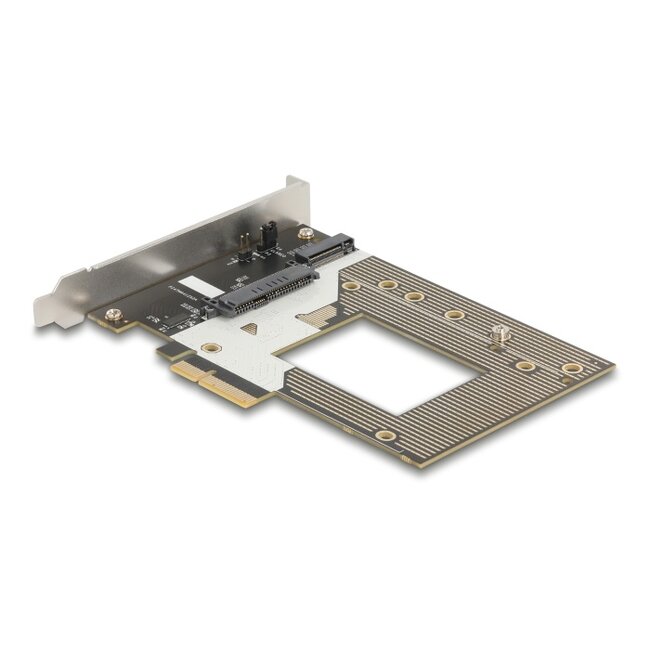

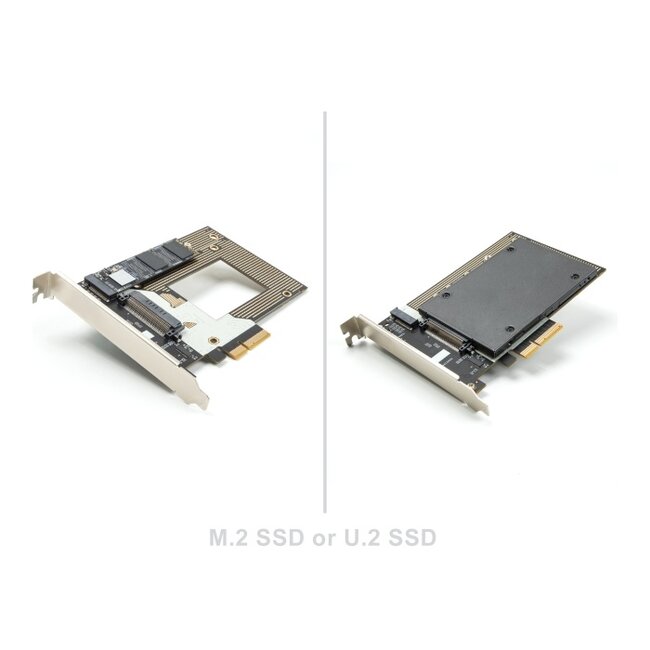

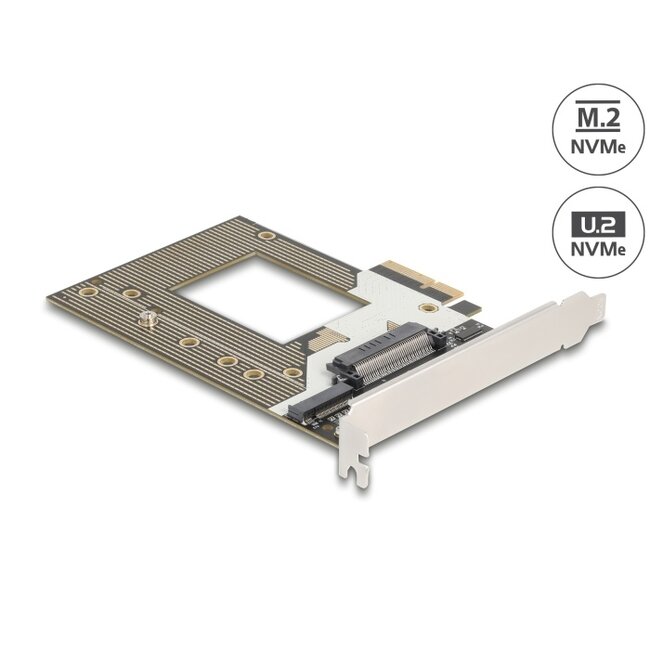

This PCI Express card by Delock expands the PC by one M.2 or U.2 slot. One M.2 module in 22110, 2280, 2260, 2242 or 2230 format or an U.2 SSD in 2.5″ format can be connected to the card.
Specification• Connectors:

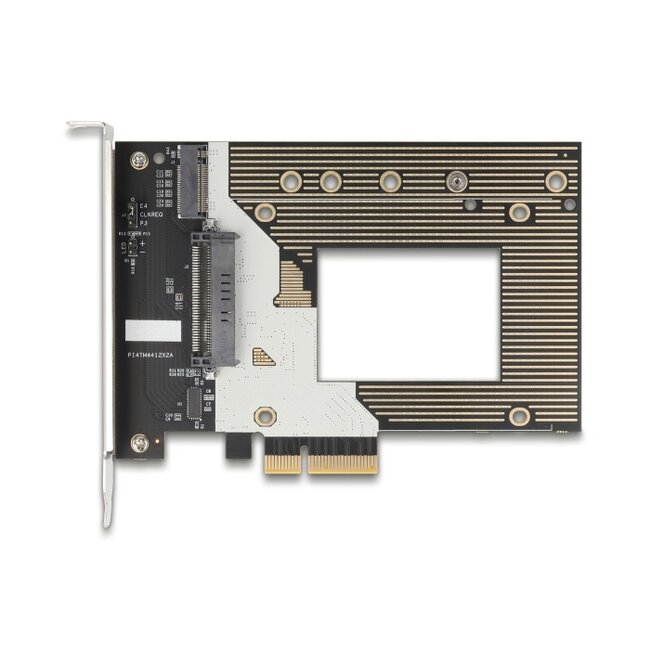

1 x M.2 key M slot
1 x U.2 SFF-8639 female
1 x PCI Express x4, V4.0
1 x 2 pin LED pin header male
• Interface: PCIe / NVMe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• Supports TRIM
• It can only be used one memory, not both at the same time
• 1 x jumper for CLKREQ selection (pin E4 or P3)
• PCI Express card

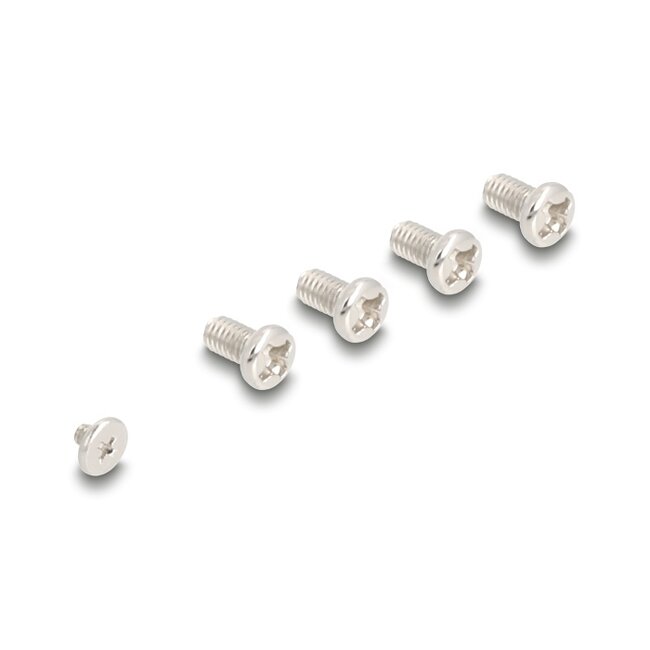

• Screws
• User manual
