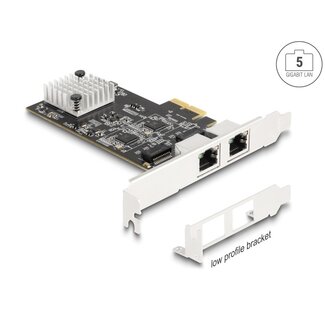

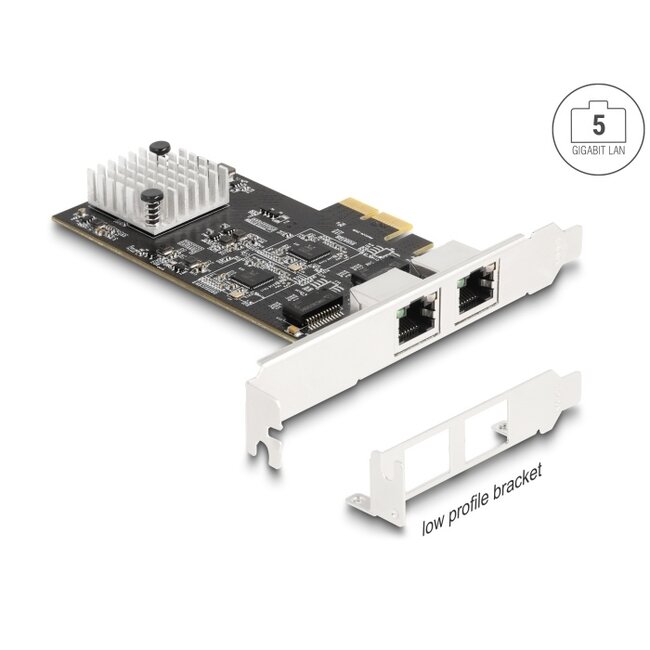

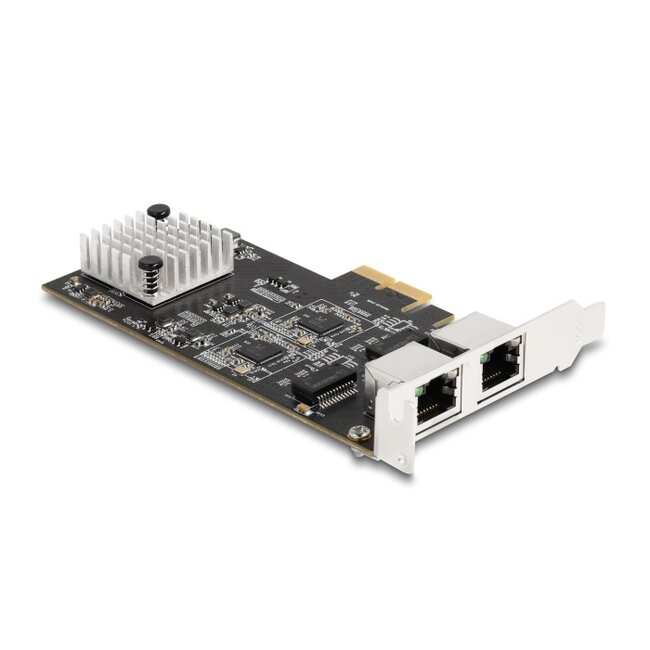

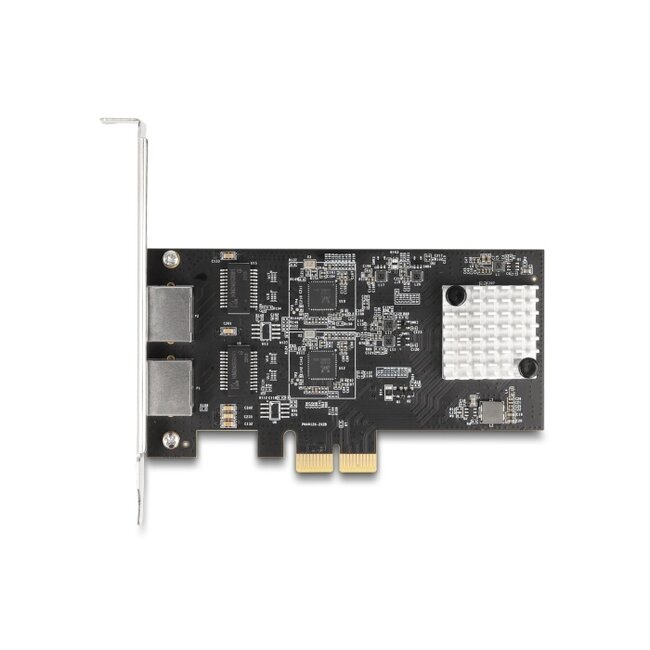

The PCI Express card by Delock offers two network ports with a data transfer rate up to 5 Gbps.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps, 2,5 Gbps and 5 Gbps with conventional networking cables. The best possible transmission rate is set automatically.
• Connectors:
external: 2 x 5 Gigabit LAN RJ45 jack
internal: 1 x PCI Express x2, V3.0
• Chipset: Realtek RTL8126
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1000 Mbps
NBASE-T with up to 2.5 Gbps and 5 Gbps
PCI Express x1 up to 8 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 16k Jumbo Frames
• LED indicator for link and activity
• Windows 10/10-64/11
• PC with one free PCI Express slot
Package content
• PCI Express card
• Low profile bracket
• User manual
