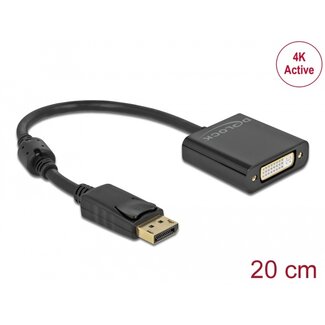

This adapter by Delock enables the connection of an DVI monitor to the system via a free DisplayPort interface. The adapter supports a resolution up to 4K Ultra HD at 30 Hz and is backward compatible to Full-HD 1080p. The adapter offers an active conversion, thus it is also suitable for graphics cards that are not capable of outputting DP++ signals.
Specification• Connectors:
1 x DisplayPort male >
1 x DVI 24+5 female with nuts
• Chipset: Parade PS171
• DVI-D (Single Link), VGA not wired
• DisplayPort 1.2 specification
• Active converter, for graphics cards with DP and DP++ output
• Resolution:
DVI up to 1920 x 1080 @ 60 Hz (depending on the system and the connected
hardware)
HDMI with the help of an adapter cable up to 3840 x 2160 @ 30 Hz (depending on the
system and the connected hardware)
• Supports HDCP 1.3
• Supports Eyefinity
• Connectors: gold-plated
• 1 x ferrite core
• Cable length without connectors: ca. 20 cm
• Colour: black
• OS independent, no driver installation necessary
• A free DisplayPort female port
Package content
• Adapter DisplayPort to DVI
