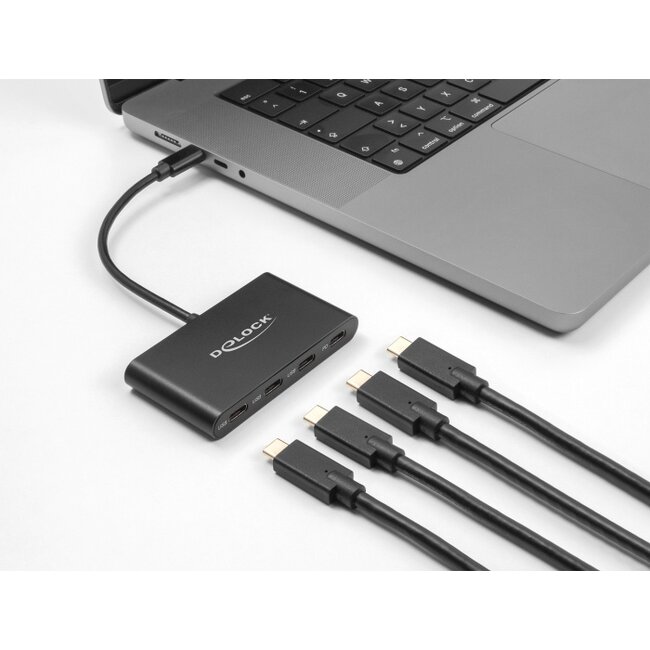

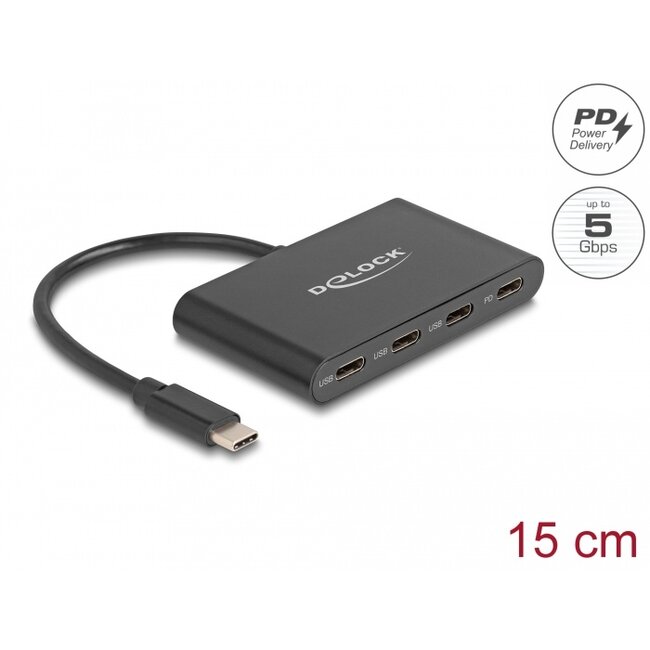

The USB hub by Delock is the mobile companion for laptops or tablets with USB Type-C™ connection. Up to 3 USB Type-C™ devices can be connected to the hub.
USB Power Delivery (USB PD 3.0) support up to 100 watt
The hub has a USB Type-C™ Power Delivery port to connect the laptop or tablet to charge it. The hub can also be used without a power supply.
Due to its small dimensions and its sturdy housing, this Delock Hub is particularly suitable for travelling. It can simply be packed into the bag together with the laptop or tablet and used as needed.
Note
DisplayPort Alternate Mode (DP Alt Mode) is not supported, so no video signals are transmitted and no monitors can be connected.
• Connectors:
1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ male
3 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) USB Type-C™ female
1 x USB Type-C™ Power Delivery female
• Chipset: Renesas D720210, VIA VL102
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)
• Electrical power in total: max. 10 watt (5 V / 2 A)
• Plug & Play
• Housing material: aluminium
• Colour: black
• Cable length without connectors: ca. 15 cm
• Dimensions (LxWxH): ca. 77 x 43 x 11 mm
• Linux Kernel 5.11 or above
• Mac OS 12.3.1 or above
• Windows 8.1/8.1-64/10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• PC or laptop with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
• USB hub
• User manual
