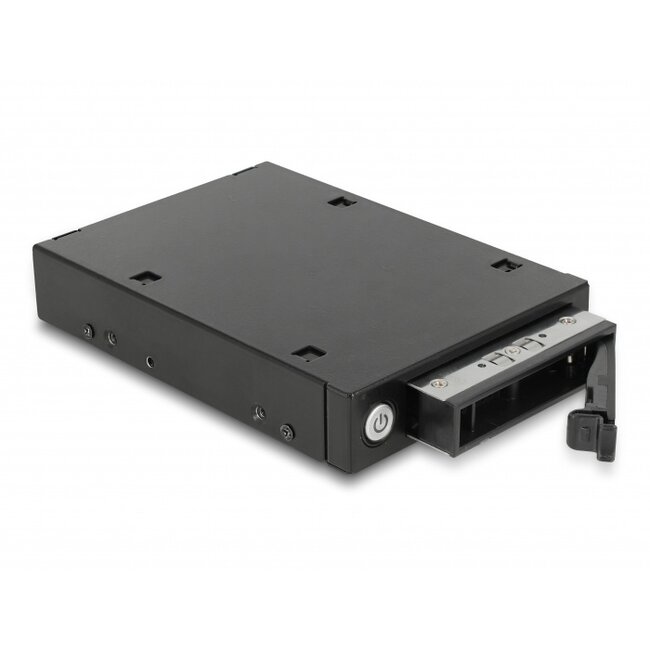

This solid metal mobile rack by Delock can be installed into a free 3.5″ bay of a PC.
U.2 SFF-8639 interface also suitable for SATA and SAS

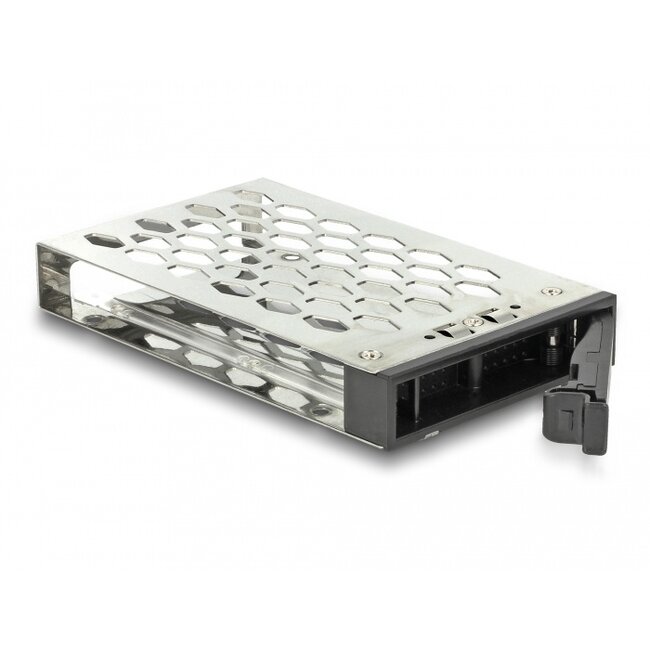

A 2.5″ U.2 SSD can be mounted in the tray and slid into the rack.

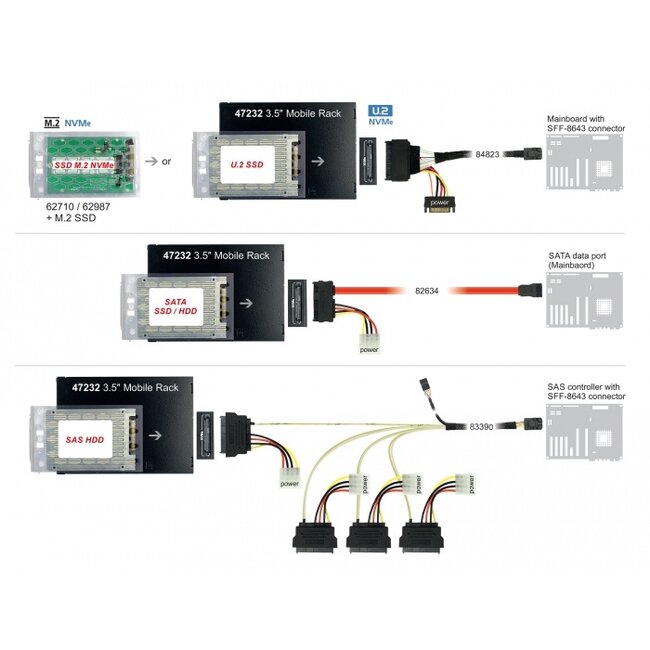

A SATA or SAS HDD or SSD can also be installed. Depending on which memory type is installed, the appropriate cable must be connected to the backside and connected to the system. This is possible because the SFF-8639 port allows the connection of a SAS 29 pin or SATA cable.
The hot swap function allows the exchange of the hard disk drive during operation.
Tray with key lock
The mobile rack is equipped with a key lock to prevent unauthorised access.
• Connectors:
internal:
1 x U.2 SFF-8639 female
external:
1 x U.2 SFF-8639 male
• Suitable for 2.5″ U.2 / SATA / SAS HDD / SSD:
HDD height up to 15 mm
supports 5 V SATA / SAS HDD / SSD
supports 12 V SAS HDD / SSD
• Data transfer rate:
SATA up to 6 Gb/s
SAS up to 12 Gb/s
NVMe up to 32 Gb/s

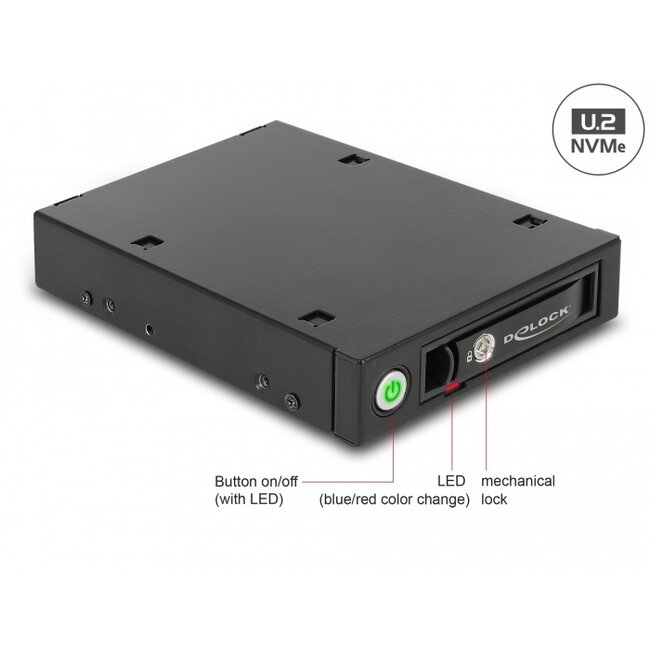

• 1 x On / Off switch
• Key lock
• Hot Swap
• Linux Kernel 3.19 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• Windows Server 2016
• PC with one free 3.5″ bay
• A free U.2 port or
• A free SATA / SAS port
Package content
• 3.5″ mobile rack
• 2.5″ mobile rack inner tray
• 2 x keys
• 6 x rack screws
• 4 x hard drive screws
• User manual
