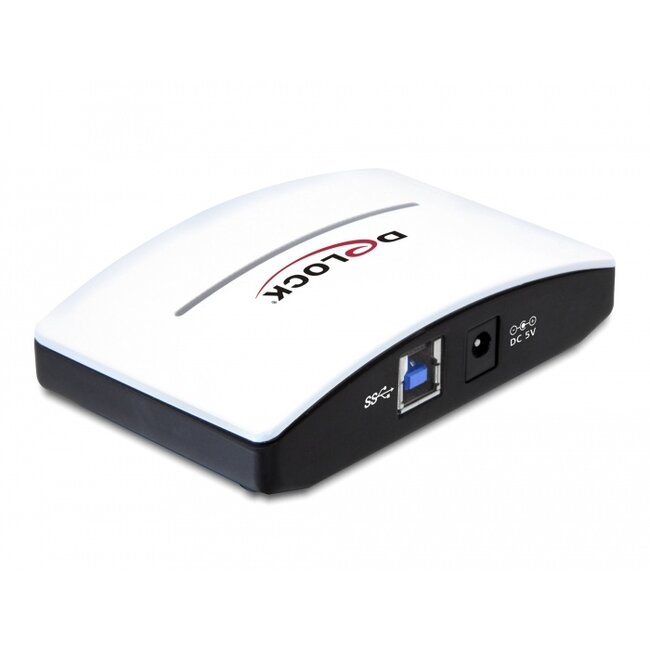

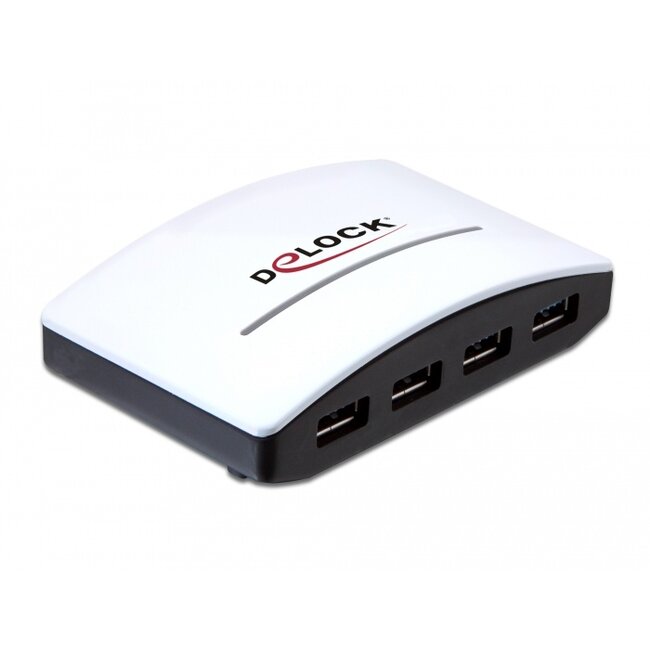

This USB Hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by three USB Type-A connectors. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected.

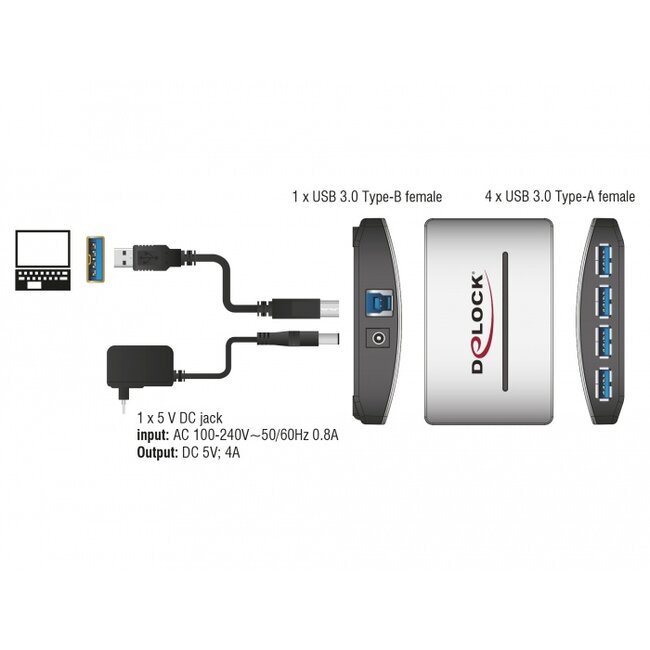

Specification• Connectors:
1 x USB 3.0 Type-B female
4 x USB 3.0 Type-A female
1 x 5 V DC jack
• Data transfer rate up to:
SuperSpeed 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Dimensions (LxWxH): ca. 100 x 63 x 25 mm
• Use as self-powered (with power supply) or bus-powered (without power supply)
• Plug & Play

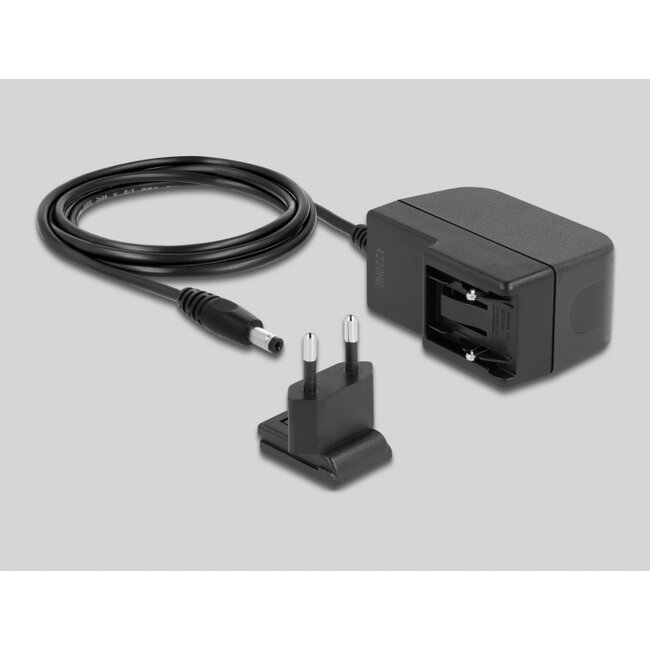

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.8 A
• Output: 5 V / 4 A
• Ground outside, plus inside

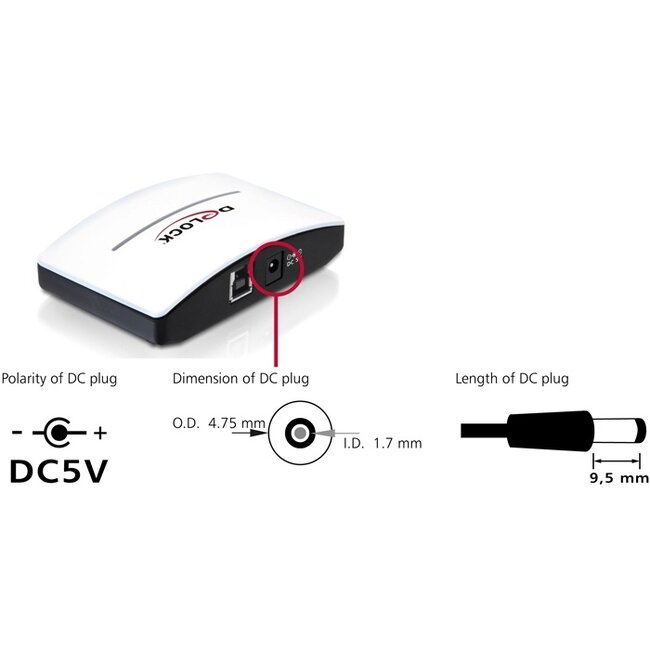

• Dimensions:
inside: ø ca. 1.7 mm
outside: ø ca. 4.75 mm
length: ca. 9.5 mm
• Linux Kernel 2.6 or above
• Mac OS 10.5 or above
• Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-A port
Package content
• Hub USB 3.0

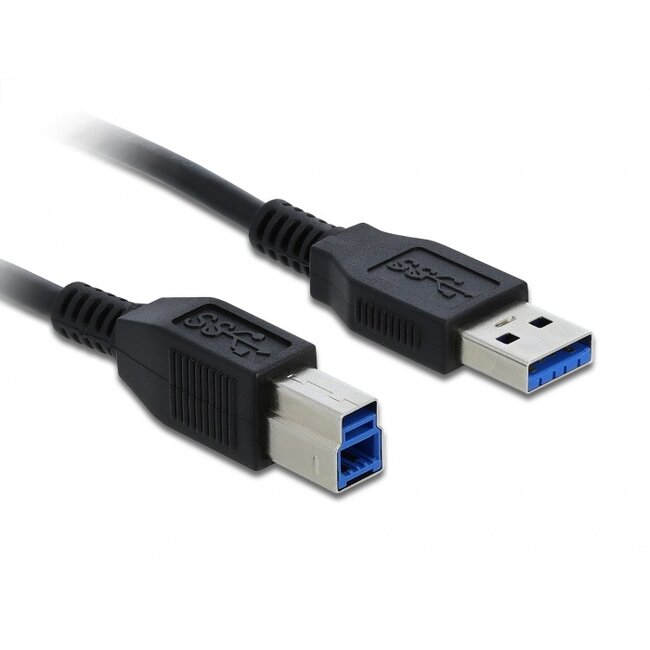

• USB 3.0 Type-B to Type-A cable, length ca. 1 m
• External power supply
• User manual
