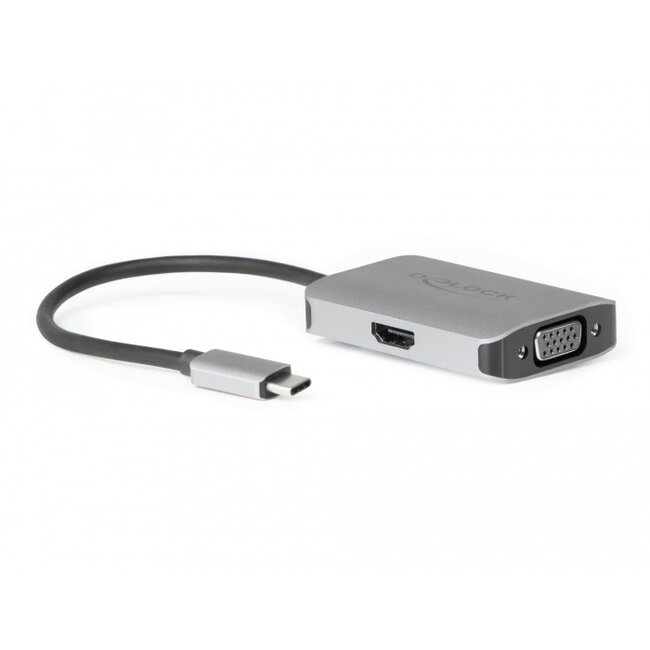

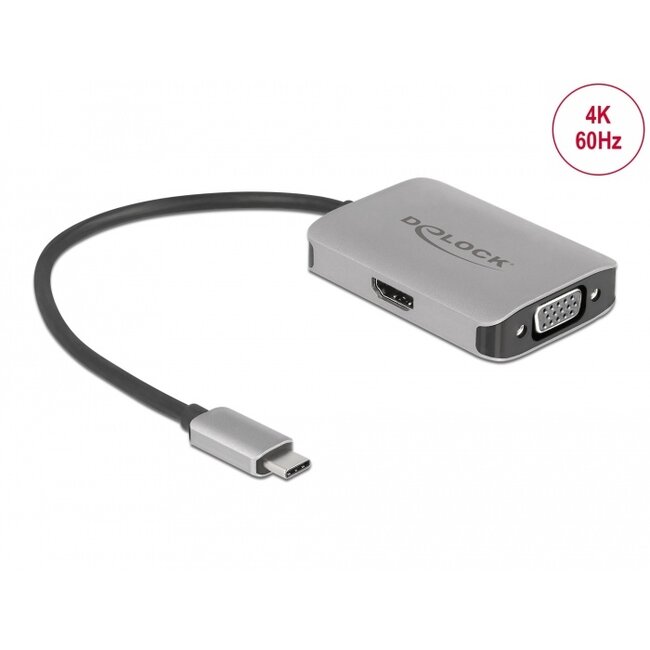

This splitter by Delock is suitable for the connection of a VGA monitor and an HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Two monitors can be operated simultaneously at the outputs, the same image is displayed on all ports.

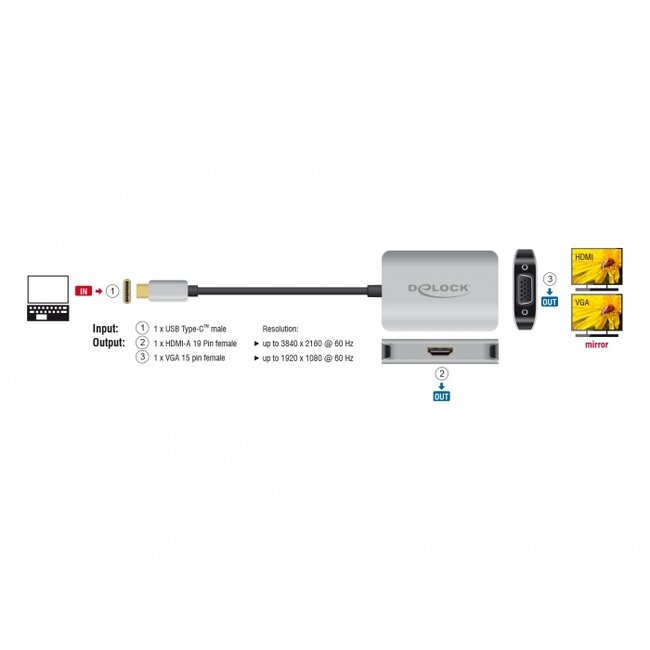

Specification• Connectors:
Input:
1 x USB Type-C™ male
Output:
1 x HDMI-A 19 pin female
1 x VGA 15 pin female
• VGA port with nuts
• DisplayPort 1.2 specification
• Resolution:
HDMI up to 3840 x 2160 @ 60 Hz
VGA up to 1920 x 1080 @ 60 Hz
(depending on the system and the connected hardware)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Function: Mirrored
• USB bus powered
• Cable length incl. connectors: ca. 20 cm
• Dimensions (LxWxH): ca. 65 x 46 x 14 mm
• Windows 8.1/8.1-64/10/10-64
• Linux Kernel 5.4 or above
• Mac OS 10.15.6 or above
• PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
or
• PC or laptop with a free Thunderbolt™ 3 port
Package content
• USB-C™ Splitter (DP Alt Mode)
• User manual
