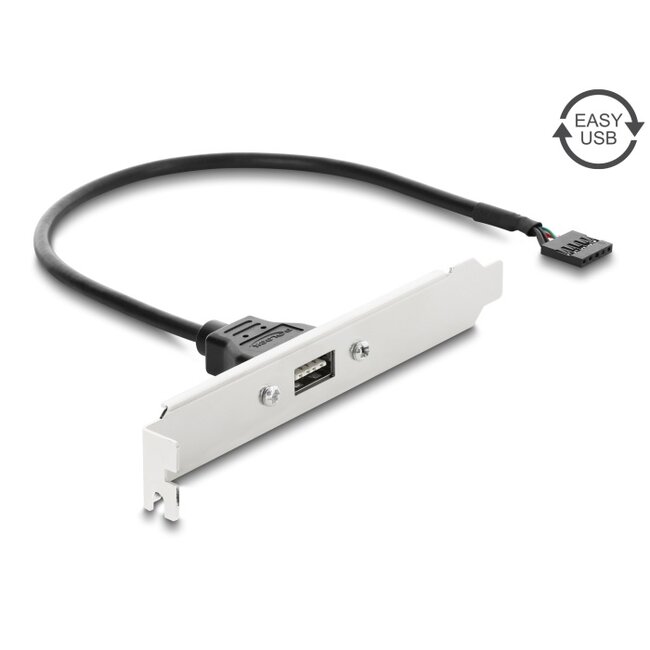

This slot bracket by Delock expands the PC by one USB 2.0 Type-A female port. The cable of the slot bracket can be connected internally to the motherboard with a 5 pin USB 2.0 pin header male. Thus, the internal connection will be lead outside, in order to connect devices with USB Type-A connector to the computer.
User-friendly reversible EASY USB female port
The EASY USB socket is twist-proof and can be used on both sides, so there is no need to pay attention to the correct top or bottom side when inserting a plug.
• Connectors:
internal:
1 x 5 pin pin header female
external:
1 x USB 2.0 Type-A reversible female
• USB Type-A female usable in both directions
• Pitch: 2.54 mm
• Screw type: #4-40 UNC
• Cable gauge:
28 AWG data line
24 AWG power line
• Cable diameter: ca. 4.3 mm
• Gold-plated connector
• Cable double shielded
• Voltage: max. 5 V
• Current: max. 500 mA
• Data transfer rate up to 480 Mbps
• Cable colour: black
• Cable length: ca. 30 cm
• PC with one free slot
• Motherboard with a free 5 pin USB 2.0 pin header male
Package content
• Slot bracket
