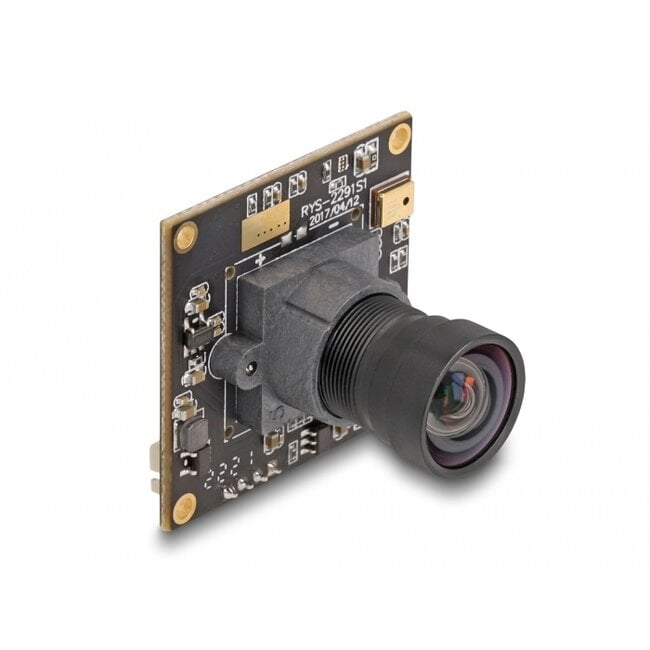

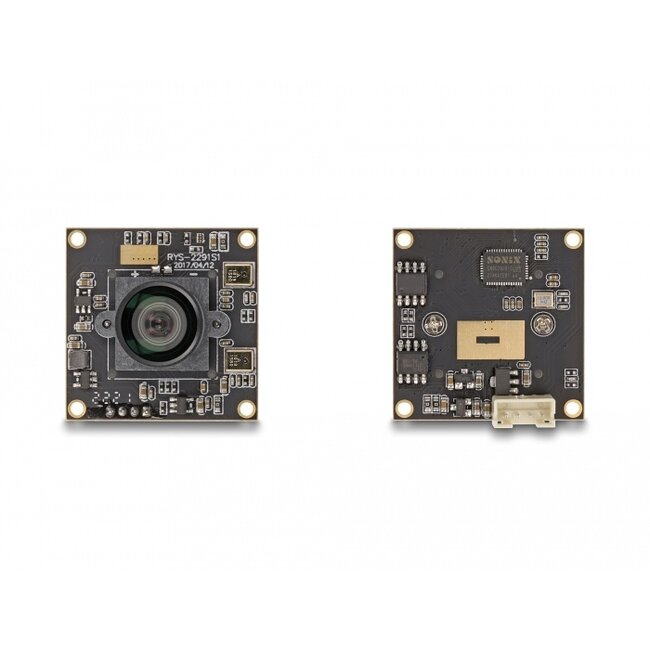

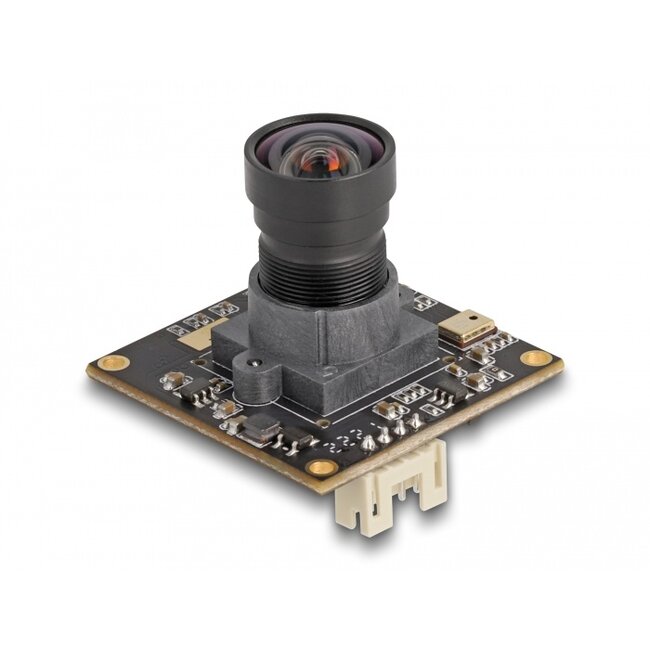

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.
WDR - Wide Dynamic Range
It allows the adjustment of the brightest and darkest parts of the image to improve the quality of the still image.
• Connector: 1 x 4 pin USB 2.0 pin header female SMT, pitch 2.0 mm
• Resolution: 2.1 megapixel
• Sensor: IMX291LQR-C Sony® Starvis™
• With optical IR filter
• 2 x Microphone
• Maximum resolution: 1080p @ 30 fps (1920 x 1080)
• Current consumption: ca. 100 mA
• Operating voltage: 5 V DC
• Operating temperature: 20 °C ~ 70 °C
• Operating humidity: ≤ 80 %
• Sensor size: 1/2.8″
• Sensitivity: 1 V / lx s
• Signal-to-noise ratio (SNR): ca. 29.4 dB
• Dynamic range: 74 dB
• Automatic white balance (AWB)
• Fix focus: 0.3 m - infinite
• Aperture: F/2.7
• Lens thread: M12
• Frame rates: all resolutions MJPG 30 fps
• Dimensions (LxWxH): ca. 32.0 x 32.0 x 22.3 mm
• Device with UVC support
• Windows 10/10-64/11
• DirectX 9.0c or above
• Linux Kernel 2.6.15 and above with Video4Linux
Package content
• Camera Module
