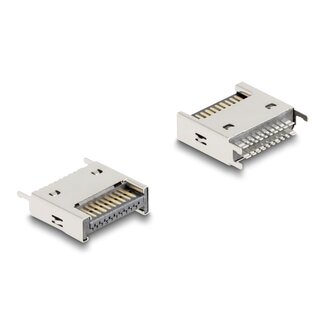

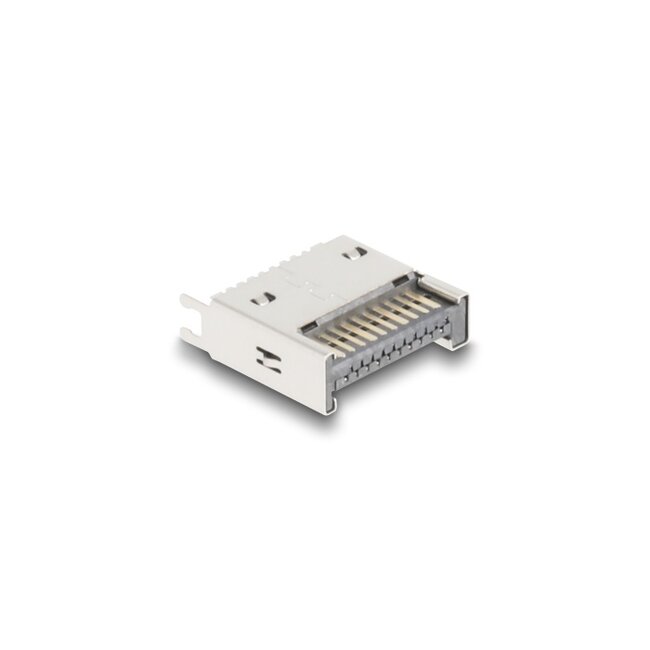

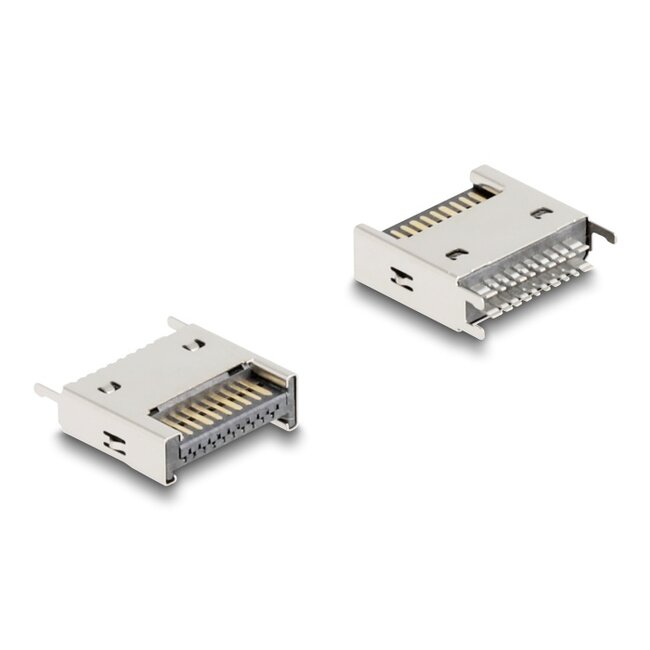

This USB connector by Delock can be used for SMT solder mounting on a PCB board.
Specification• Connectors:
1 x USB type-E Key A 20 pin male straight
1 x 20 soldering pin
• For SMT PCB mounting
• Data transfer rate up to 10 Gbps
• Rated current: 0.5 A
• Rated voltage: 300 V
• Contact surface: selectively gold-plated
• Operating temperature: -55 °C ~ 85 °C
• Flammability class: UL 94V-0
• Dimensions (LxWxH): ca. 11.0 x 10.1 x 3.7 mm
• USB connector
