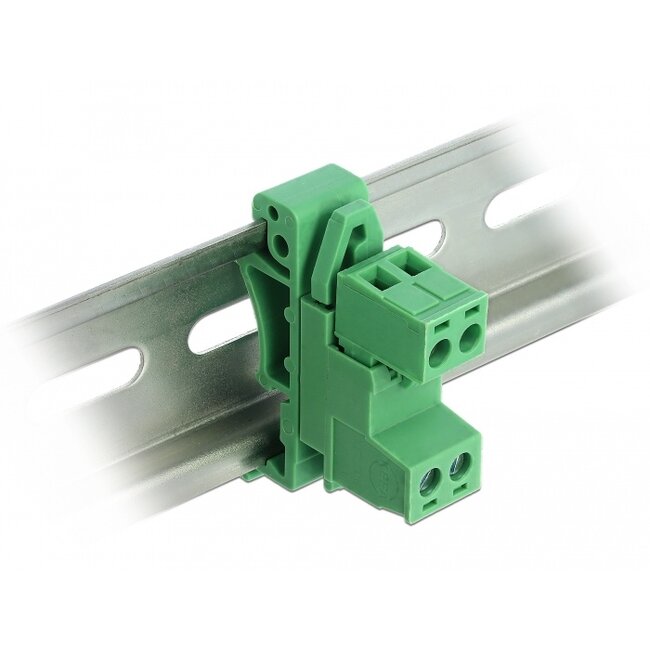

This terminal block set by Delock is suitable for the mounting on a DIN rail. Thus data or power cables can be connected via the terminal block.
DIN Rail Mounting
This terminal block set can be fixed on a DIN rail with a width of 35 mm.

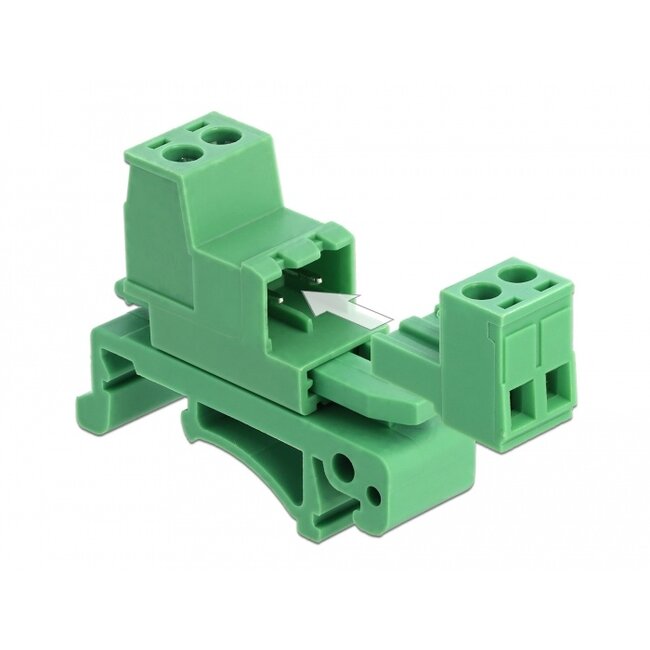

Terminal Block Set for DIN rail
• Connectors:
Terminal block:
1 x 2 pin male
1 x 2 pin screw terminal
Connection terminal:
1 x 2 pin female
1 x 2 pin screw terminal
• Pitch: 5.08 mm
• Environmental temperature: -40 °C ~ 105 °C
• Useable for a cable gauge range from 24 to 12 AWG
• Withstanding voltage: AC 2500 V / 1 min
• Rated voltage according to: UL: 300 V, IEC: 320 V
• Rated current according to: UL: 10 A, IEC: 15 A
• DIN rail mounting: 35 mm
• Material: plastic
• Colour: green
• Dimensions (LxWxH): ca. 42.50 x 32.45 x 12.00 mm
• Terminal block
• Connection terminal
• DIN rail clip
