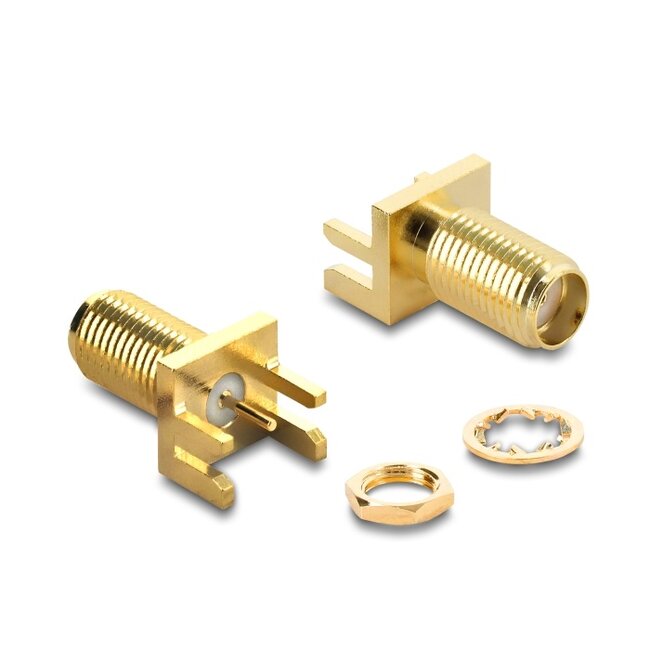

The SMA coaxial jack by Delock is suitable for solder mounting on circuit board edges with a maximum thickness of 1.7 mm. The gold coating prevents corrosion and ensures an optimal connection.
Specification• Connector: 1 x SMA jack
• Frequency range: DC - 6 GHz
• Housing: brass gold plated
• Impedance: 50 Ohm
• VSWR: < 1.3
• Insulator: PTFE
• Insulation resistance: > 5000 MOhm
• Mating Cycles: > 500
• Mounting type: surface-mounting technology
• Soldering: 5 solder points
• Operating temperature: -65 °C ~ 165 °C
• Withstanding voltage: 1000 V / 50 Hz
• Insertion loss: < 0.1 dB / GHz
• Thread type: 1/4" - 36 UNS - 2A
• Thread length: 9 mm
• Dimensions (LxWxH): ca. 17.8 x 9.5 x 7.9 mm
• SMA Jack
• Nut
• 1 x serrated lock washer
