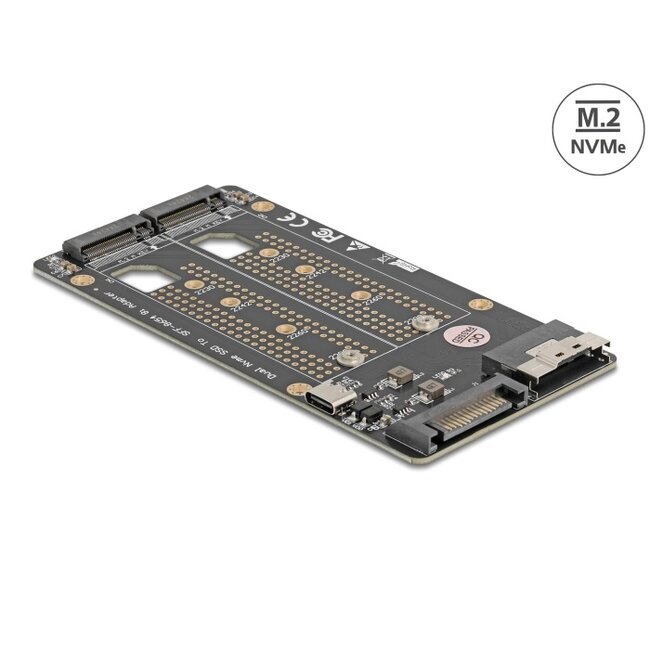

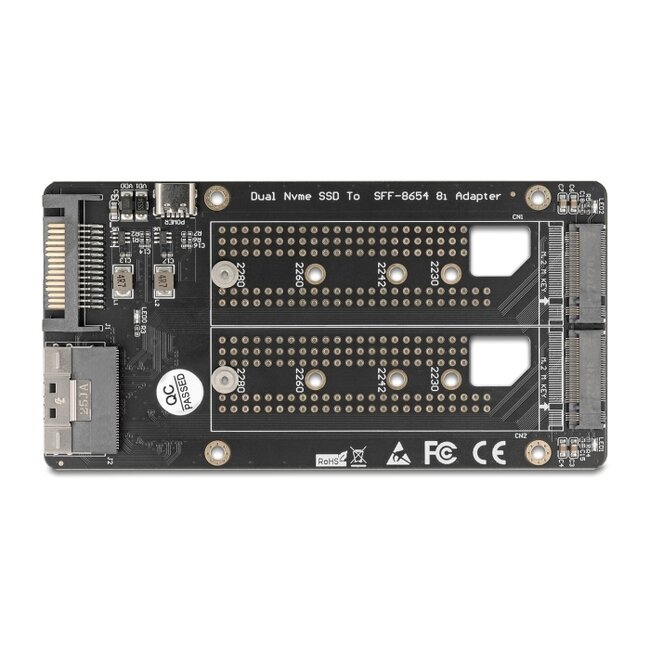

This converter by Delock enables the connection of two M.2 SSDs in 2280, 2260, 2242 and 2230 format with key M and operated simultaneously. The converter can be installed into the system through the SFF-8654 8i interface.
Please Note
Depending on the connection between the converter and the host system, the motherboard's PCIe bifurcation feature may be necessary.
• Connectors:
1 x Slim SAS SFF-8654 8i female
2 x M.2 key M slot
1 x USB Type-Câ„¢ female (power supply)
1 x SATA 15 pin power connector
• Interface: PCIe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe or SATA
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Power supply via SATA 15 pin plug or USB-C™ female
• LEDs for power and activity
• Supports PCI Express 4.0 protocol
• Supports NVM Express (NVMe)
• Dimensions (LxWxH): ca. 125 x 63 x 8 mm
• A free NVMe interface
Package content

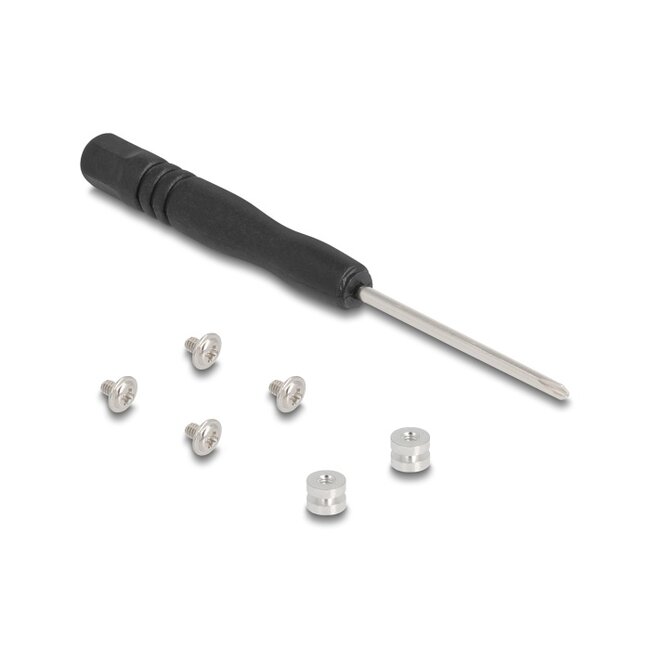

• Converter
• Mounting material
• Screwdriver
• User manual
