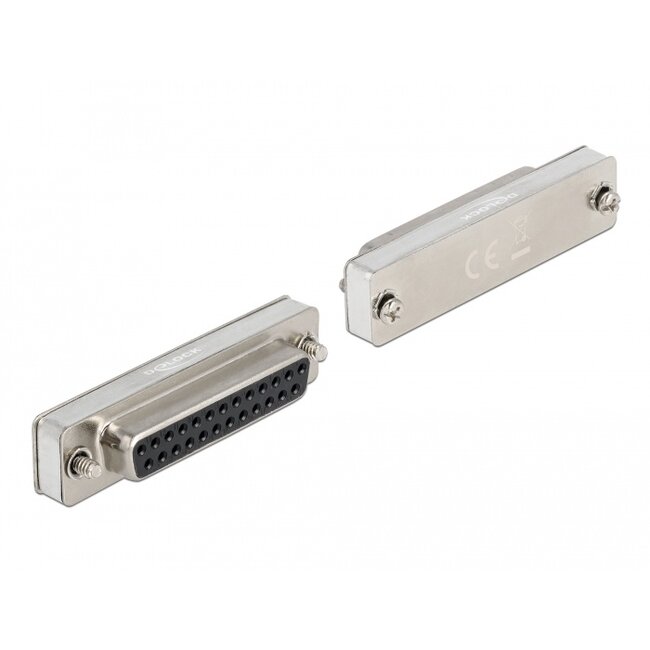

This serial RS-232/422/485 loopback socket by Delock is suitable for error and data analysis und for testing purposes at RS-232/422/485 lines.
Specification• Connector: 1 x Serial RS-232/422/485 DB25 female with screws

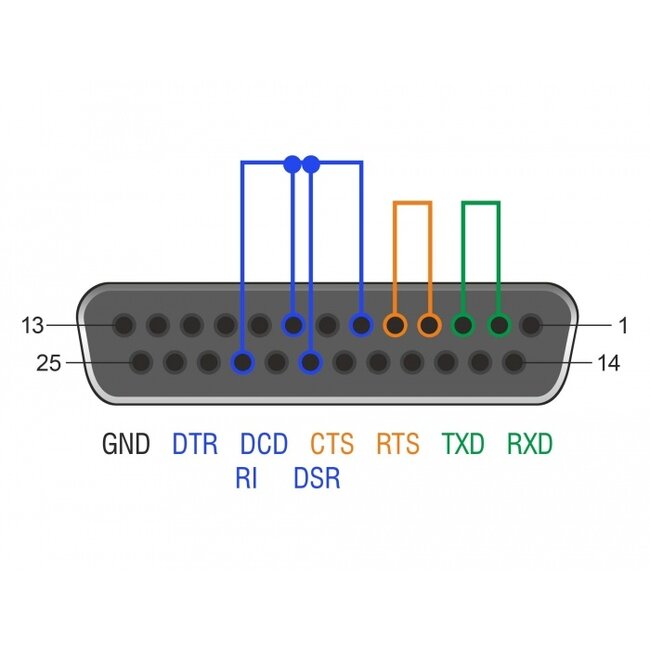

• Pinout:
RXD (2) - TXD (3)
RTS (4) - CTS (5)
DSR (6) - DCD (8) - DTR (20) - RI (22)
• Screw type: #4-40 UNC
• Colour: silver
• Dimensions (LxWxH): ca. 53.3 x 12.6 x 11.8 mm
• One free RS-232/422/485 DB25 interface
Package content
• RS-232/422/485 DB25 Loopback adapter
