The adapter by Delock expands a PC or laptop by one network interface via the USB Type-C™ interface. In addition, the adapter can also be operated on a Thunderbolt™ 3 interface.
With the small dimensions, the adapter is space-saving to transport and can be used practically everywhere.

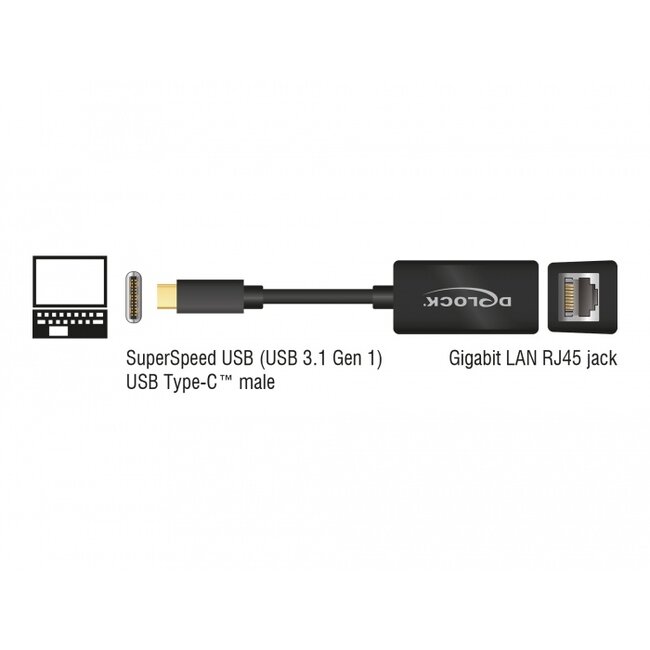

• Connectors:
1 x USB 5 Gbps USB Type-C™ male
1 x Gigabit LAN RJ45 jack
• Chipset: ASIX AX88179A
• SuperSpeed USB - 5 Gbps specification
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
• Compatible with:
IEEE 802.3: 10BASE-T
IEEE 802.3u: 100BASE-TX
IEEE 802.3ab: 1000BASE-T
• Supports Auto MDI-X (automatic detection of standard or crossover network cable)
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Support full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure
• Supports 4k Jumbo Frames
• LED indicator for link and activity
• USB bus powered
• Colour: black
• Cable length without connectors: ca. 9 cm
• Dimensions (LxWxH): ca. 40 x 20 x 19 mm
• Linux Kernel 3.10 or above
• Mac OS 10.9 or above
• Windows 8.1/8.1-64/10/10-64/11
• Laptop or tablet with a free USB Type-C™ or Thunderbolt™ 3 port
Package content
• USB Type-C™ Gigabit LAN adapter
• User manual
