This RJ45 plug by Delock is specially designed for 2-pole wires. Suitable for solid or flexible conductors with a cross-section of 1 - 4 mm².
With clamp lock

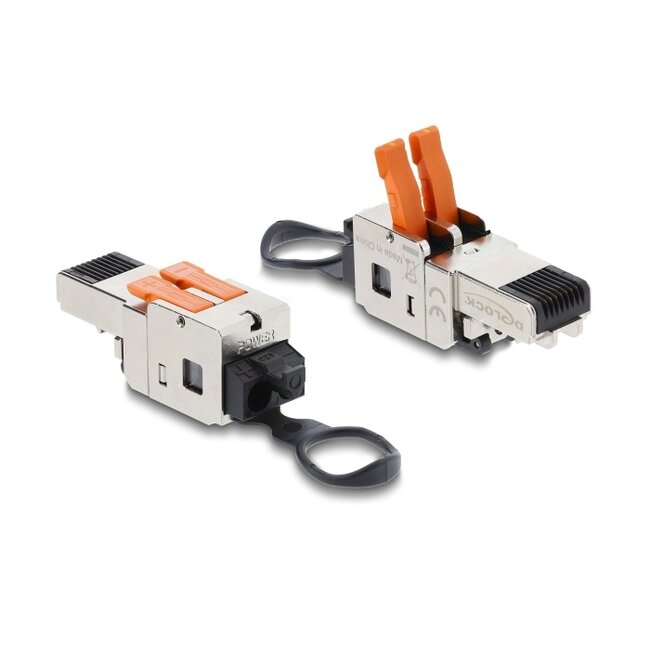

The clamping system enables a quick and tool-free connection. To connect, both clamps (+/-) are pulled upwards, the stripped wire ends are inserted into the corresponding openings and the clamps are then pushed down again to create a secure connection. A black plastic ring serves as a quick-release mechanism for connection to an RJ45 socket.
• Connector:
1 x RJ45 plug
• Number of poles: 2 (plus / minus)
• Toolfree clamp closure (push-in)
• Suitable for cable cross-section: 1 - 4 mm²
• Pin assignment:
Minus (– / GND) pins 3, 6, 7, 8
Plus (+ / VCC) pins 1, 2, 4, 5
• Rated current: 1.5 A
• Rated voltage: 125 V
• Material: zinc diecast
• Dimensions (LxWxH): ca. 63.4 x 15.7 x 11.6 mm
• RJ45 plug

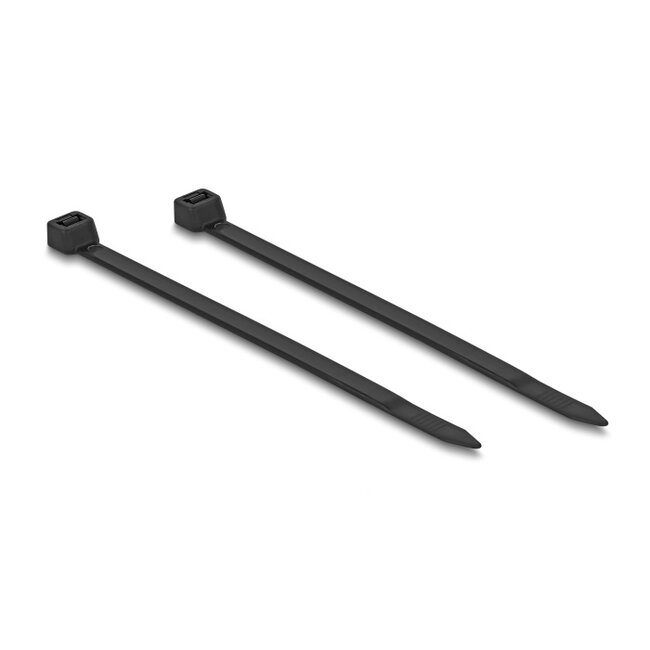

• 2 x cable tie
