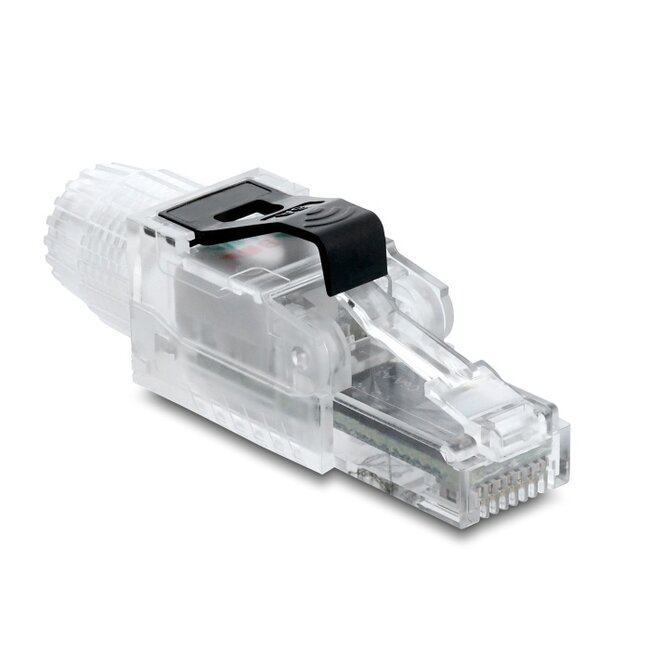

This RJ45 plug by Delock can be used to connect network cables. Installation of the plug to various cable types is tool-free and time-saving.
Specification• Connectors:
1 x RJ45 plug
1 x LSA
• Cat.6A specification
• Unshielded
• Compliant with Cat.6A requirements of ISO/IEC 11801, IEC 60603-7-4 and ANSI/TIA 568.2-D
• TIA-568A/B pinout
• For solid or stranded wire (26 - 23 AWG)
• For cable diameter from 5.5 - 7.5 mm
• Operating temperature: -10 °C ~ 60 °C
• Material: PC
• Colour: transparent / black
• Dimensions (LxWxH): ca. 50.9 x 17.3 x 14.2 mm
• RJ45 plug
• Cable manager
• Cable gland
