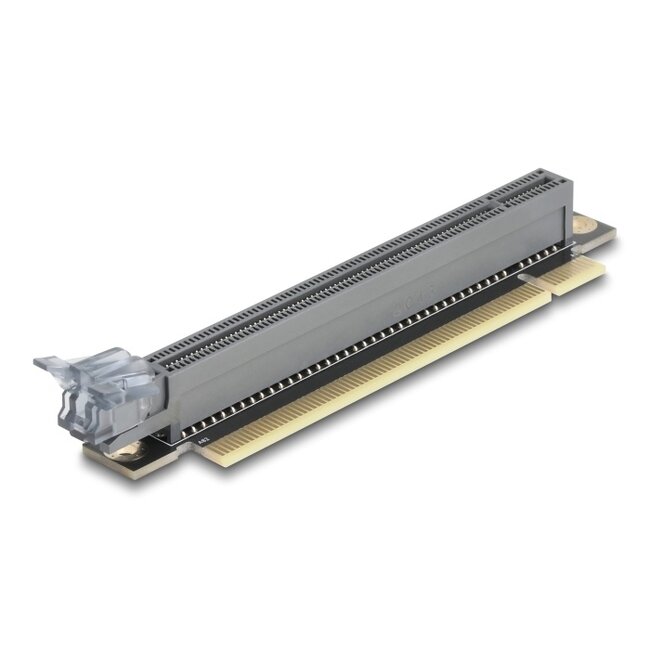

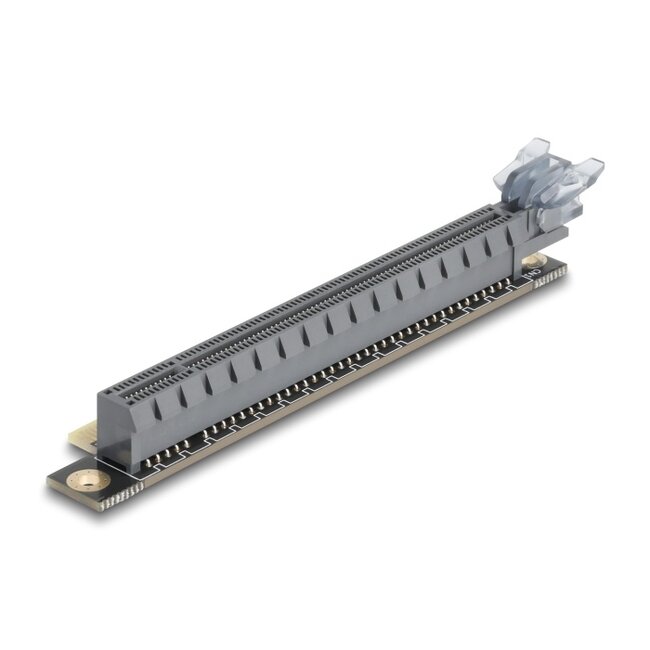

The PCI Express riser card by Delock angles the PCI Express slot by 90°. This type of horizontal installation is necessary inside 1U computer cases, where a vertical installation is not possible due to space limitation.
Specification• Connectors:
1 x PCI Express x16 male
1 x PCI Express x16 slot
• Supports PCI Express 3.0 protocol
• Right insertion
• Dimension: mounting height 11 mm, complete height 19 mm
• OS independent, no driver installation necessary
• PC with one free PCI Express x16 / x32 slot
Package content
• PCIe riser card
