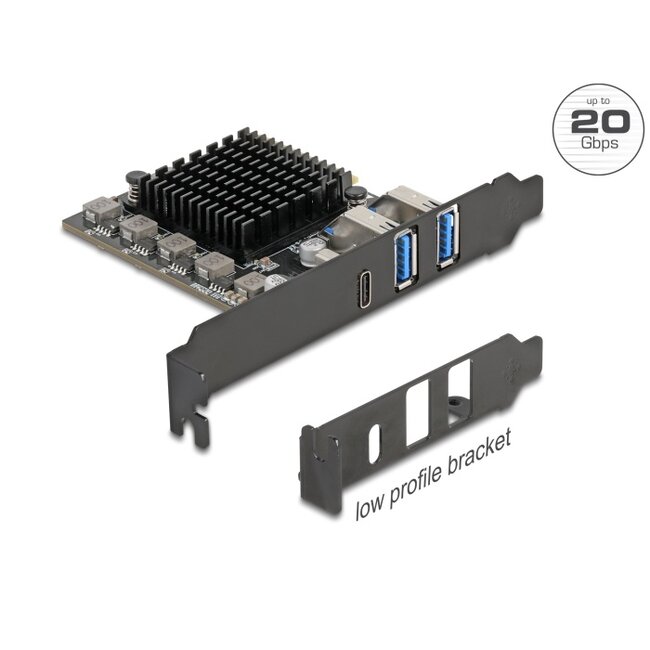

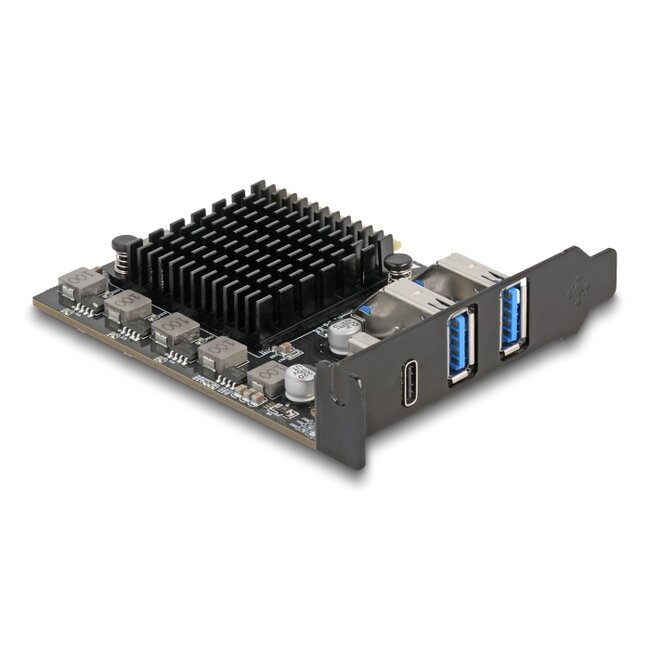

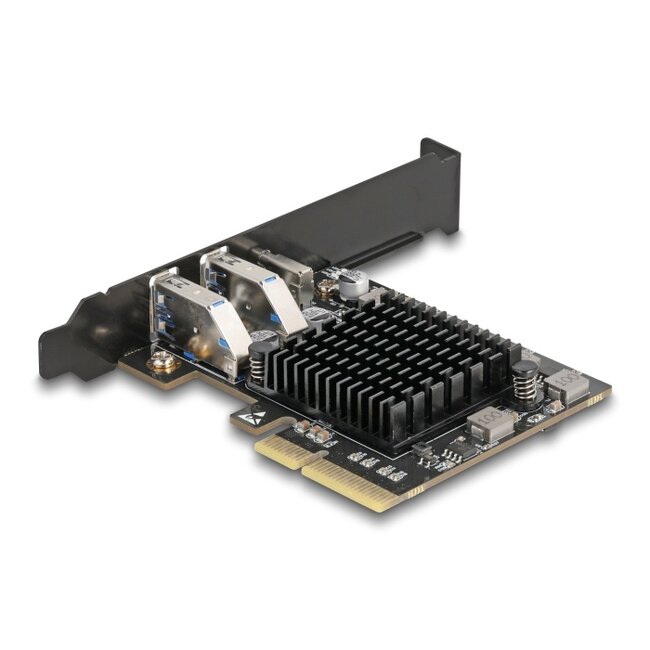

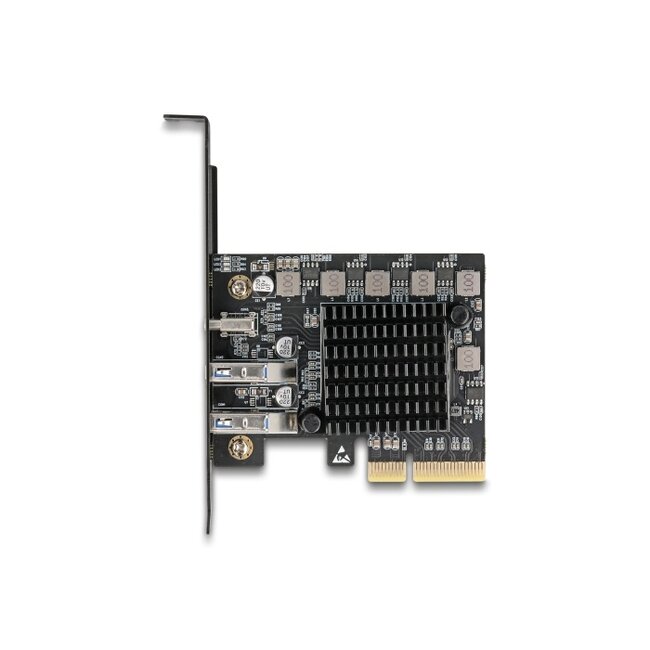

This PCI Express card by Delock expands the PC by three external USB ports, one USB-C™ port with 20 Gbps and two USB Type-A ports with 10 Gbps data transfer rate. Different USB devices can be connected to the card.
USB 20 Gbps
The card allows a data transfer rate of 20 Gbps on the USB-C™ port.
The card does not need an additional power supply. The power is supplied exclusively via the PCI Express interface.
• Connectors:
external:
1 x USB 20 Gbps USB Type-C™ female
2 x USB 10 Gbps Type-A female
internal:
1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3242
• 3 x LED indicator
• Data transfer rate up to 20 Gbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Electrical power:
USB Type-C™: max. 15 watt (5 V / 3 A)
USB Type-A: max. 12 watt (5 V / 2.4 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs
• Linux Kernel 6.5 or above
• Windows 10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card USB 20 Gbps
• Low profile bracket
• User manual
