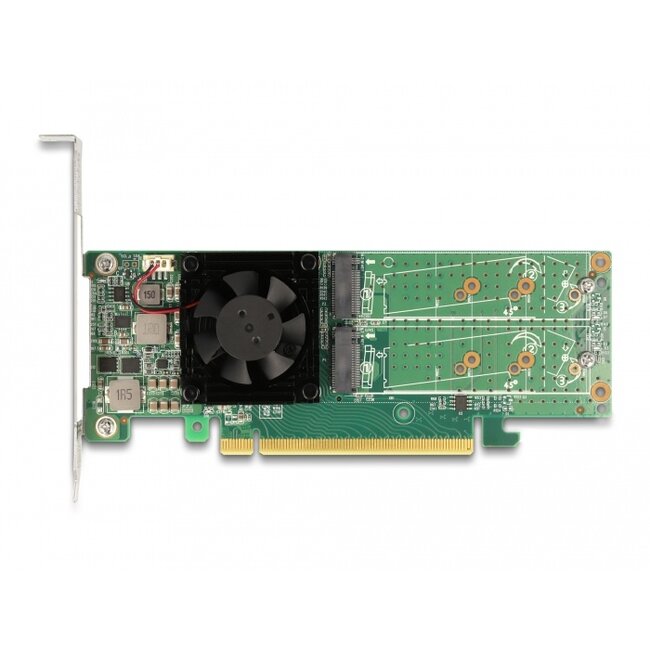

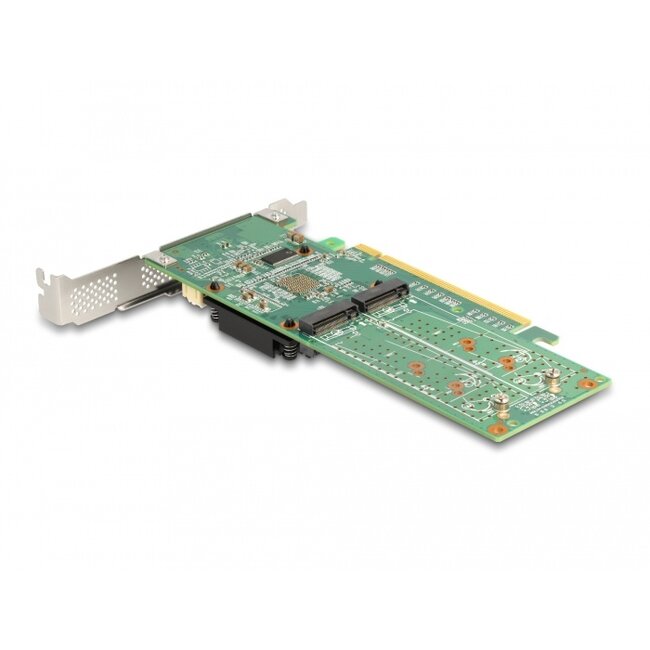

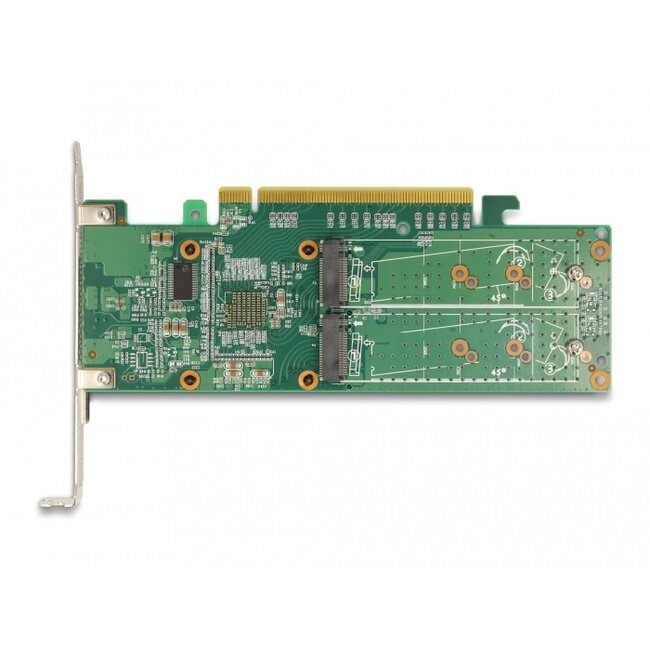

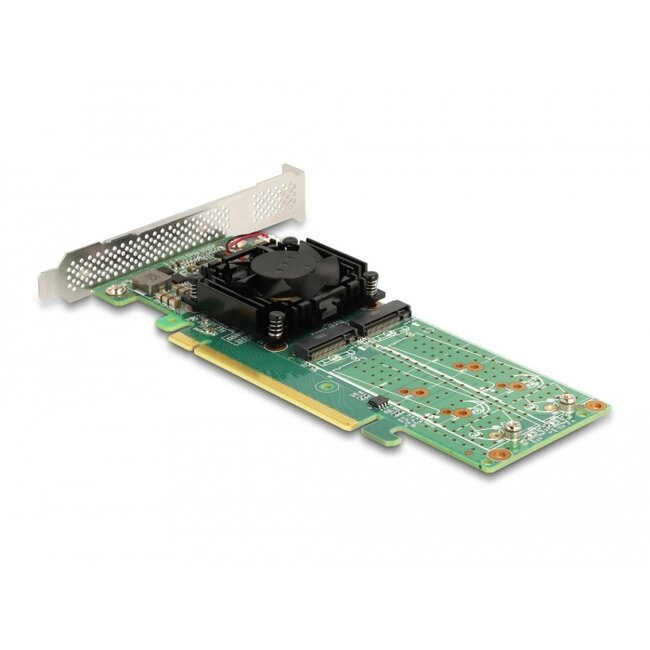

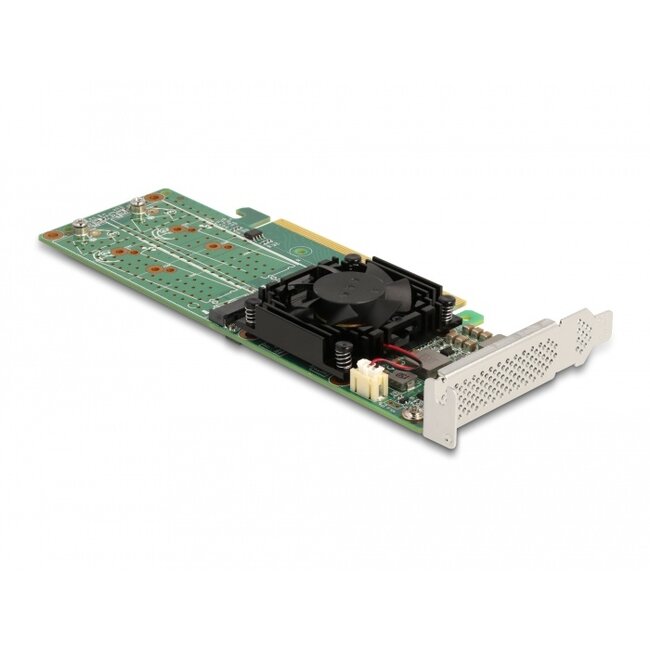

Description This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SSDs in format 2280, 2260 and 2242 can be connected.
Delock M.2 PCIe card for gaming and server
Especially in the gaming and server range, this card is ideally suited to expand the existing system by four fast M.2 NVMe slots. All slots can be used simultaneously.
Specification • Connectors:
internal:
4 x 67 pin M.2 key M slot
1 x PCI Express x16, V3.0
• Chipset: Broadcom PEX8747
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based on
PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• Data transfer rate up to 32 Gbps
• Supports NVM Express (NVMe)
• Bootable, ex UEFI version 2.3.1
• Supports S.M.A.R.T.
• 1 x 37 mm fan
• 1 x heat sink
• 6 x LED indicator
System requirements • Linux Kernel 5.8 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2019
• PC with one free PCI Express x16 / x32 slot
Package content
• PCI Express card with fan

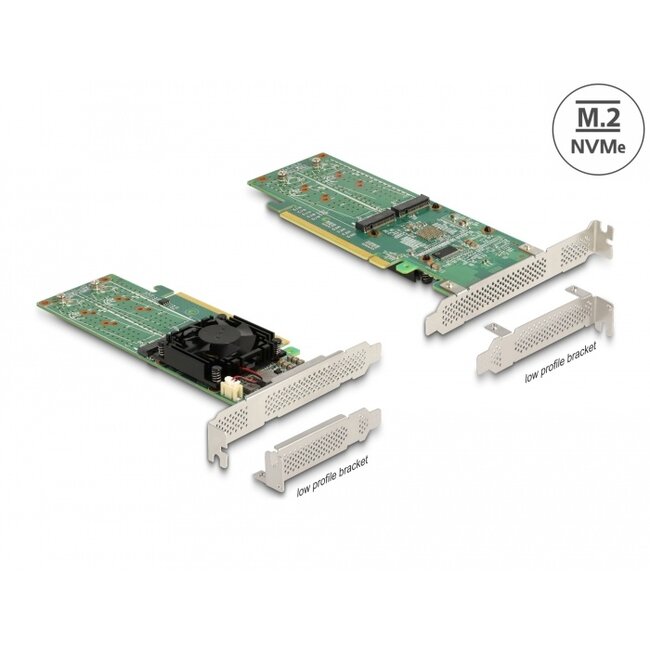

• Low profile bracket
• User manual
