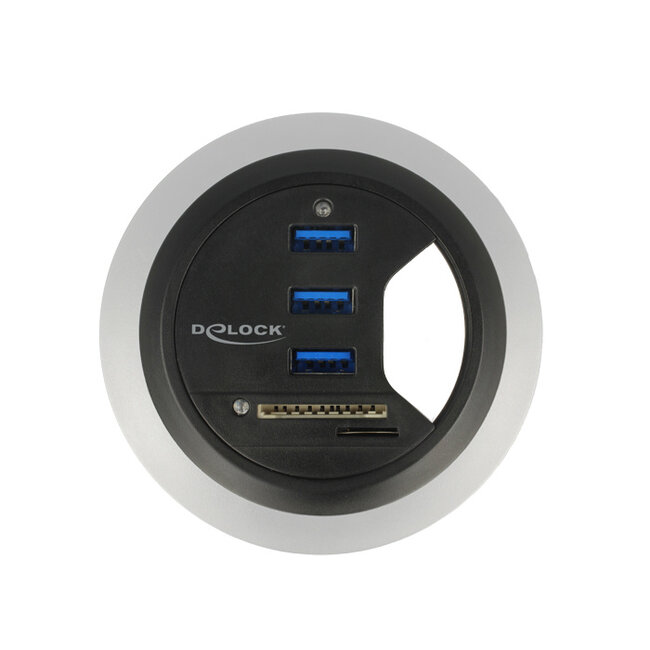

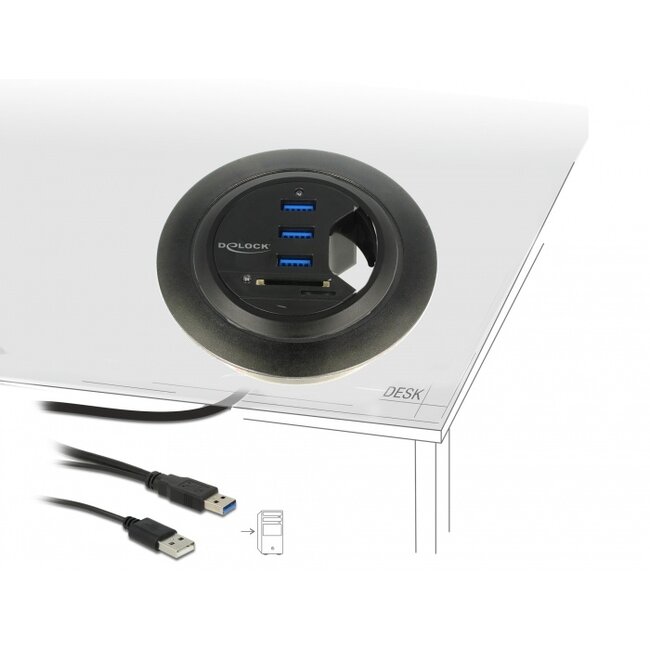

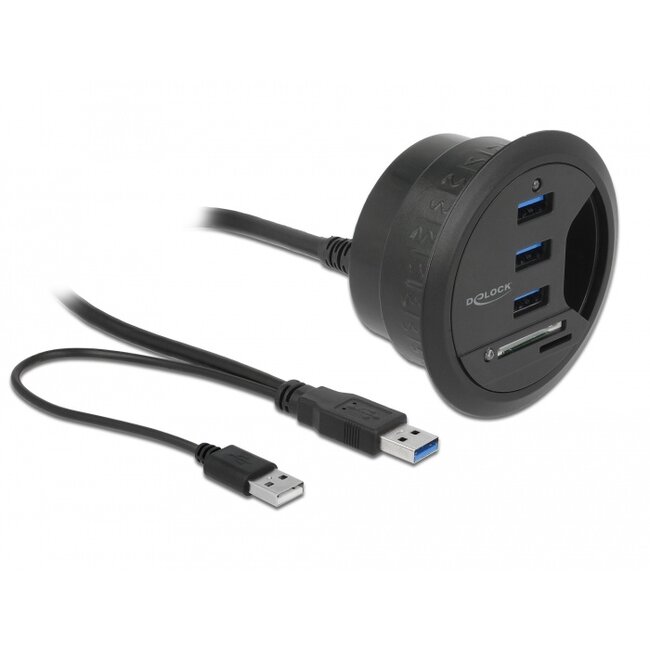

This hub by Delock can be installed into an existing cut-out of the desk with a diameter of 60 mm or 80 mm to lead through the cables for the monitor, keyboard and mouse. At the same time, the hub offers three USB Type-A female ports and one SD Card Reader with two slots. The data transfer and power supply is guaranteed through one USB 3.0 Type-A male and one USB 2.0 Type-A male. The distance between the free connectors can be maximum 20 cm, because the two cables are connected with each other.
Specification• Connectors:
top side:
3 x USB 3.0 Type-A female
1 x SD slot
1 x Micro SD slot
bottom side:
1 x USB 3.0 Type-A male
1 x USB 2.0 Type-A male (power supply)
• Chipset: VL813, GL3233
• Data transfer rate up to:
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• The Card Reader supports following memory cards:
1. Slot Secure Digital
SD, SD Pro, SD High Capacity (SDHC), SD Ultra, SDHC Ultra, SDXC, SDXC Ultra,
MMC-I, MMC-II, MMC 4.0, Mini SD, Mini SDHC, MMCmobile, RS-MMC, RS-MMC 4.0
2. Slot Micro Secure Digital
Micro SD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
• Mounting diameter: 60 mm / 80 mm
• Mounting depth: 35 mm
• Cable length: ca. 95 cm
• Plug & Play
• Linux Kernel 2.6 or above
• Mac OS 10.9 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with two free USB Type-A ports
• 60 mm product and 80 mm cut-out of the desk
Package content
• In-Desk Hub with Card Reader
• 60 mm ring
• 80 mm ring
• User manual
