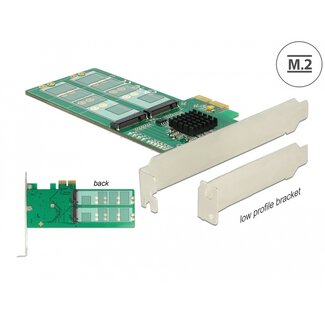

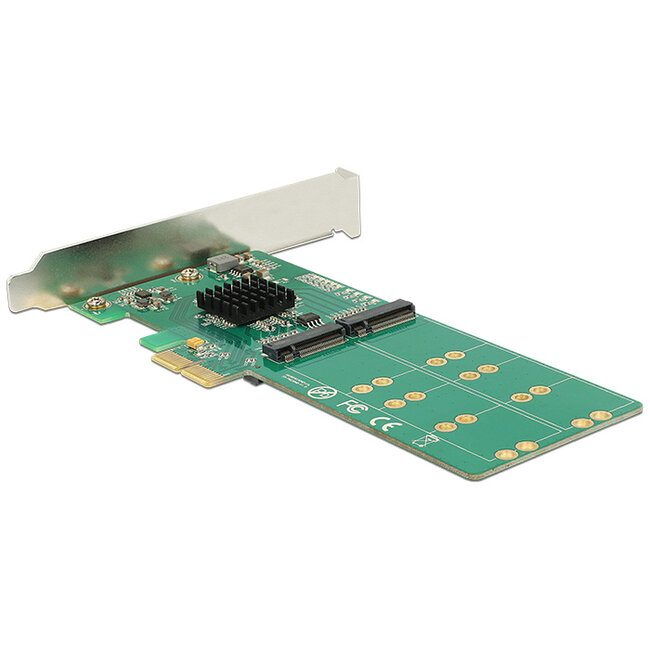

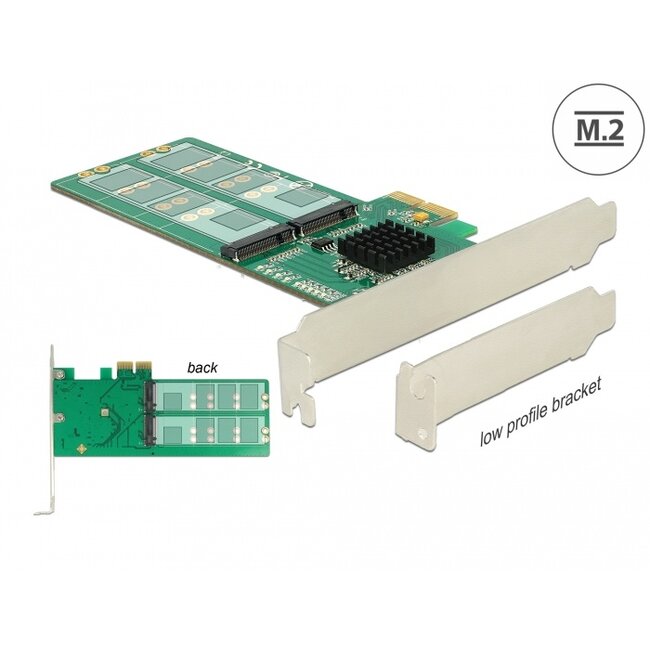

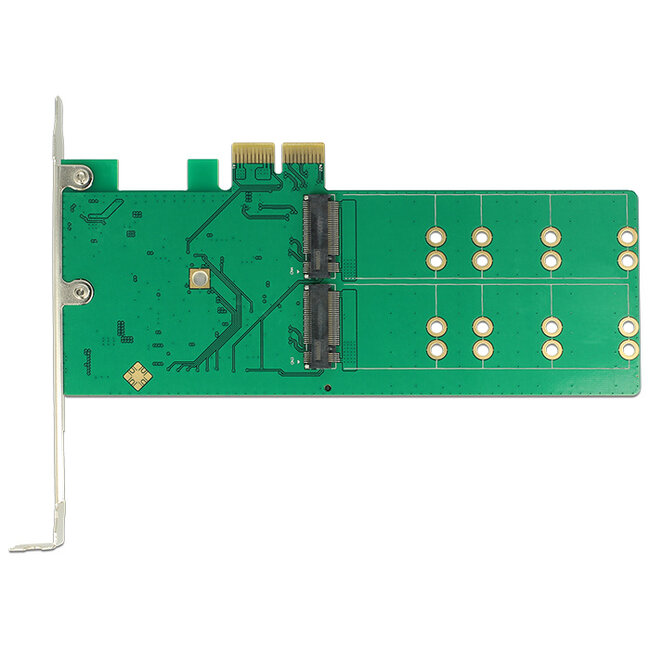

This PCI Express card by Delock expands the PC by four M.2 slots. Up to four M.2 SATA modules can be connected in format 2280, 2260, 2242, 2230 with this card.
Specification• Connectors:
internal:
4 x 67 pin M.2 key B slot
1 x PCI Express x2, V2.0
• Interface: SATA
• Chipset: Marvell 88SE9235
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B
or key B+M based on SATA
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Data transfer rate up to 5 Gb/s
• Supports Native Command Queuing (NCQ)
• LED indicator
• Bootable
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.3 / Kernel 4.9
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• Mounting material
• User manual
