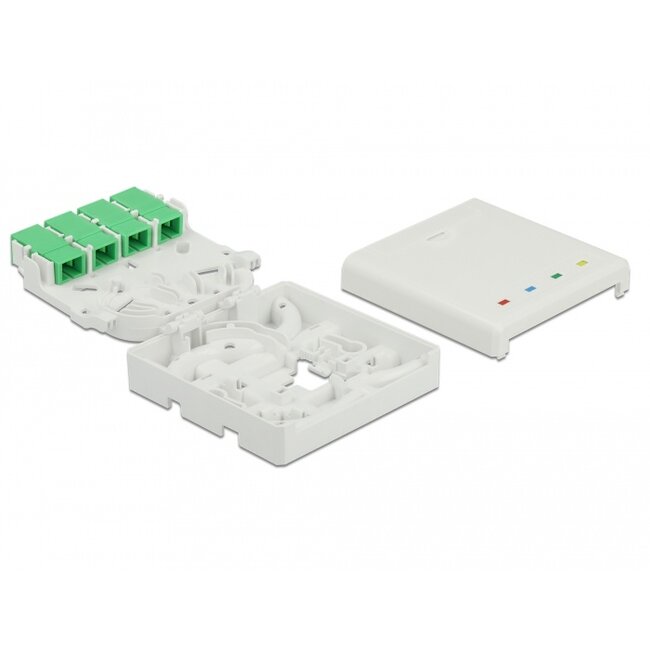

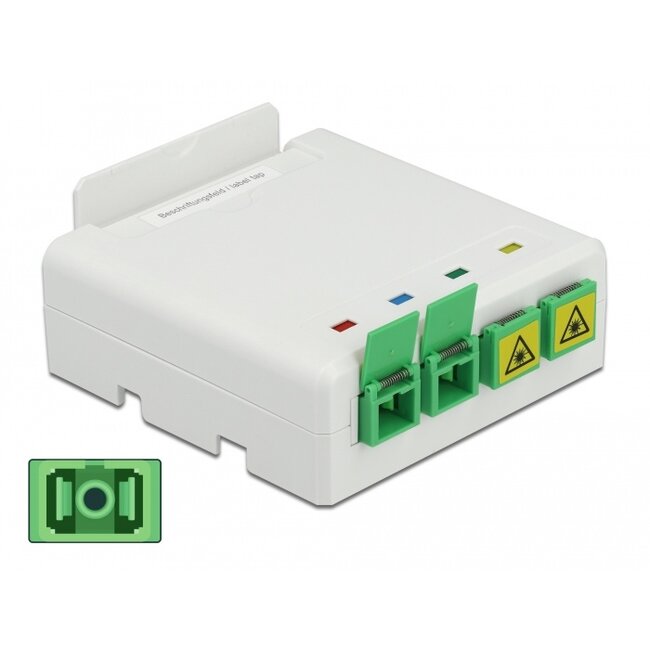

This fiber optical junction box by Delock can accommodate up to four SC Simplex or LC Duplex fiber optical cables. The connection box has mounting openings for fastening to flush-mounted and cavity wall boxes. The integrated clips allow the mounting on 35 mm DIN rails horizontally and vertically.
Specification• Optical fiber connection box for FTTH applications
• 4 slots for SC Simplex or LC Duplex couplings
• DIN rail mounting: 35 mm
• Wall mounting:
2 x mounting holes
Mounting hole diameter: 7 mm
Pitch of screw hole: ca. 60 mm
• Cover with label tap
• Protective flip
• Colour: white
• Material: ABS
• Dimensions (LxWxH): ca. 80 x 80 x 29 mm
• Optical fiber connection box
• 4 x SC Simplex coupler with laser protection flip

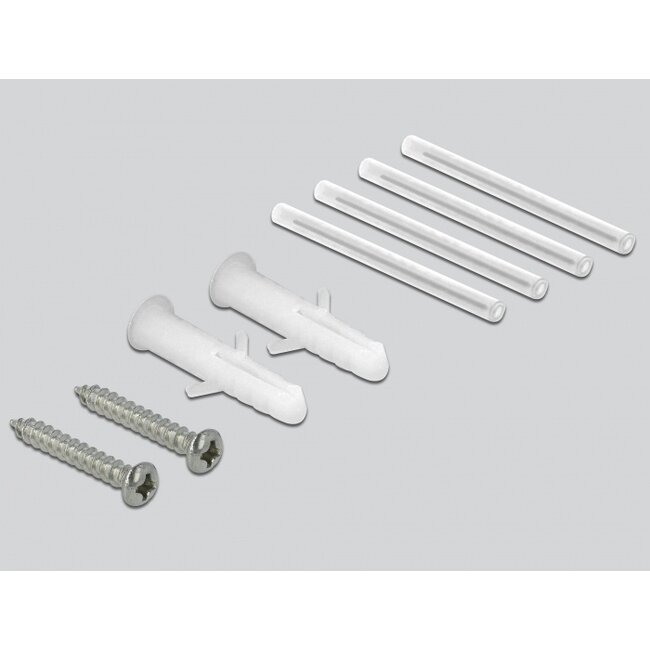

• 4 x Heat shrink tube
• 2 x screw
• 2 x dowel
