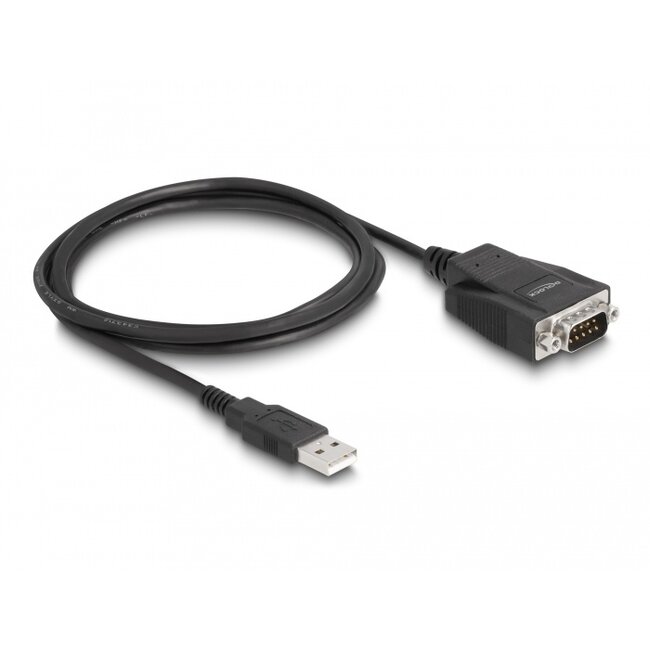

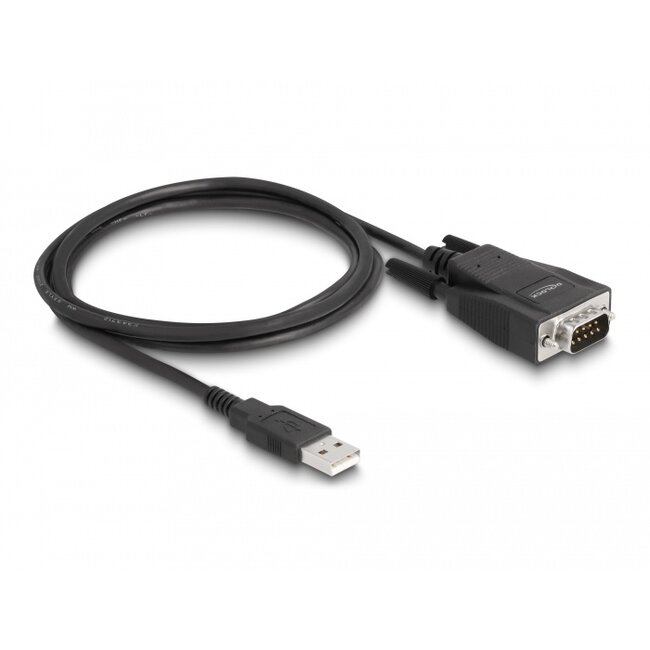

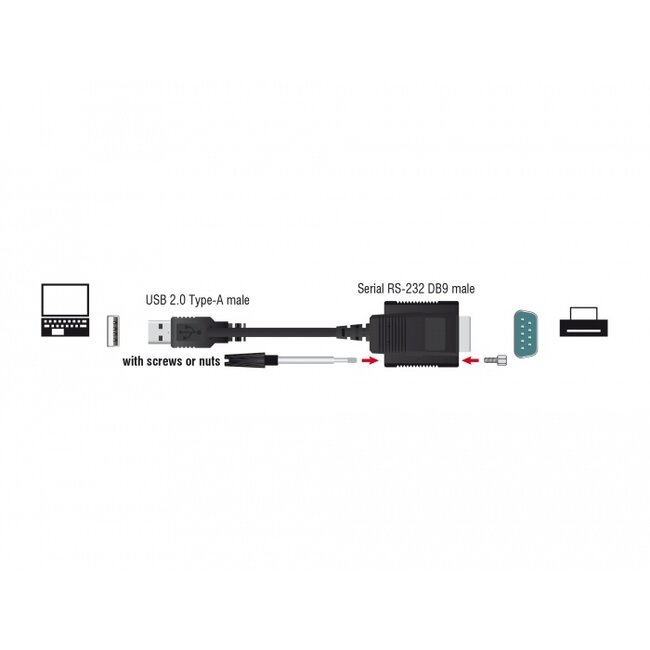

This USB 2.0 to RS-232 adapter by Delock provides a flexible DB9 connection with matching screws and nuts for the operation on serial controllers, printers, measuring instruments, IoT devices, etc. A built-in ESD protection prevents the destruction of the electronic components.
Specification• Connectors:
1 x USB 2.0 Type-A male
1 x serial RS-232 DB9 male
• Chipset: Prolific PL2303 GC
• Data transfer rate up to 921.6 Kbps
• FIFO: 1024 Byte buffer bi-directional
• Parity: even, odd, none, mark, space
• Stop bit: 1, 1.5, 2
• Data bit: 5, 6, 7, 8
• Flow control: none, Xon / Xoff, RTS / CTS

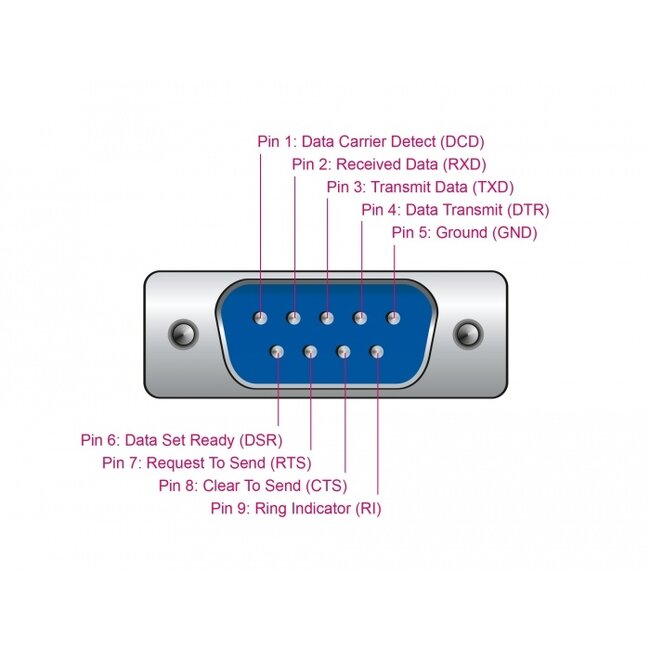

• Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps

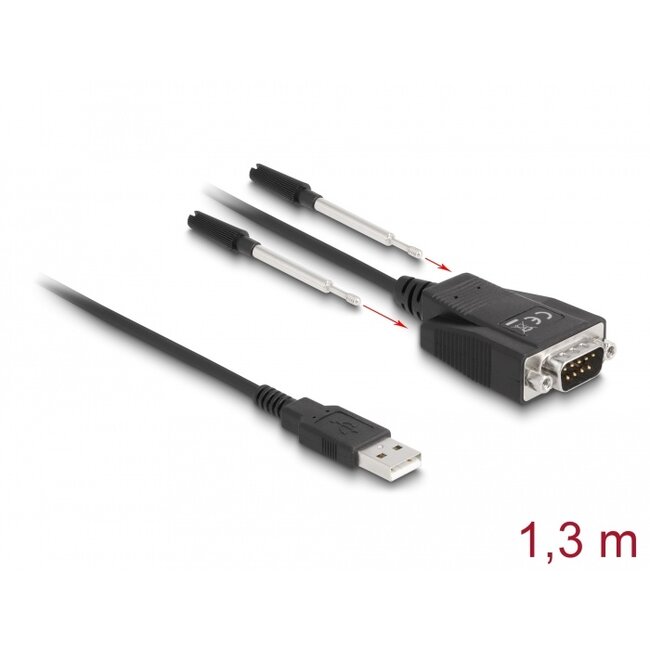

• Cable length incl. connectors: ca. 130 cm
• Linux Kernel 3.3 or above
• Windows 10/10-64/11
• PC or laptop with a free USB Type-A port
Package content
• USB 2.0 to 1 x serial adapter

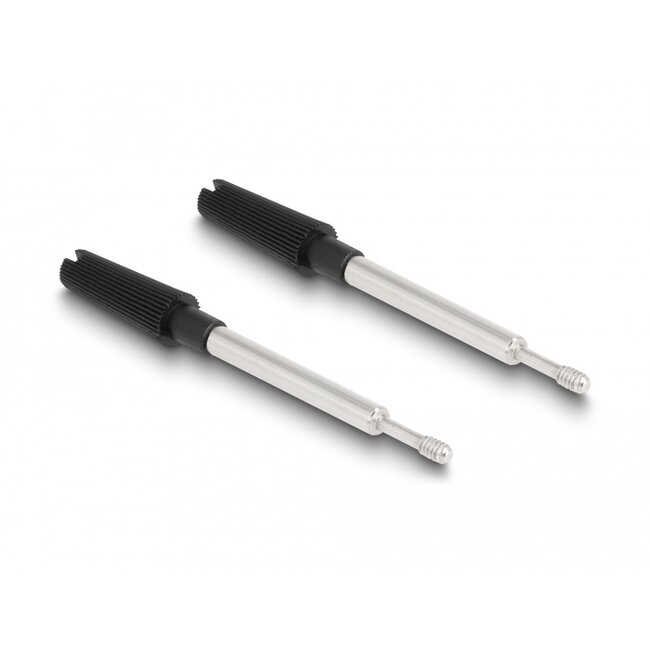

• 2 x screw
• Driver CD
• User manual
