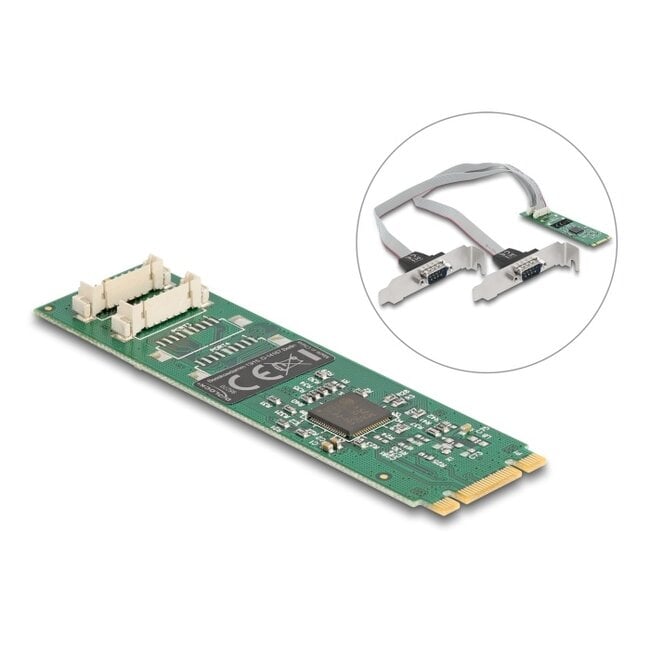

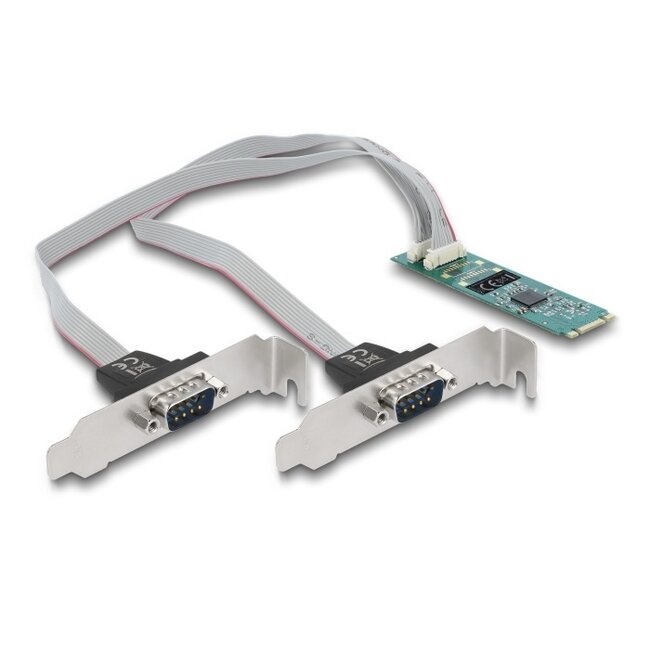

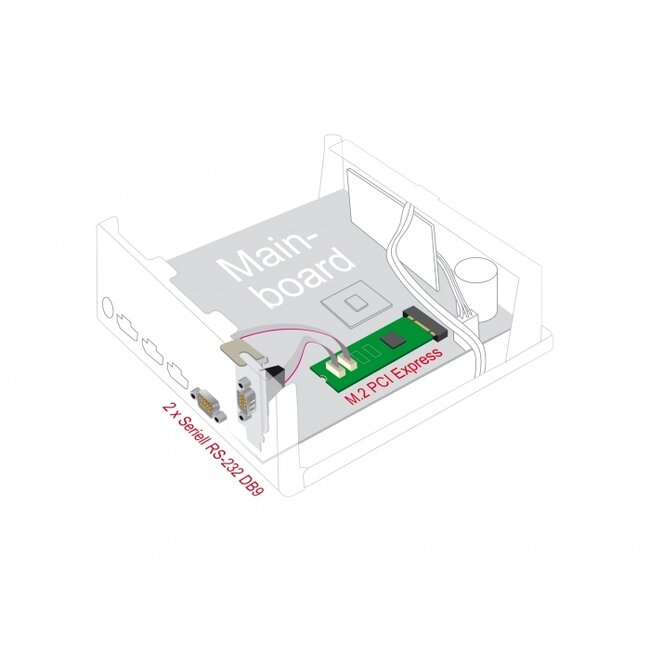

The M.2 to serial card by Delock expands the PC by two external RS-232 port. Different devices such as scanners, protocol converters, IoT devices etc. can be connected to the card. With the help of the included slot brackets and RS-232 cables, the M.2 card is suitable for installation into any computer case.
Specification• Connectors:
1 x 59 pin M.2 key B+M male

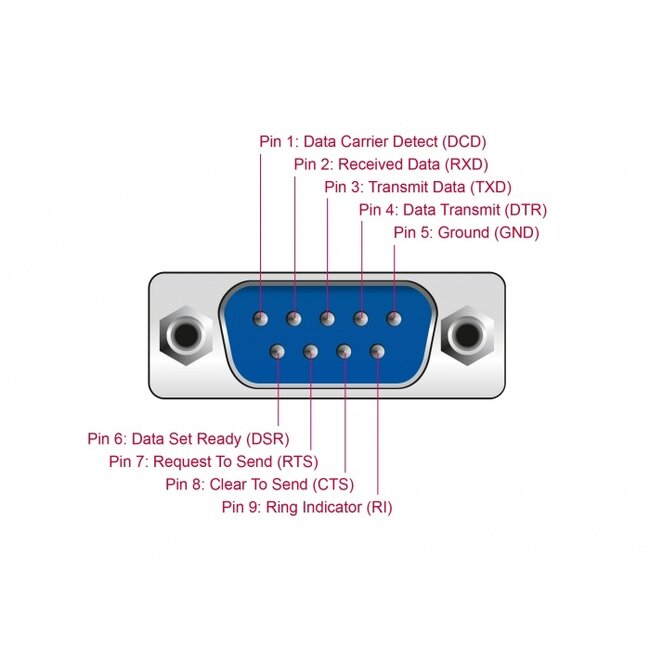

2 x serial RS-232 DB9 male
• Interface: PCIe 2.1 (x1)
• Chipset: ASIX AX99100
• Compatible with 16C950 UART
• Data transfer rate up to 1 Mbps
• Databits: 5, 6, 7, 8, 9
• Flow control: none, Xon / Xoff, RTS / CTS
• Parity: even, odd, none, mark, space
• FIFO: 256 byte
• Supports Active State Power Management (ASPM)
• Supports Direct Memory Access (DMA)
• Supports slow IrDA mode up to 115 Kbps

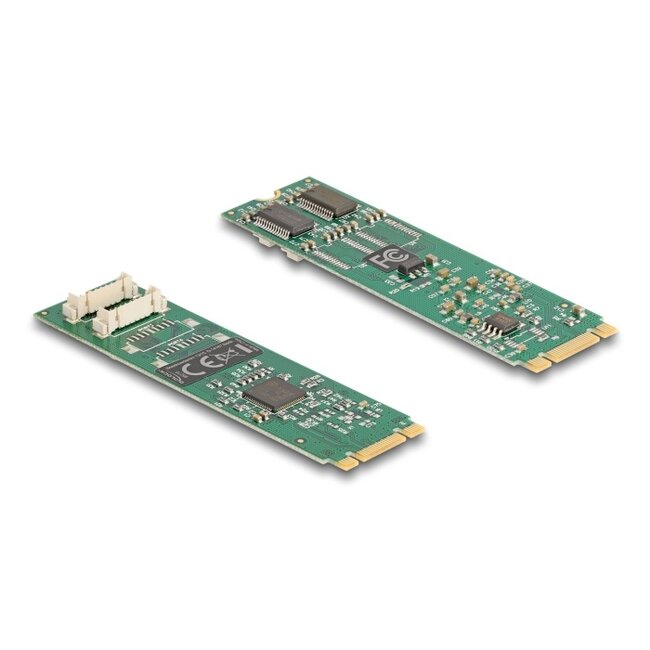

• Form factor: M.2 2280
• Dimensions (LxWxH): ca. 80 x 22 x 8 mm
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2016/Windows Server 2019
• A free M.2 key B or key M slot
Package content
• M.2 card
• 1 x fixing screw for M.2 module
• 2 x serial connecting cable (ca. 30 cm)

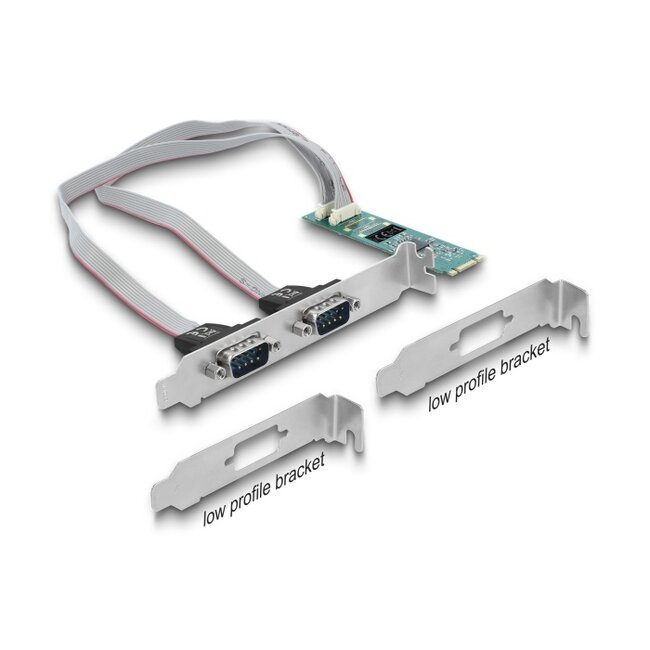

• 2 x low profile bracket
• 1 x standard bracket
• Driver CD
• User manual
