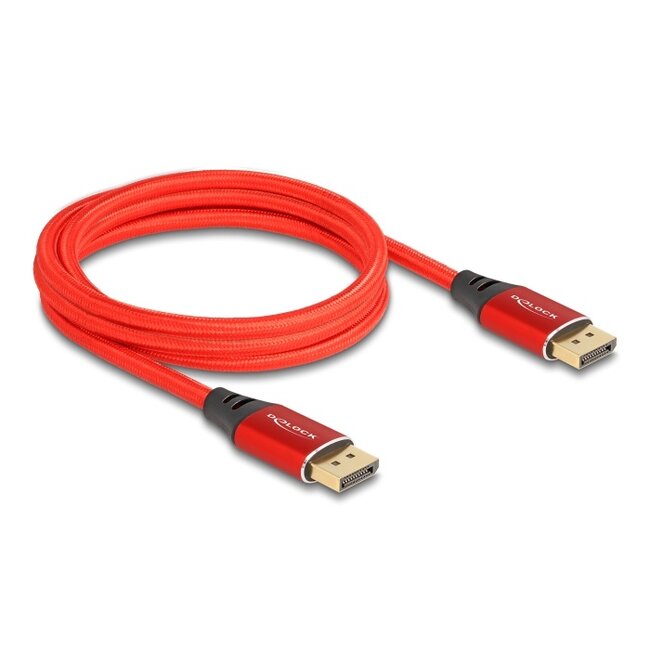

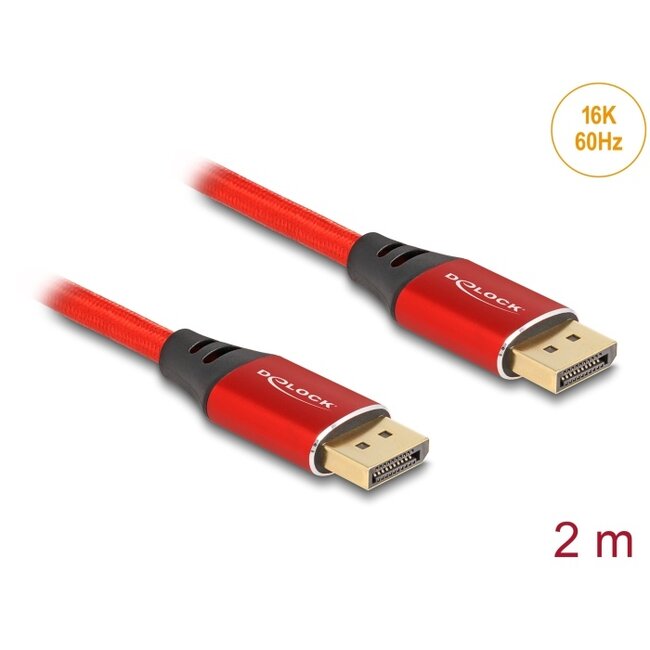

This cable by Delock is used to connect devices with a DisplayPort interface, such as monitors or TVs, to a PC or a laptop.
16K resolution and HDR support
The cable supports a maximum resolution up to 16K @ 60 Hz (15360 x 8640 pixels) with DSC support.
Due to the HDR support colours are realistically displayed with impressive depth, brightness and contrast are optimally reproduced.
Optically, the cable convinces with its elegant metal housings on the plugs and the textile sheathing around the cable jacket.
• Connectors:
2 x DisplayPort male
• DisplayPort 2.1 specification
• Downwards compatible to DisplayPort 1.4, 1.3, 1.2 and 1.1
• Pin 20 not connected
• Connector with metal housing
• Cable with textile shielding
• Cable gauge: 30 AWG
• Cable diameter: ca. 6 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Connector finishing: gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 40 Gbps
• Resolution up to:
Display with DSC support:
15360 x 8640 @ 60 Hz
7680 x 4320 @ 120 Hz
3840 x 2160 @ 240 Hz
Display without DSC support:
15360 x 8640 @ 30 Hz
7680 x 4320 @ 60 Hz
3840 x 2160 @ 144 Hz
(depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2a (DSC)
• Supports HDR10 and HDR10+
• Supports HDCP 1.4 and 2.3
• Supports UHBR 10 (10 Gbps / Lane) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: red
• Length incl. connectors: ca. 2 m
• DisplayPort cable
