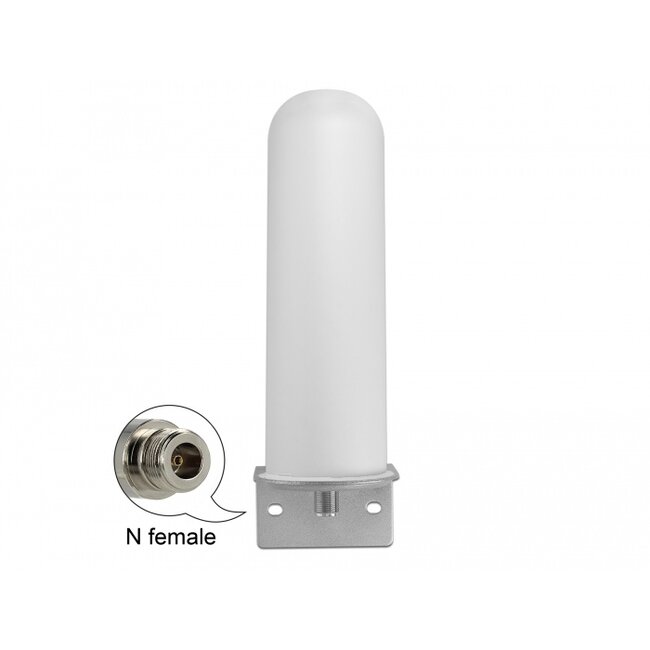

This antenna by Delock allows the usage of different LTE bands indoors and outdoors.
Specification• Connector: 1 x N jack
• Frequency range: 698 - 2700 MHz
• ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN
• Antenna gain: 4 - 6 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• VBW vertical beamwidth: 25°
• Operating temperature: -50 °C ~ 80 °C
• Housing material: GFRP
• Colour: white
• Dimensions (LxD): ca. 22.0 x 6.9 cm
• Weight: ca. 0.5 kg
• Device with one free N port
Package content
• Antenna
• Mounting material: nut, washer, mounting bracket and pole mounting bracket
