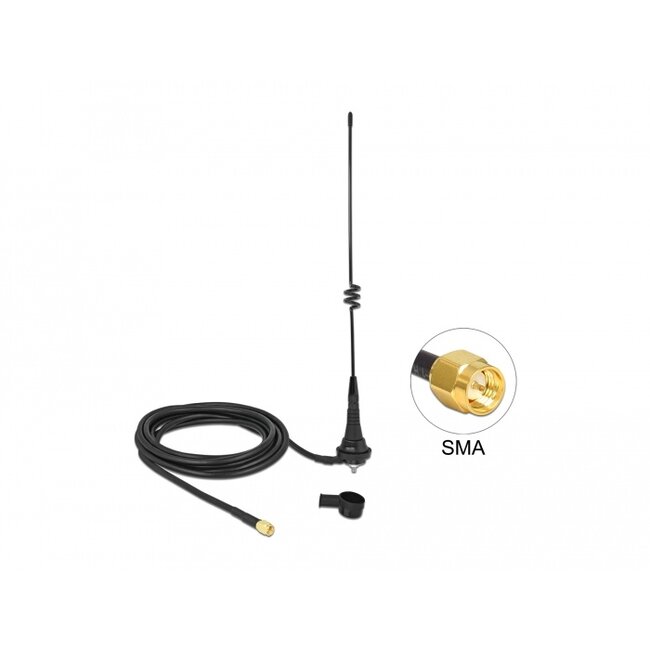

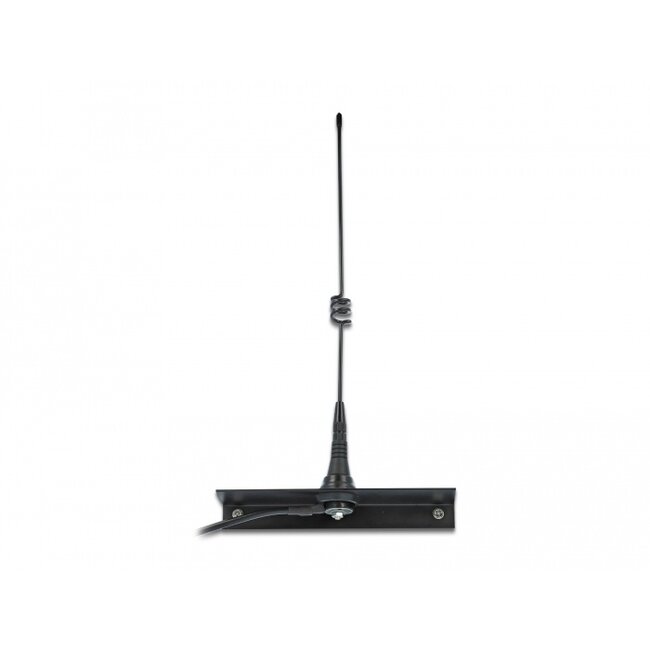

This antenna by Delock allows the usage of the 868 MHz band indoors and outdoors.
LPWAN
LPWAN (Low Power Wide Area Network) are radio networks that cover large distances. They are characterized by a high reception sensitivity and by a low energy consumption.
• Connector: 1 x SMA plug
• Frequency range: 868 MHz
• LoRa, Sigfox, ZigBee, Z-Wave
• Antenna gain: 4.5 dBi
• Impedance: 50 Ohm
• VSWR: 1.5
• Polarisation: vertical
• HBW horizontal beamwidth: 360°
• Operating temperature: -50 °C ~ 70 °C
• Mounting plate: iron
• Colour: black
• Cable type: coaxial
• Cable type: RG-58 C/U
• Cable attenuation: 0.73 dB @ 1.0 GHz per meter
• Cable diameter: ca. 4.95 mm
• Smallest bending radius: 20,00 mm
• Cable length incl. connectors: ca. 2.5 m
• Dimensions (LxD): ca. 210 x 33 mm
• Dimensions Mounting plate (LxWxH): ca. 170 x 40 x 20 mm
• Maximum wind speed: 60 m/s
• Device with a free SMA connector
Package content
• Antenna

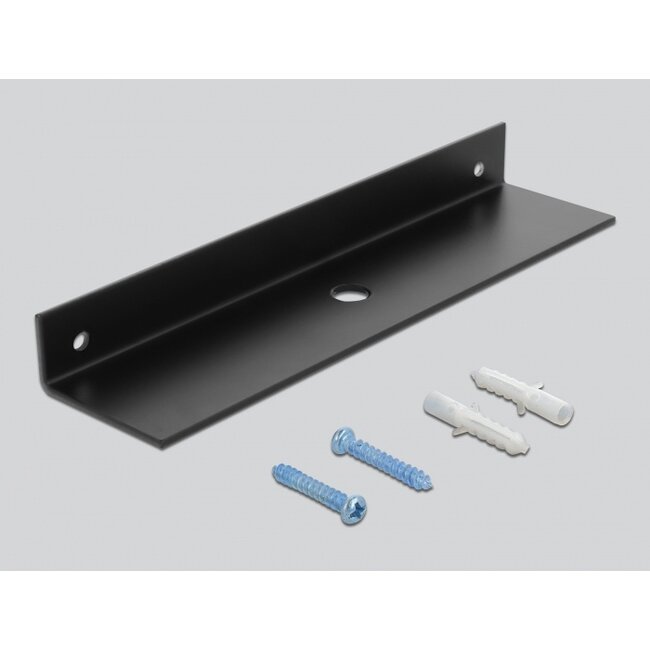

• Fixing plate
