Description

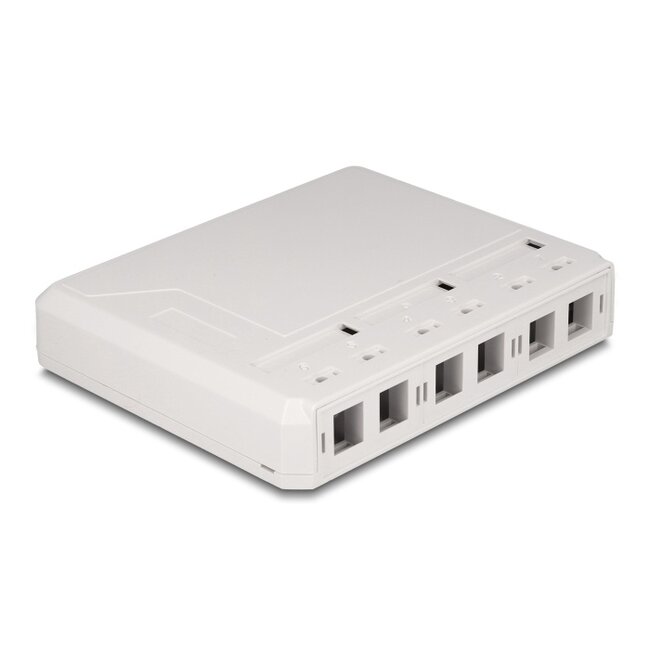

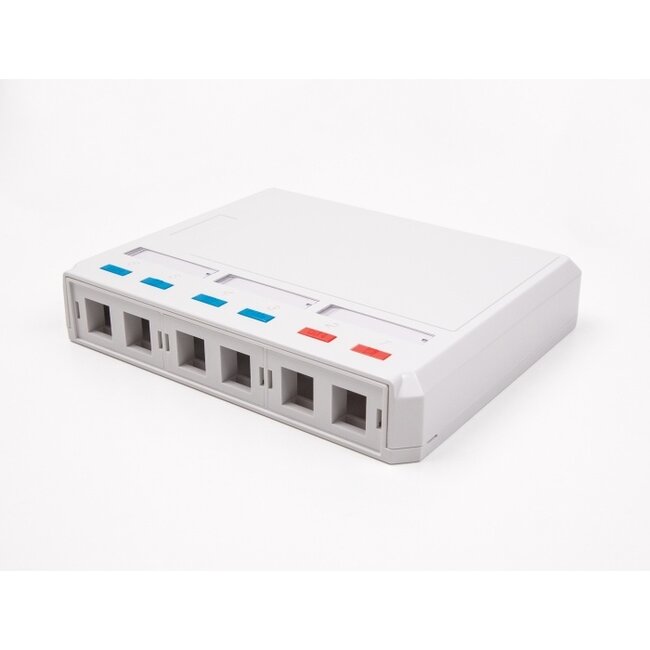

This empty box by Delock is suitable for mounting 6 Keystone modules and can be used as a junction box on the wall or in enclosures. It offers a versatile solution for the flexible installation of Keystone modules in networks, data centres, home and commercial environments.
Dual design for fiber optics and network
The dual design also offers a flexible solution for the organisation and protection of fiber optic connections and network connections.

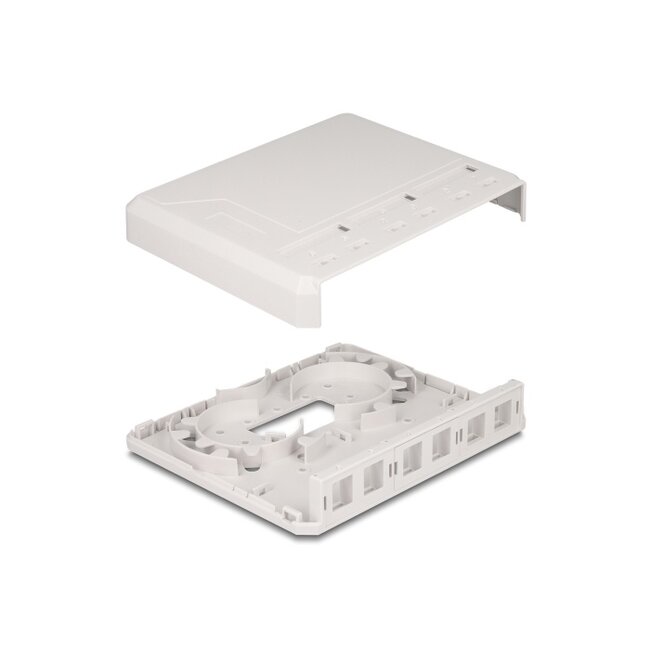

Winding system for optical fiber cables
The built-in spool makes it possible to wind fiber optical cables cleanly and safely. The device provides a structured cabling infrastructure and prevents kinks and damage to sensitive optical fiber cables.
Removable modules
The mounting box has 3 module sections, each with 2 ports for the Keystone modules, which are removable. It makes installation easier.
Please Note
Due to the narrow design only keystone modules up to max. 23 mm width can be used.
Specification
• 6 Keystone ports 19.2 x 14.9 mm
• Integrated name plates
• Removable modules
• Operating temperature: -10 °C ~ 60 °C
• Material: ABS
• Colour: white
• Dimensions (LxWxH): ca. 180 x 150 x 33 mm

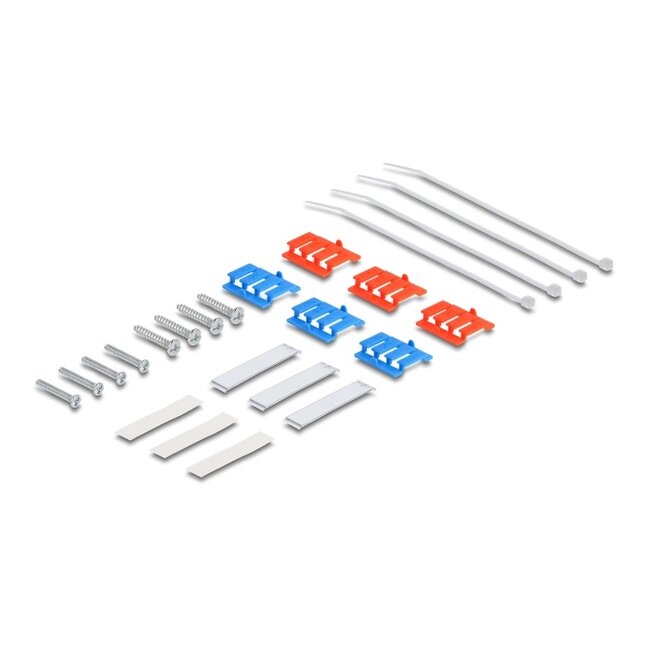

Package content
• Keystone surface mounted box
• 3 x transparent labelling label
• 4 x cable tie
• 8 x screws
• 12 x symbols
