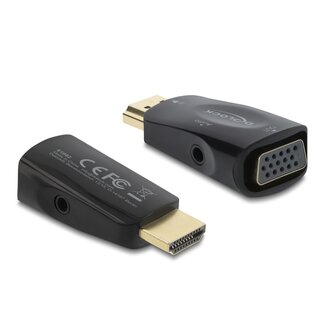

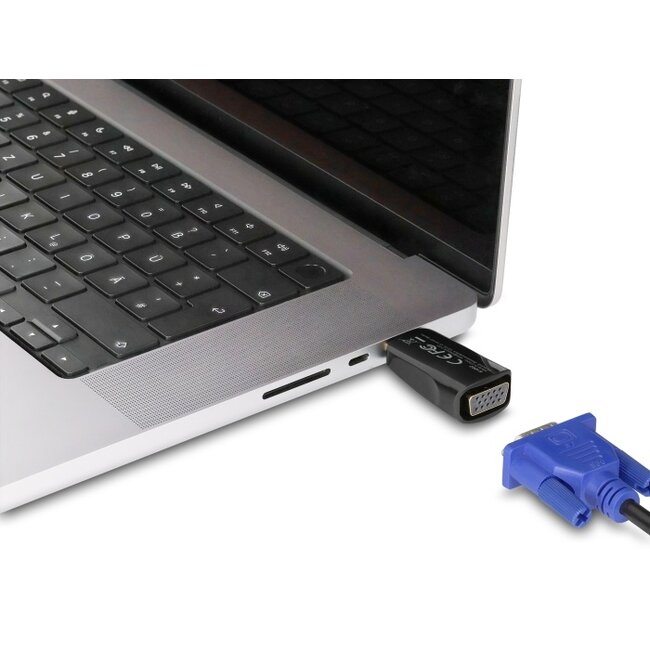

This adapter by Delock can be used to connect e.g. a VGA monitor to a free HDMI interface of the system. Furthermore, it is possible to transfer the audio signal via the Stereo jack female port.
Specification• Connectors:
1 x HDMI male
1 x VGA female
1 x 3.5 mm 3 pin stereo jack female
• Chipset: Capstone CS5213
• High Speed HDMI specification
• VGA connector without nuts
• Signal direction: HDMI input > VGA output
• Resolution up to 1080p @ 60 Hz (depending on the system and the connected hardware)
• Contact surface: gold-plated
• Colour: black
• Dimensions (LxWxH): ca. 49.5 x 23.4 x 15.5 mm
• OS independent, no driver installation necessary
• Adapter HDMI to VGA
