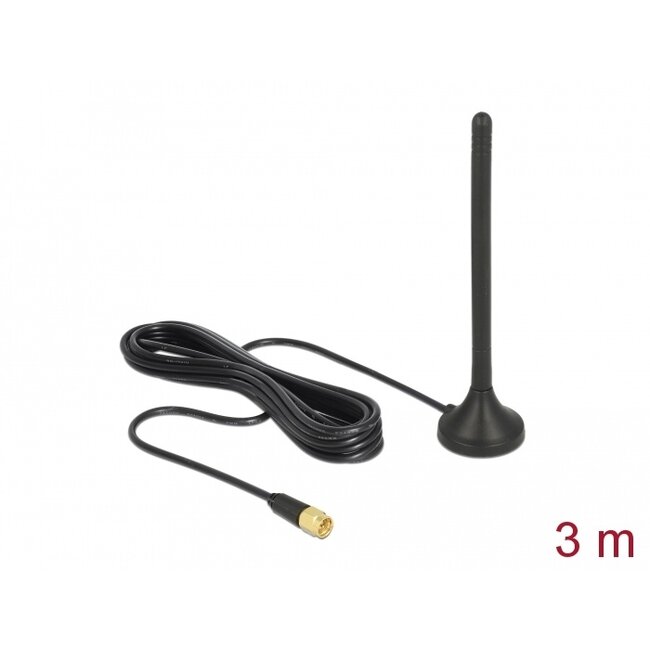

This antenna by Delock allows the usage of different LTE, GSM and UMTS bands inside and outside. It is completely compatible to ZigBee 868 MHz / 915 MHz, DECT, Z-Wave and LoRa 868 MHz / 915 MHz.
Specification• Connector: 1 x SMA plug
• Frequency range:
824 - 960 MHz
1710 - 2170 MHz
• ZigBee 868 MHz / 915 MHz, DECT, Z-Wave, LoRa 868 MHz / 915 MHz
• Antenna gain: 2.5 dBi
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• VSWR: 2.0
• Operating temperature: -30 °C ~ 70 °C
• Colour: black
• Cable: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1.5 dB @ 1.5 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 3 m
• Antenna length including magnetic base: ca. 117.63 mm
• Diameter magnetic base: ca. 30.0 mm
• Device with a free SMA jack
Package content
• Antenna
