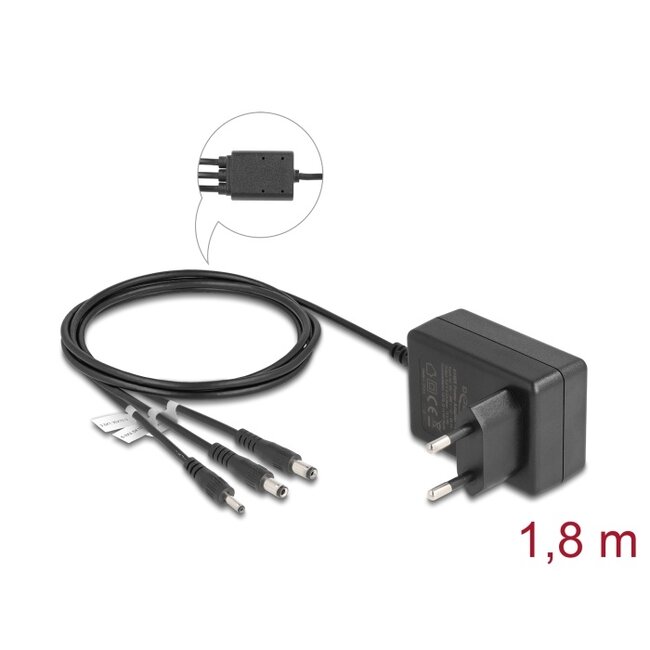

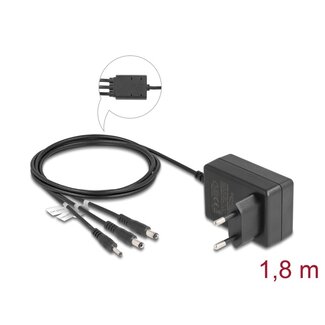

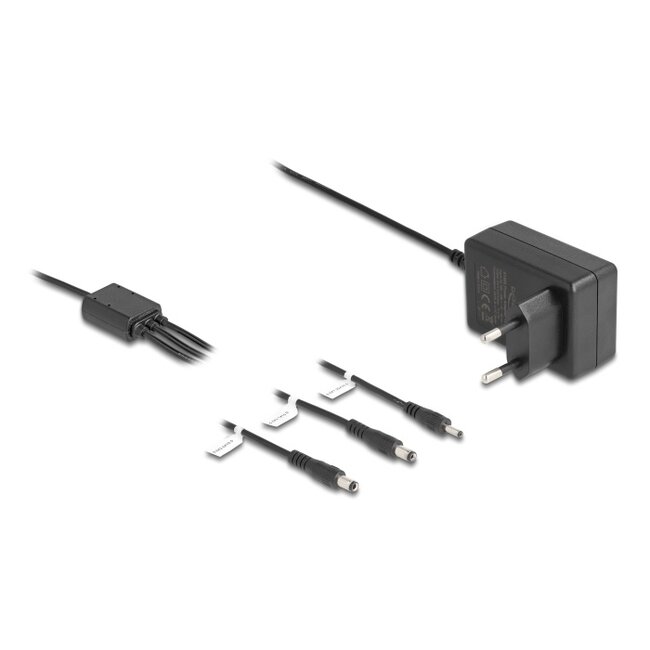

This external 5 V power supply by Delock can be used to supply power to various devices. With the three permanently installed DC connectors (3.5 x 1.35 mm, 5.5 x 2.1 mm and 5.5 x 2.5 mm), the power supply can be used universally.
Note
To ensure the correct function of the connected device, it must match the specifications for voltage, current and polarity of the power supply.
• Connector:
1 x plug CEE 7/16
1 x DC 3.5 x 1.35 x 10.0 mm male
1 x DC 5.5 x 2.1 x 10.0 mm male
1 x DC 5.5 x 2.5 x 10.0 mm male
• Ground outside, plus inside
• Switching power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.35 A
• Output: 5.0 V / 2.0 A
• Output power: max. 10.0 W total
• Average active efficiency 78.70 %
• Efficiency at low load (10 %) 78.19 %
• No-load power consumption 0.06 W
• Cable length: ca. 1.8 m
• Power supply
• User manual
