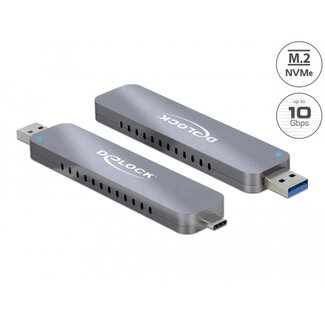

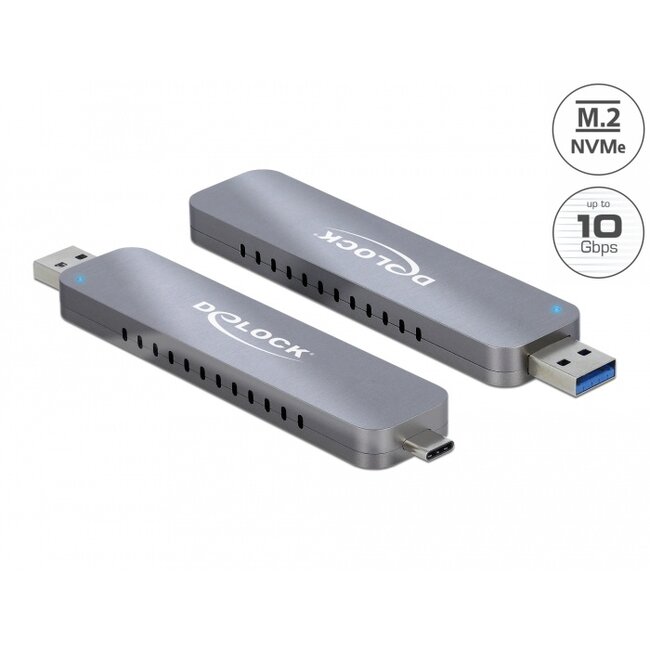

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280, 2260 and 2242 format, it can be connected via USB to the PC or laptop. The robust metal housing ensures an optimum temperature of the memory.
Note
There is no support for SATA M.2 SSD.
• Connectors:
external:
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ male
1 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A male
internal:

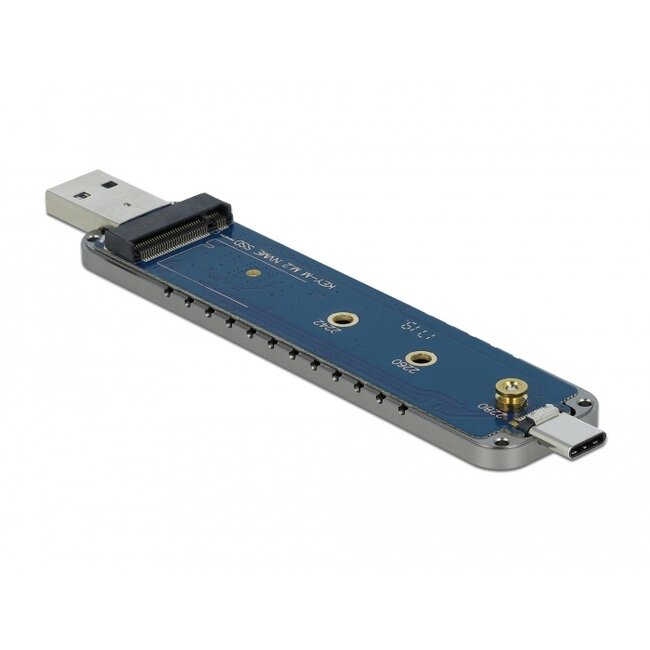

1 x 67 pin M.2 key M slot
• Chipset: JMicron JMS583
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or
key B+M based on PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• Bootable
• Supports NVM Express (NVMe)
• Data transfer rate up to 10 Gbps
• LED indicator for power and access
• Metal housing
• Dimensions (LxWxH): ca. 122 x 25 x 9 mm
• Hot Plug, Plug & Play
• Android 9.0 or above
• Chrome OS 72.0 or above
• Linux Kernel 4.6.4 or above
• Mac OS 10.14.5 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64

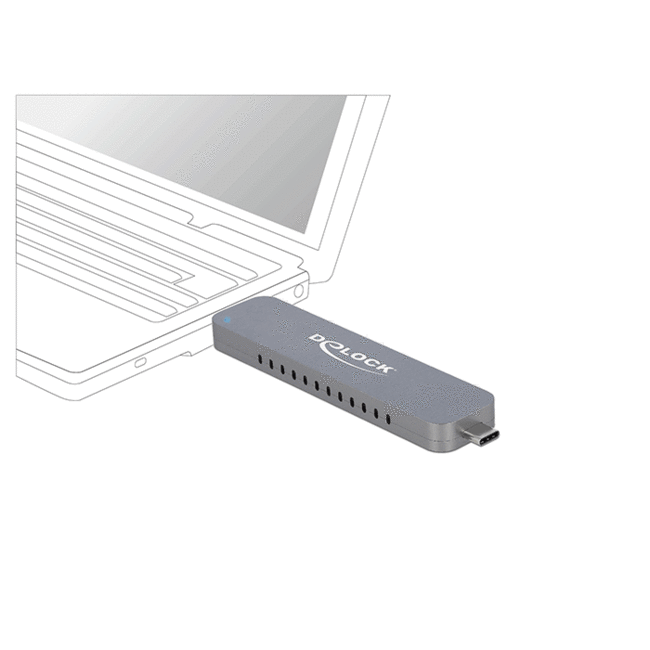

• PC or laptop with a free USB Type-C™ port
Package content

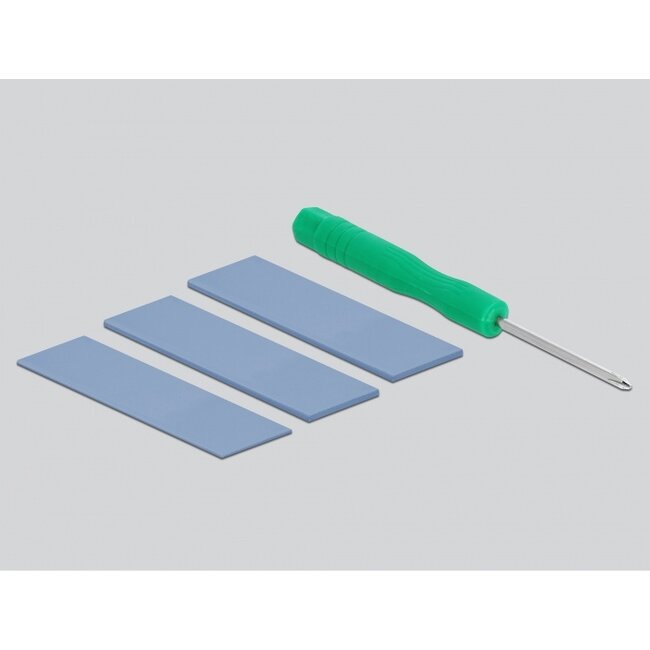

• External enclosure M.2
• Mounting material
• Screwdriver
• 3 x thermal pad
• User manual
