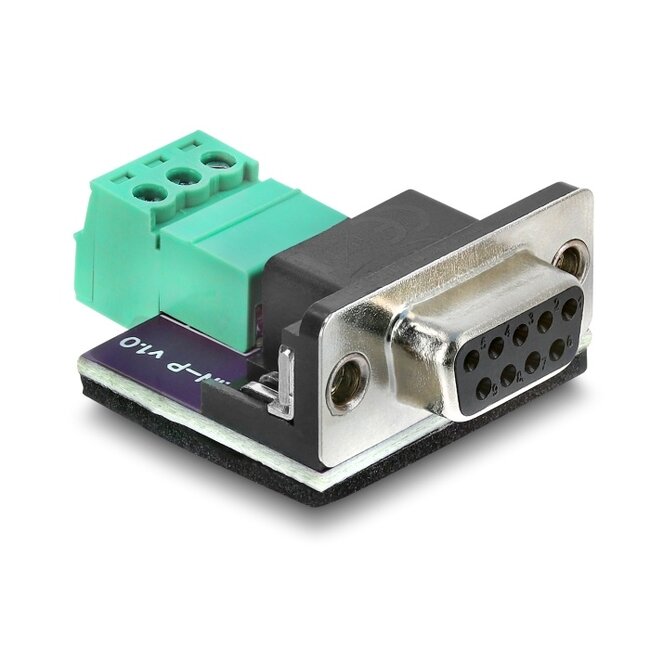

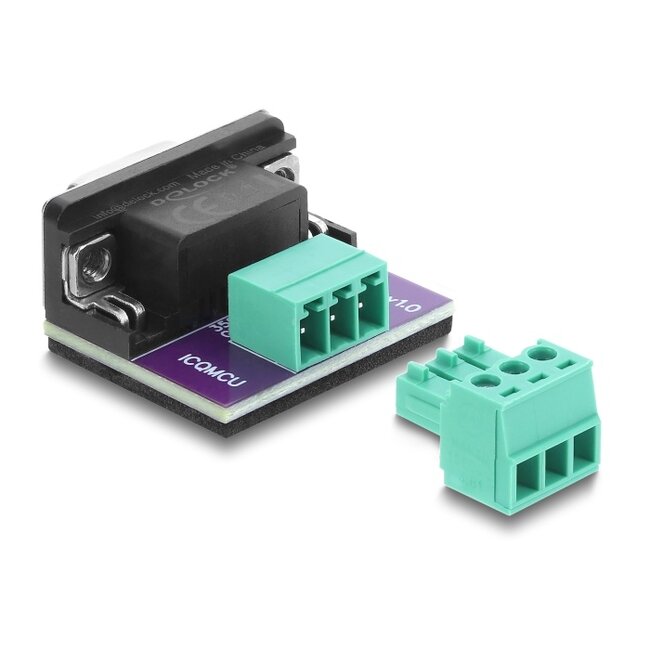

This adapter by Delock is suitable for PCAN, PLIN, and BabyLin applications. Strands with stripped ends can be connected to the terminal block.
Specification• Connectors:
1 x D-Sub 9 pin female
1 x 3 pin terminal block
• Pitch: 3.81 mm
• Useable for a cable gauge from 22 to 18 AWG
• Suitable for PCAN, PLIN and BabyLin
• Pin assignment:
pin 1 - pin 3 / 5 / 6 GND
pin 2 - pin 7 LIN
pin 3 - pin 9 VBAT
• Dimensions (LxWxH): ca. 37 x 28 x 16 mm
• Adapter
