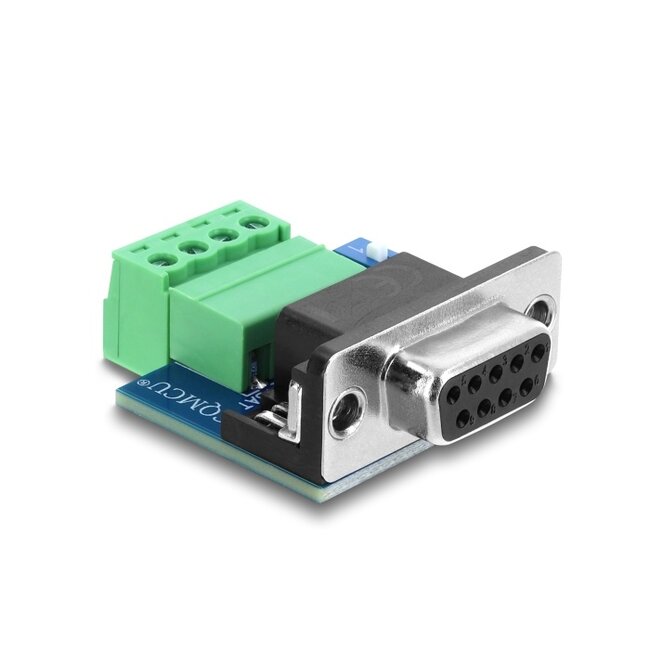

This adapter by Delock can be used for test setups, diagnostic applications, development environments, and connection to compatible KVASER ports. Stranded wires with stripped ends can be connected to the terminal block. If necessary, a 120-ohm terminating resistor can be enabled via the DIP switch. This resistor is connected between pin 2 (CAN L) and pin 7 (CAN H).
Specification• Connectors:
1 x D-Sub 9 pin female
1 x 4 pin terminal block
• Pitch: 3.81 mm
• Useable for a cable gauge from 22 to 18 AWG
• Suitable for KVASER ports
• Terminating resistor: 120 ohms, enableable via DIP switch
• Pin assignment:
pin 1 - pin 2 Can L
pin 2 - pin 7 Can H / LIN
pin 3 - pin 3 / 5 / 6 GND
pin 4 - pin 9 VBAT
• Dimensions (LxWxH): ca. 37 x 28 x 16 mm
• Adapter
