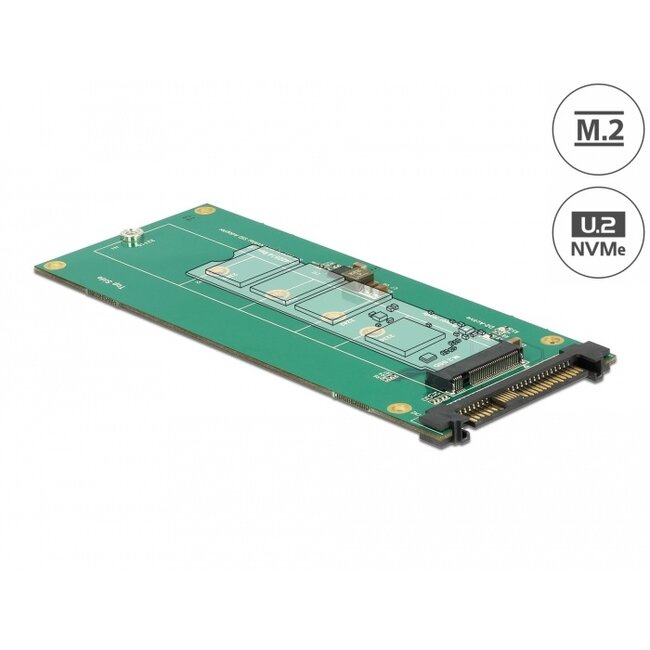

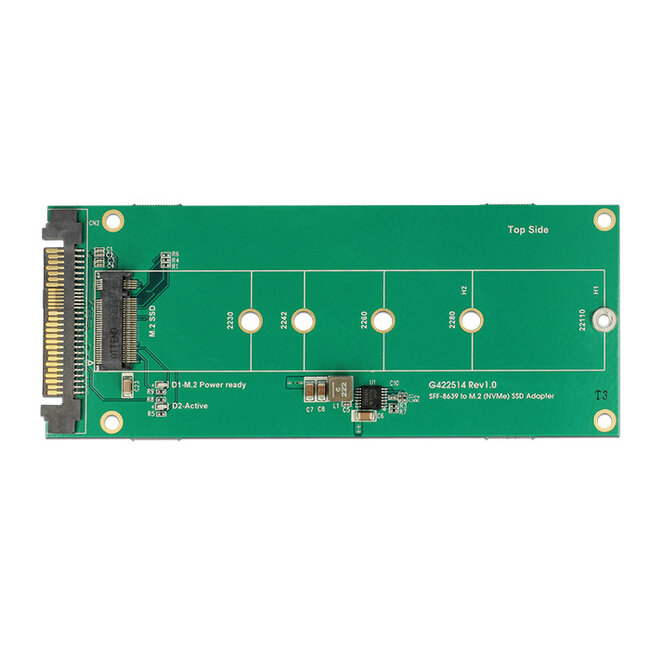

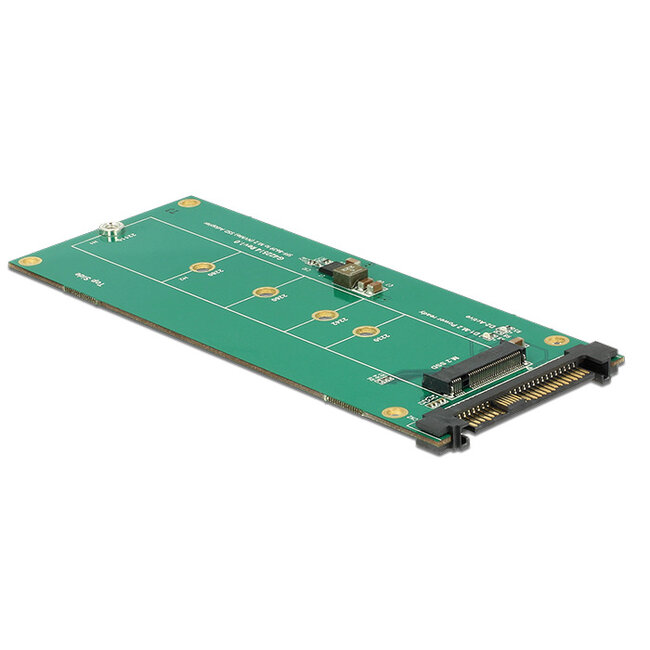

This converter by Delock enables the connection of a M.2 PCIe SSD in 22110, 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through the U.2 interface.
Specification• Connectors:
1 x U.2 SFF-8639 male
1 x 67 pin M.2 key M slot
• Interface: PCIe (2 or 4 lanes)
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with key M or key
B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-
sided assembled modules supported
• LEDs for power and activity
• Bootable
• Supports NVM Express (NVMe)
• Maximum output current: 4 A
• Over current protection, over heating protection, short circuit protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): ca. 130 x 52 x 6 mm
• Linux Kernel 3.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• A free U.2 SFF-8639 interface
Package content
• Converter

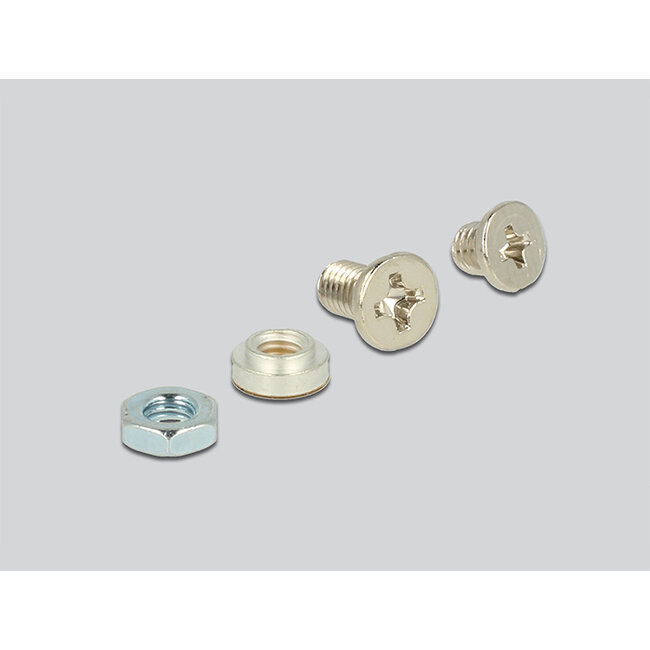

• Mounting material
• User manual
