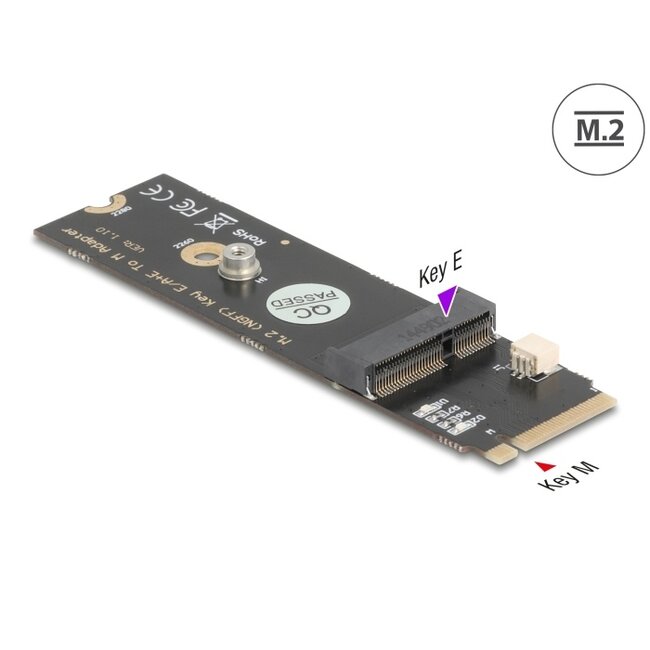

This converter by Delock converts the M.2 key M slot into a key E slot. It supports modules with USB and PCIe signal transfer.
Specification• Connectors:
1 x M.2 key M male
1 x M.2 key E slot
1 x 2 pin USB 2.0 pin header male
• Interface: PCIe Rev. 4.0 / USB
• Form factor: M.2 2280
• Supports modules in format 2230, 1630 and 3030 with key E or key A+E based on PCIe and USB
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Dimensions (LxWxH): ca. 80 x 22 x 5 mm
• A free M.2 key M slot based on PCIe
• Motherboard with a free 9 pin USB 2.0 pin header male for USB signals
Package content
• Converter

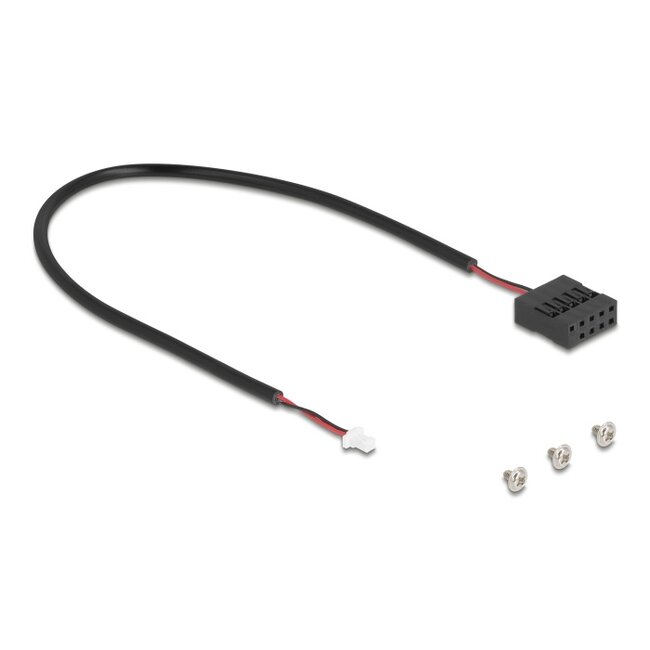

• USB cable, length ca. 35 cm
• Mounting material
• User manual
