This M.2 to PCIe x4 adapter by Delock enables it to use an M.2 module in a PCIe x4 slot. Due to the integrated cable, the M.2 module can be mounted in an easily accessible place.
Specification• Connectors:
1 x PCI Express x4 male
1 x M.2 key M slot
• Supports M.2 modules in format 2280, 2260 and 2242 with key M or key B+M based
on PCIe
• Supports PCI Express 3.0 protocol
• Bootable
• Colour: black
• Dimensions M.2 board (LxWxH): ca. 100 x 45 x 4 mm

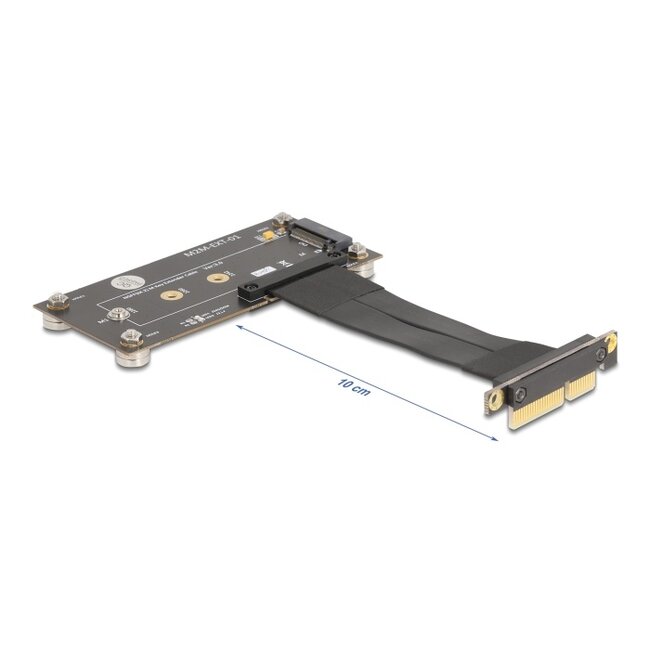

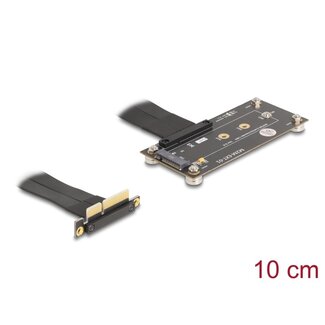

• Cable length: ca. 10 cm
• PC with one free PCI Express x4 / x8 / x16 / x32 slot

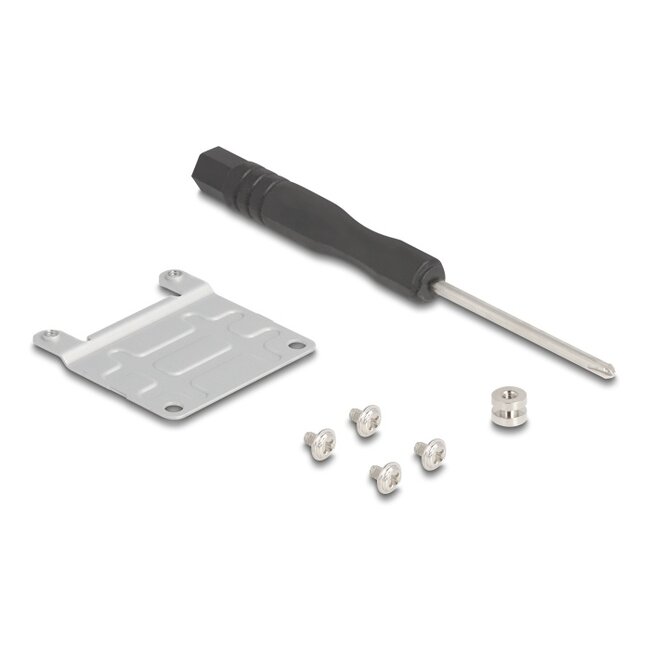

Package content
• Adapter cable
• Dust cover
• Spacer
• 4 x screws 1.9 x 3.0 mm
• Screwdriver
