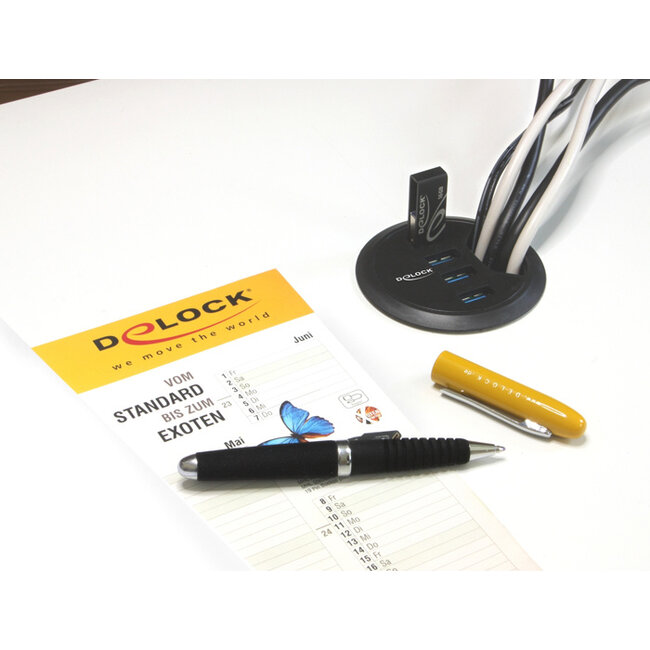

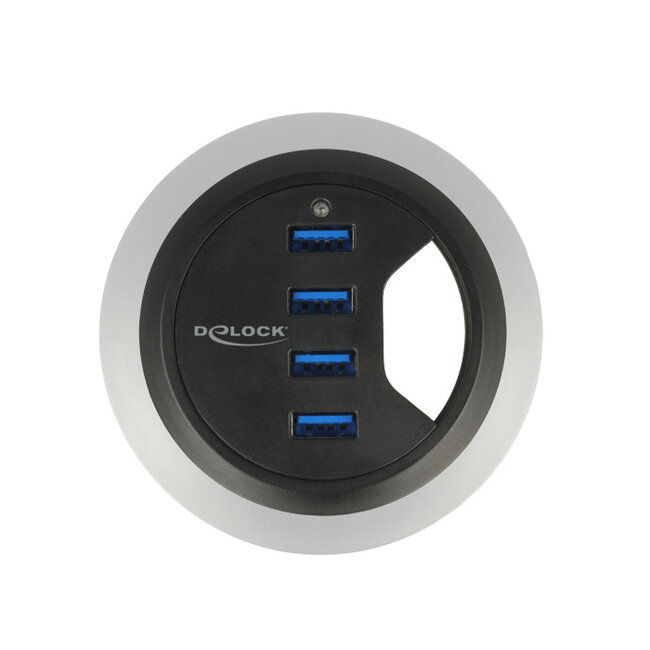

This hub by Delock can be installed into an existing cut-out of the desk with a diameter of 60 mm or 80 mm to lead through the cables for the monitor, keyboard and mouse. At the same time, the hub offers four USB Type-A female ports. The data transfer and power supply is guaranteed through one USB 5 Gbps Type-A male and one USB 2.0 Type-A male. The distance between the free connectors can be maximum 20 cm, because the two cables are connected with each other.

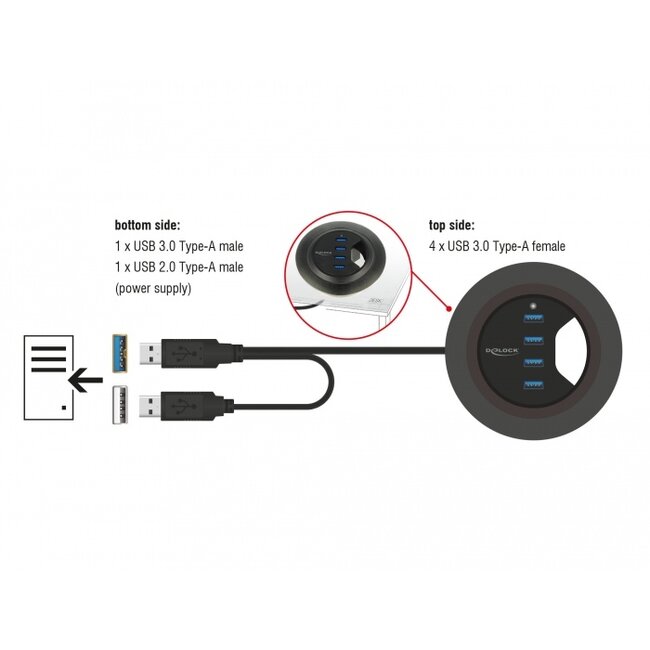

Specification• Connectors:
top side:
4 x USB 5 Gbps Type-A female
bottom side:
1 x USB 5 Gbps Type-A male
1 x USB 2.0 Type-A male (power supply)
• Chipset: VL813
• Data transfer rate up to 5 Gbps
• Mounting diameter: 60 mm / 80 mm
• Mounting depth: 35 mm
• Cable length: ca. 95 cm
• Plug & Play
• Linux Kernel 2.6 or above
• Mac OS 10.9 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• PC or laptop with two free USB Type-A ports
• 60 mm or 80 mm cut-out of the desk
Package content
• In-Desk Hub
• 60 mm ring
• 80 mm ring
• User manual
