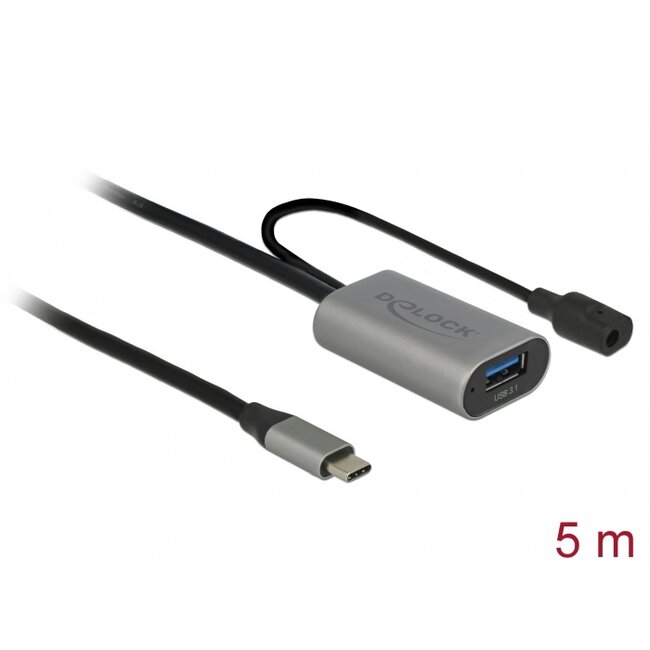

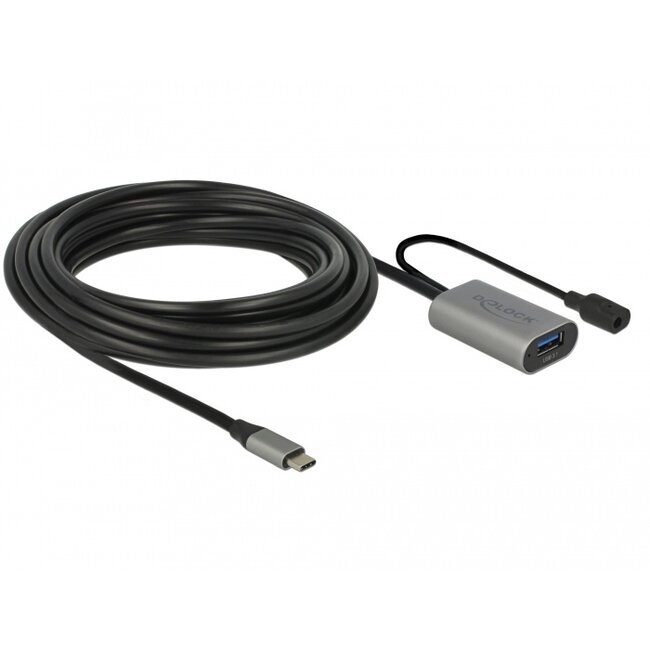

Description This active USB cable by Delock can be used to extend a USB connection by 5 m. The cable has an additional DC power socket to which an optional power supply can be connected. This ensures optimum data transmission even when used with powerful devices such as a 2.5″ hard drive.
Specification • Connectors:
1 x SuperSpeed USB (USB 3.1 Gen 1) USB Type-C™ male >
1 x SuperSpeed USB (USB 3.1 Gen 1) Type-A female
1 x DC jack
• Chipset: Genesys Logic GL3523
• DC jack for optional power supply
• Status LED
• Cable gauge:
Data cable 28 AWG data line / 22 AWG power line
Power cable 24 AWG
• Host = USB Type-C™; Device = USB Type-A
• Resistor: 5.1 kΩ
• Cable diameter:
data cable ca. 4.6 mm
power cable ca. 2.8 mm
• Data transfer rate up to SuperSpeed USB 5 Gbps
• Colour: black / grey
• Dimensions of housing (LxWxH): ca. 45.0 x 28.6 x 14.1 mm
• Cable length without connectors: ca. 5 m
Specification of power connector
• Input: 5 V / 2 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 1.35 mm
outside: ø ca. 3.5 mm
length: ca. 9.65 mm
System requirements • Mac OS 10.13.6 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC or laptop with a free USB Type-C™ port
Package content
• USB 3.1 Gen 1 cable
