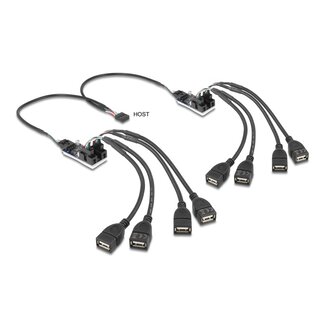

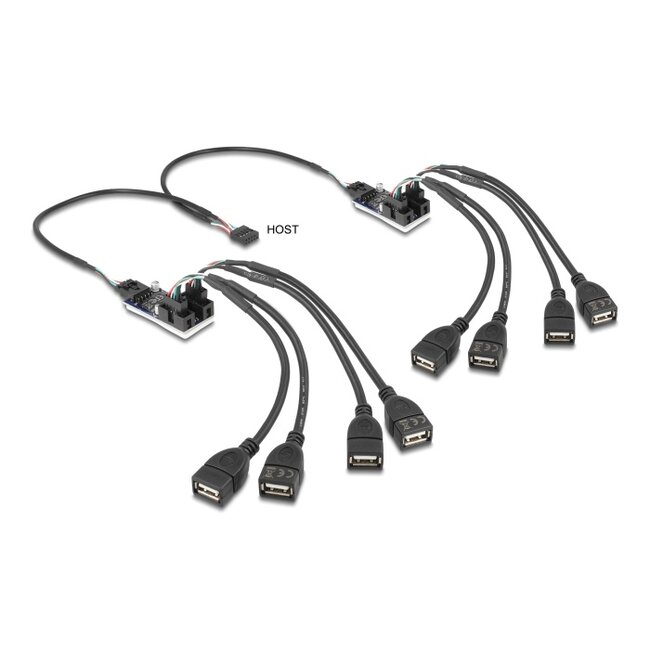

This USB hub by Delock can be connected to an internal USB port and provides up to eight USB 2.0 Type-A connectors. This hub therefore serves as a 1 to 8 extension.
Internal or external operation

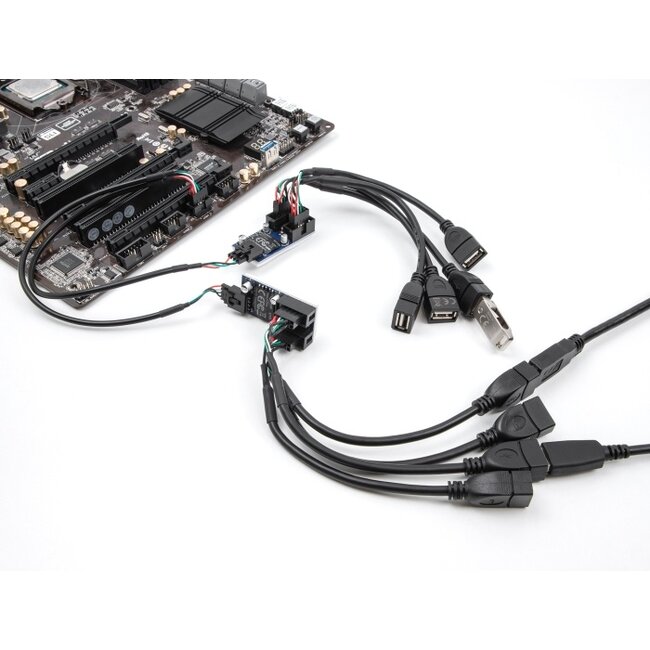

The hub can be used inside the PC housing or the USB connections can be routed to the outside, thus providing additional connections outside the PC housing.
• Connectors:
1 x 10 pin USB 2.0 pin header (2 x 4 pins connected)
8 x USB 2.0 Type-A female
• Chipset: Genesys Logic GL850G
• Data transfer rate up to 480 Mbps
• Pitch: 2.54 mm
• Bottom side with isolating, antislip pad
• Plug & Play
• Bootable
• Cable length: ca. 30 + 20 cm
• Linux Kernel 5.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• Motherboard with a free 9 pin USB 2.0 pin header male
Package content

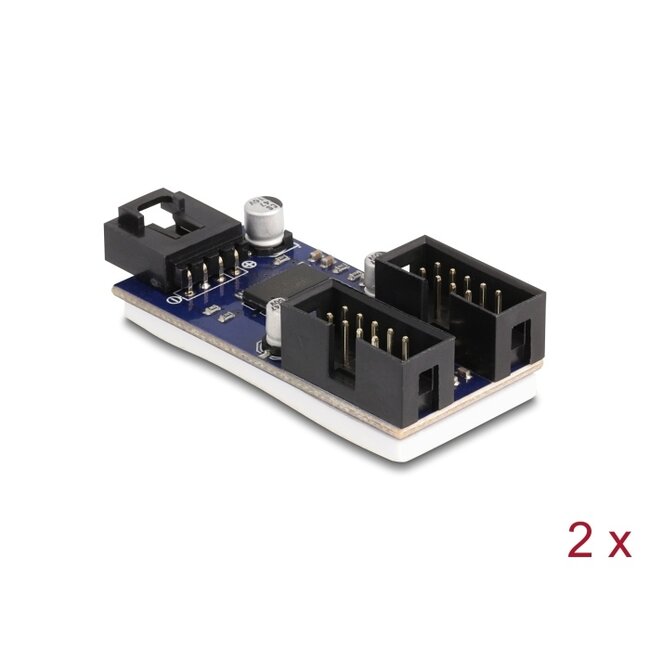

• 2 x Hub (61100)

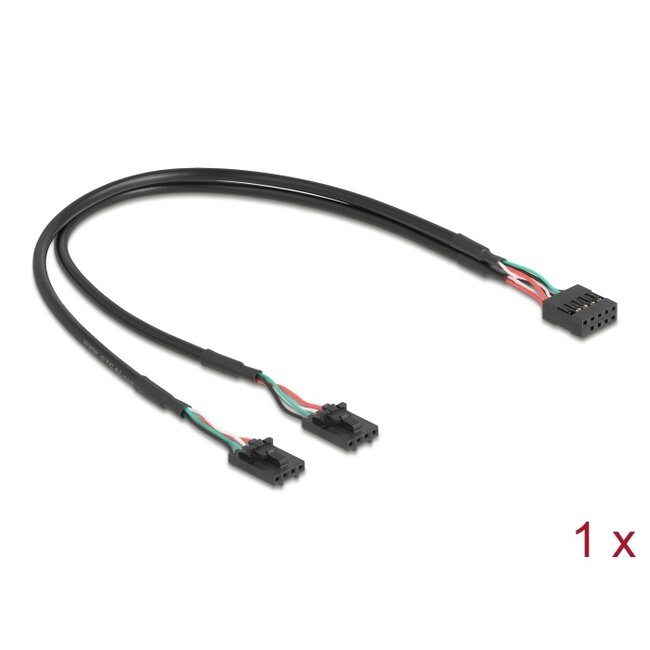

• 1 x cable USB 2.0 pin header female 2.54 mm 10 pin to 2 x USB 2.0 pin header female 2.54 mm 4 pin 30 cm (84513)

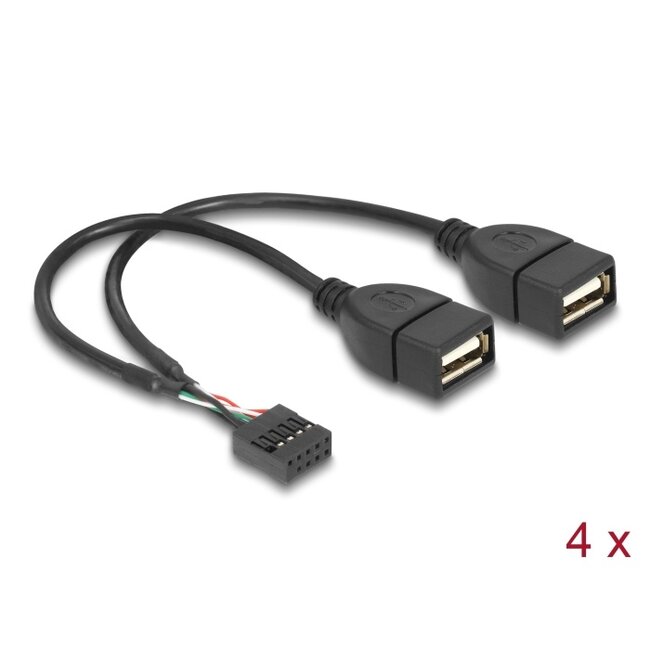

• 4 x USB cable pin header female to 2 x USB 2.0 Type-A female 20 cm (83292)
• User manual
