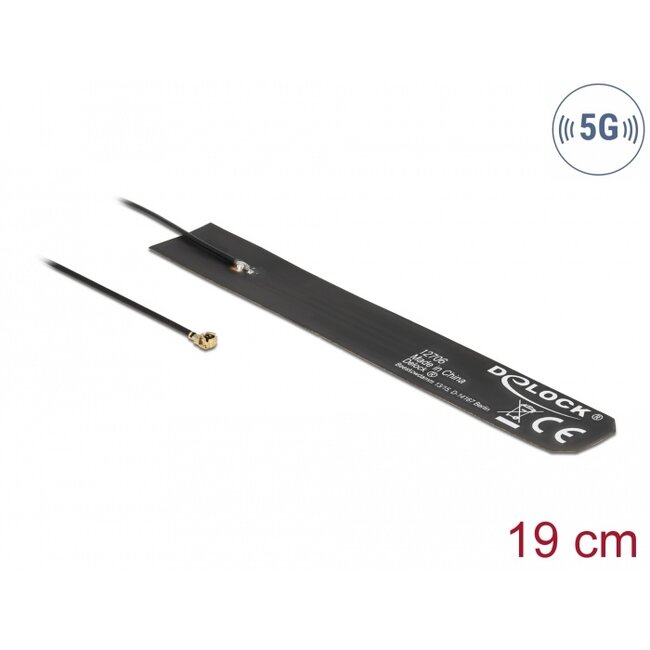

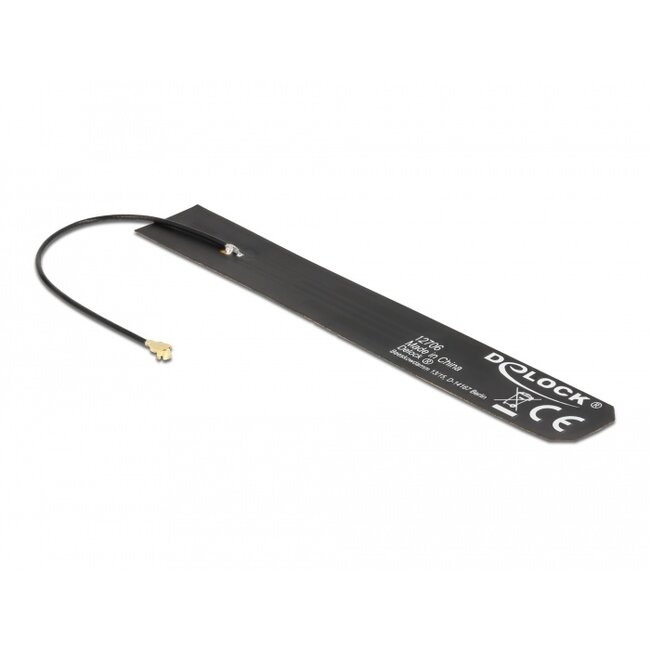

This antenna by Delock allows the usage of different 5G LTE bands inside. It is completely compatible to GSM, UMTS, 5G LTE, ZigBee, Z-Wave, NB-IoT, Dualband WLAN, Bluetooth, ISM, DECT and LoRa.
5G mobile radio standard
5G unlike its predecessors LTE (4G) and UMTS (3G) will use more and wider frequency spectrums.
The 5G standard promises more throughput, capacity and low latency.
• Connector: 1 x I-PEX Inc., MHF® I compatible plug
• Frequency range: 700 - 6000 MHz
• Antenna gain: 0 - 4 dBi
• VSWR: 2.0
• Impedance: 50 Ohm
• Polarisation: linear, vertical
• Mounting type: self-adhesive
• Operating temperature: -40 °C ~ 85 °C
• Housing material: FPC
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Dimensions (LxWxH): ca. 112.5 x 16.2 x 1.5 mm
• Length incl. connectors (L): ca. 19 cm
• Device with one free I-PEX Inc., MHF® I port
Package content
• Antenna
