Kenmerken:
Automatischec
Automatische AC spanningsregelaar en stabilisator (AVR)

Intelligente beveiliging tegen spanningspieken, overbelasting en kortsluiting
Hoorbaar en zichtbaar alarm bij stroomuitval

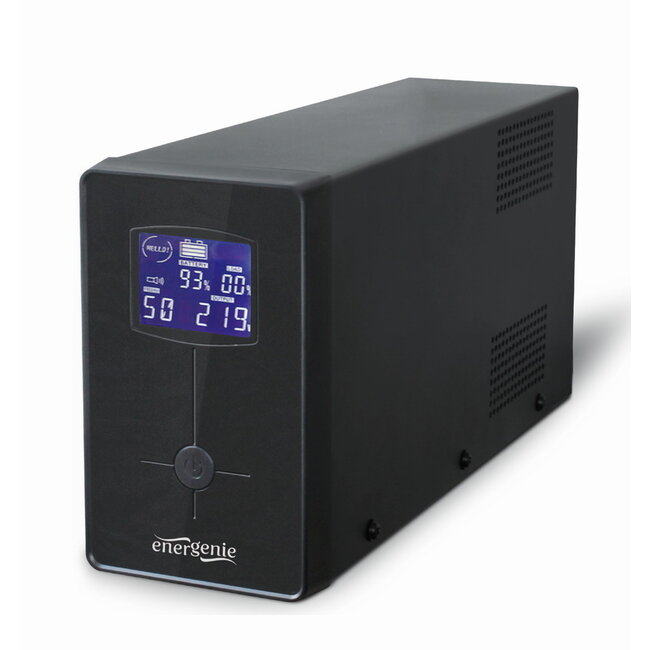

LCD statusindicatie
Interne batterij met bescherming tegen overladen of teveel ontladen
Specificaties:
Type: line interactive
Waveform: sine wave (AC mains), modified (square) sine wave (battery)
Input: 220 V AC ± 25%, 50 / 60 Hz ± 10%
Output: 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode)
Switching timeabout or less than 8 ms
Backup time: 8...20 mins (depends on the load)
Battery: sealed lead-acid 12 V DC / 7Ah
Charge time: up to 12 hours

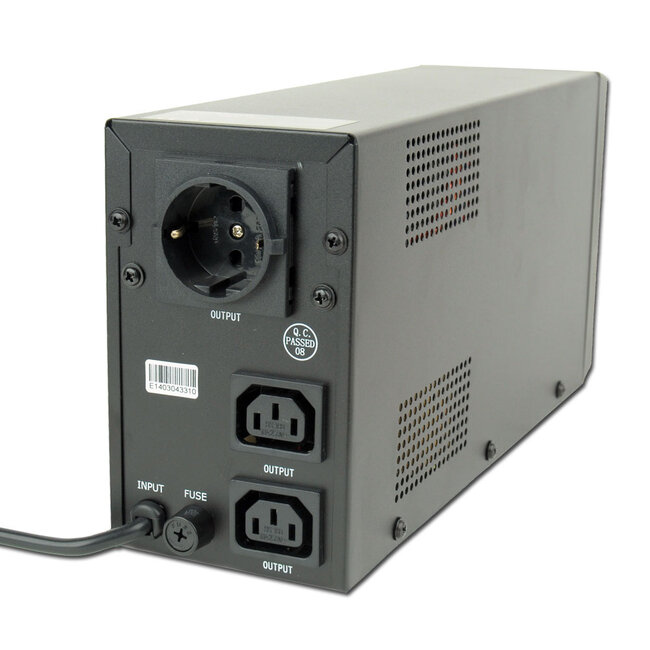

Output sockets: 2 pcs x C13, 1 pc x german Shuko
Operating conditions: 0°C ~ 40°C, at humidity 20 ~ 90 %RH non condensing
Power: 650 VA (390 W)
Charging current: up to 1.2 A
Noise: < 45 dB at 1 m distance
Dimensions: 340 x 95 x 165 mm
Product weight: 5.2 kg
''Cold-start'' function
Systemeisen:
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
Inhoud:
UPS
Netstroomkabel
Reserve zekeringen
Handleiding
