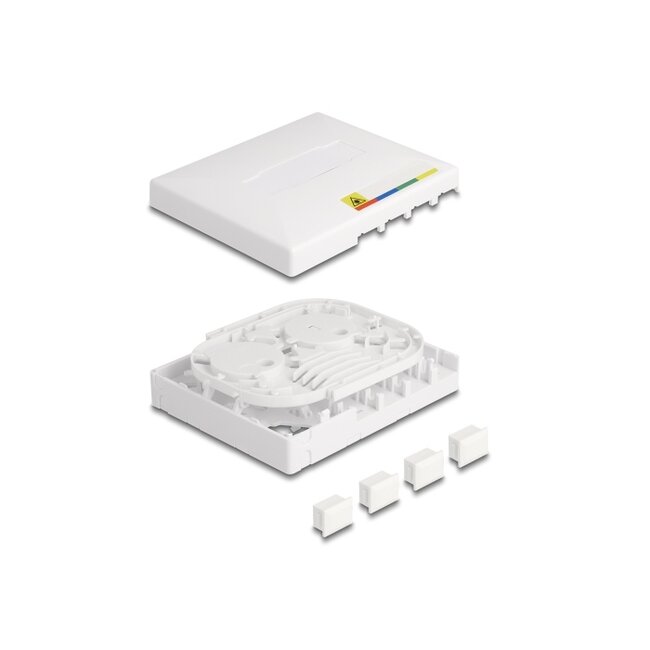

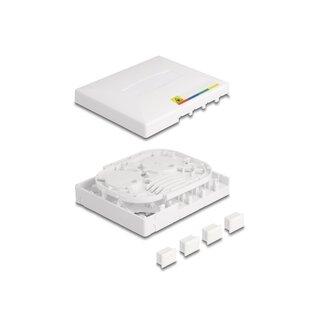

This optical fiber connection box for FTTH applications by Delock can be used for wall mounting and serves as a protective housing for optical cables and couplings. The box can accommodate up to 4 SC Simplex or LC Duplex couplings.
With splice tray
The integrated splice tray enables clean routing of the individual fibers for optimal transmission of lightwave signals. In addition, the cassette is perfect for mechanical splicing and fusion splicing.
• Optical fiber connection box for FTTH applications
• 4 slots for SC Simplex or LC Duplex couplings
• Wall mounting:
2 x mounting holes
Mounting hole diameter: ca. 3.5 mm
Pitch of screw hole: ca. 62 mm
• Cover with label tap
• With dust protection caps
• Colour: white
• Material: plastic
• Dimensions (LxWxH): ca. 100 x 80 x 26 mm
• Optical fiber connection box
• 4 x cable tie
• 4 x dust cover
• 4 x heat shrink splice protection
• 2 x screw
• 2 x dowel
