UC-T-62073 Lees meer.

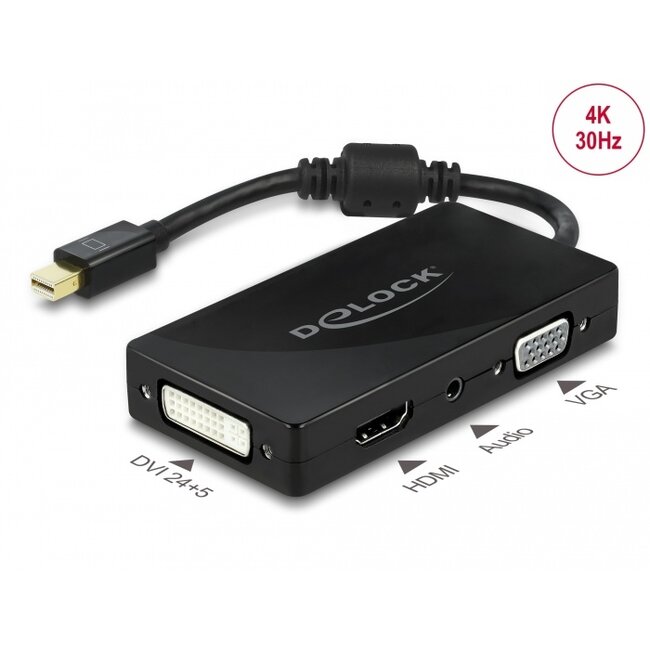

With this mini DisplayPort adapter by Delock, the system can be extended by a VGA, HDMI or DVI interface and various devices such as TV, projector, monitor etc. can be connected.
Dual video output
If only one monitor is connected to the HDMI output, a maximum resolution of 4K 30 Hz can be achieved.
It is possible to operate two monitors simultaneously, HDMI + VGA or DVI + VGA, with a maximum resolution of 1920 x 1080 @ 60 Hz per monitor. In addition, it is then possible to extend or mirror the desktop.
• Connectors:
1 x mini DisplayPort male >
1 x VGA female
1 x HDMI-A female
1 x DVI 24+5 female
1 x 3.5 mm 3 pin stereo jack female
1 x USB 2.0 Type Micro-B female (optional for power supply)
• Chipset: Explore EP9632C
• DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
• DVI-D (Single Link), VGA not wired
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Audio signal is transmitted only over HDMI
• HDMI specification:
• Resolution up to 3840 x 2160 @ 30 Hz (depending on the system and the connected
hardware)
• Supports 3D displays (1080p @ 60 Hz)
• VGA / DVI specification:
• Resolution up to 1920 x 1080 @ 60 Hz (depending on the system and the connected
hardware)
• 1 x ferrite core
• Cable length without connectors: ca. 15 cm
• Colour: black
• Linux Kernel 4.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• A free mini DisplayPort DP++ female
Package content
• Adapter mini DisplayPort to VGA / HDMI / DVI
