Description

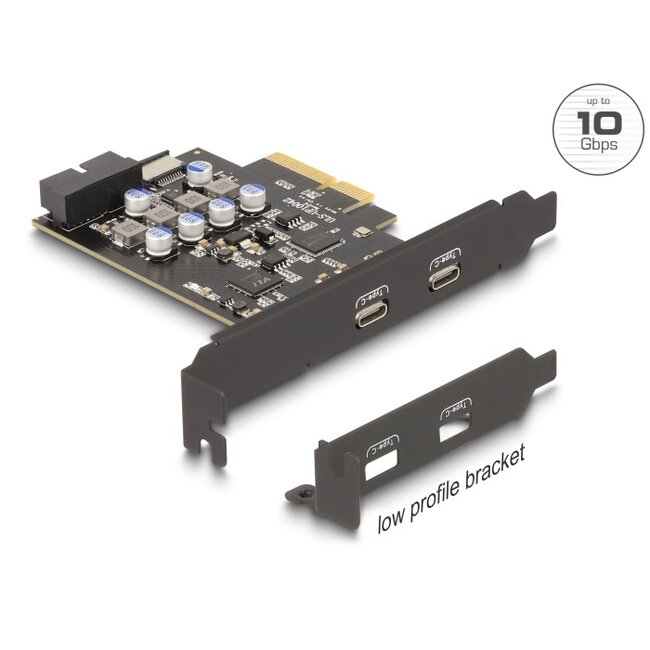

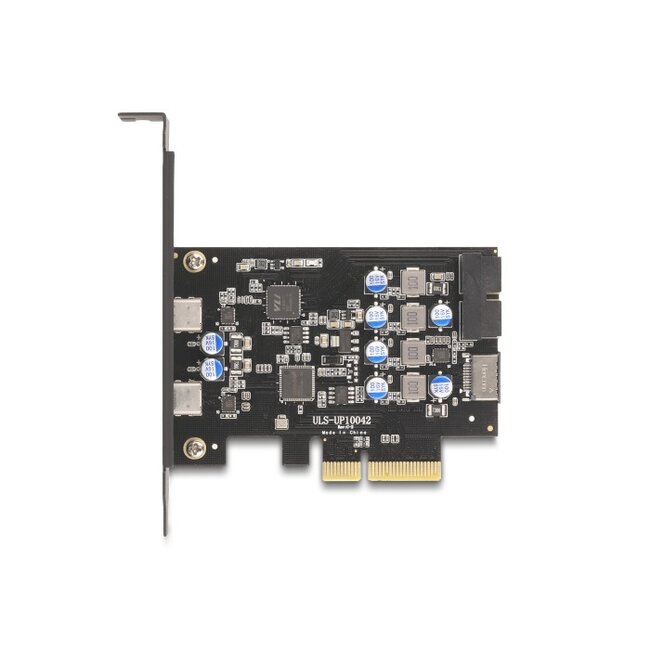

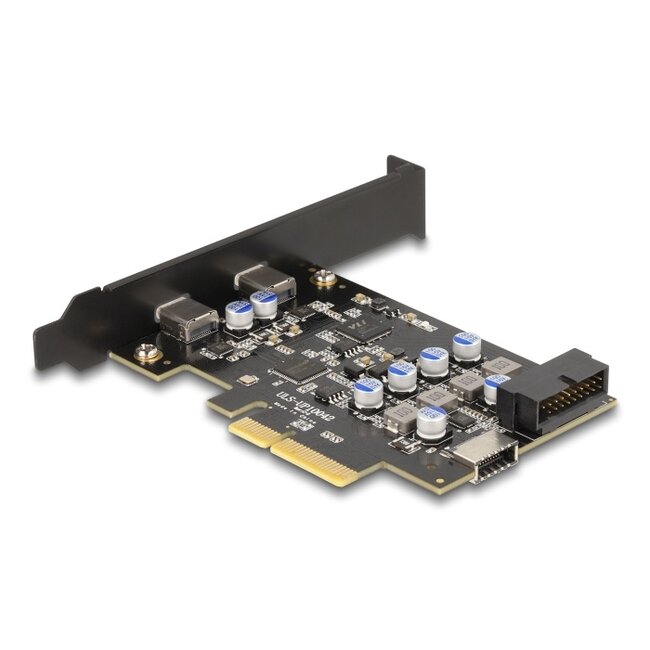

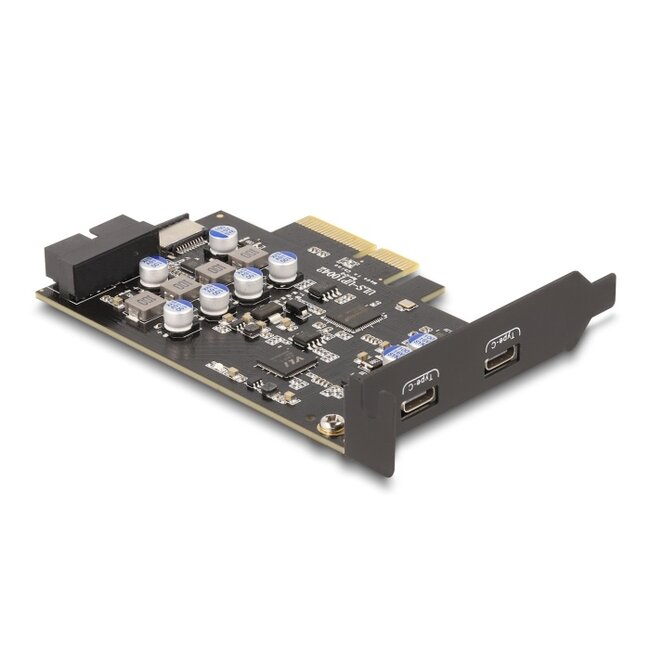

This PCI Express card by Delock expands the PC by two external USB-C™ ports as well as one internal 19 pin USB pin header male port and one USB Type-E key A female port.
Power supply via PCI Express interface
The card does not need an additional power supply. The power is supplied exclusively via the PCI Express interface.
Specification
• Connectors:
external:
2 x USB 10 Gbps USB Type-C™ female
internal:
1 x USB 10 Gbps type-E Key A female
1 x 19 pin USB 10 Gbps pin header male
1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142, VIA VL822
• Data transfer rate up to 10 Gbps
• Electrical power:
USB Type-C™: max. 15 watt (5 V / 3 A)
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.0
• Bootable
System requirements
• Linux Kernel 6.5 or above
• Windows 10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Package content
• PCI Express card
• Low profile bracket
• User manual
